Đầu dò báo khói tia chiếu NOHMI FDGJ 203-D-X (Bao gồm 01 đầu thu, 01 phát)

Trang Chủ >> Báo cháy-Báo trộm >> Báo cháy NOHMI >> Đầu dò báo khói tia chiếu NOHMI FDGJ 203-D-X (Bao gồm 01 đầu thu, 01 phát)
Mã số:13607121

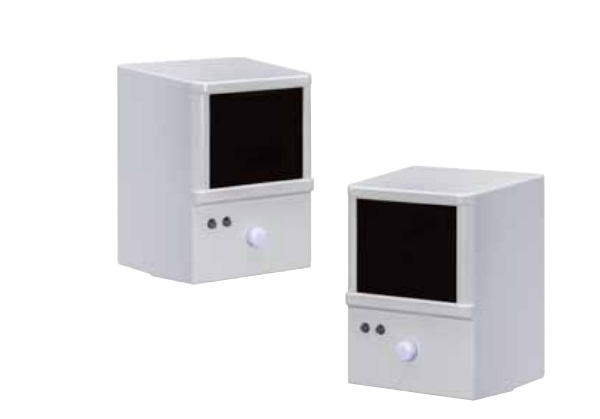

Đầu dò báo khói tia chiếu NOHMI FDGJ 203-D-X (Bao gồm 01 đầu thu, 01 phát)

Đầu dò báo khói tia chiếu NOHMI FDGJ 203-D-X (Bao gồm 01 đầu thu, 01 phát)

- 50% size reduction from previous model.

- Wide and high coverage within 100m distance.

- Sensitivity drift compensation for contamination or a slight shift in the optical system.

- Light synchronized system to prevent false alarms.

- Simple optical axis setting.

- Optional remote test switch for easy maintenance.

- No special means is required for installation.

Đặc tính kỹ thuật

Model  FDGJ 203-D-X
Type Conventional
Monitoring Distance 5 to 100 m
Distance between pairs of detectors  14m or less
Maximum applicable ceiling height 20m
Vertical position of beam path Higher than 80% of ceiling height
Horizontal position of beam path Between 0.6m and 7.0m from any portion of the area
Circuit voltage  Fire alarm signal circuit (L-C): 24VDC, 75mA
Trouble signal circuit (KT1-KT2): 24VDC, 75mA
Remote test circuit (SH1-SH2): 24VDC, 5mA
Power consumption  Fire alarm signal circuit (L-C): 600 μA
Trouble signal circuit (KT1-KT2): 1μA
Remote test circuit (SH1-SH2): 24VDC, 5mA
Status indicator Light Transmitter: Green LED (Power-on)    Red LED (Testing)
Light Receiver: Red LED (Fire alarm)      Yellow LED (Trouble)
Ambient temperature -10ºC to 50ºC
Light beam path angle adjustment range Vertical: 20º
Horizontal: 20º
Materials Cover and front plate: Polycarbonate resin;Base: Steel plate
Maximum number of devices supported 2 sets/detector circuit
Weight Light Transmitter: approx. 0.75kg
Light Receiver: approx. 0.75kg
Dimension 142 x 107 x 95 mm

- Bảo hành: 12 tháng.

Giá: Vui lòng gọi
