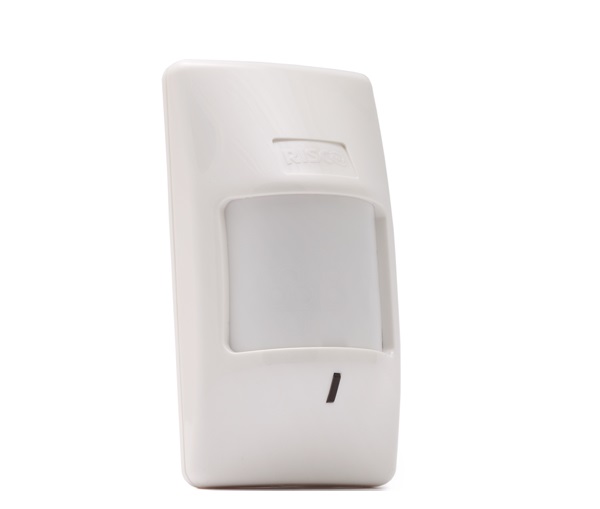

Đầu báo động RISCO Zodiac QUAD RK410RQ

Đầu báo động RISCO Zodiac QUAD RK410RQ

- Full 12x12m (40”x40”) coverage

- Real Quad PIR sensor element

- Improved false alarm immunity

- High RFI immunity above 20V/m

- Free swivel for wall/ceiling mounting

- Selectable pulse count

- White light protection

Technical Specifications

- Pet immunity: rodents

- Operating voltage 9 to 16VDC regulated

- Current consumption: 12mA

- Alarm Contacts: NC, 100mA, 24 VDC maximum

- Tamper Contacts: NC, 100mA, 24 VDC maximum

- Alarm Time: 2.2 seconds minimum

- Adjustable Pulse Count: 1,2,3

- Temperature Compensation: Automatic, thermistor controlled

- Swivel adjustment: Horizontal ±25°, Vertical +5°, -20°

- Optical filtering: White light protection, pigmented lens

- Optional long range lens (RL07H0

- RF Immunity (10 MHz to 1GHz): 25 V/m

- Operating Temperature: -10°C to 50°C (14°F to 122°F)

- Storage Temperature: -20°C to 55°C (-4°F to 131°F)

- Dimensions: 107 x 58 x 39mm (4.2 x 2.3 x 1.5in)

- Bảo hành: 12 tháng.
