0916 287 068 Công tắc cảm ứng hiện diện THEBEN theRonda P360-100 M UP WH

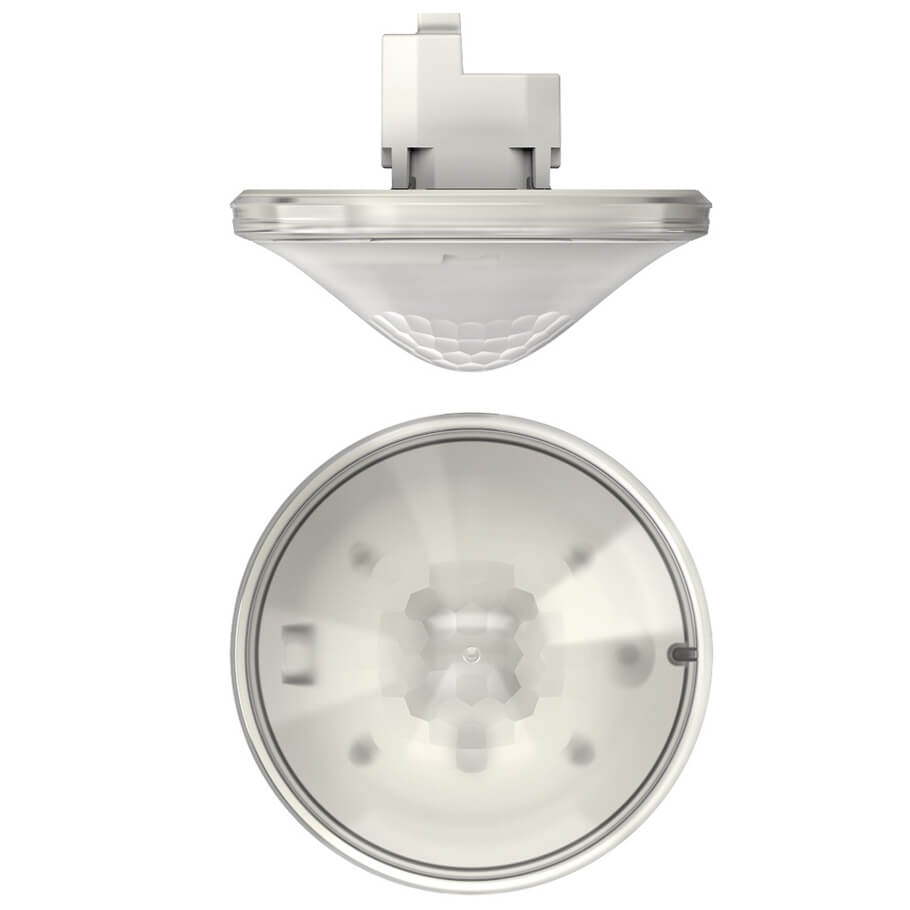

Công tắc cảm ứng hiện diện THEBEN theRonda P360-100 M UP WH
- Passive infrared presence detector for ceiling mounting.
- Round detection area 360°, up to Ø 24 m (452 m²).
- Automatic presence- and brightness-dependent control for lighting
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs.
- Channel A, light: Relay, 230V.
- Choice of fully or semi-automatic operation.
- Adjustable brightness switching value, teach-in function.
- Reduction of switch-off delay time in the event of short presence (brief-presence).
- Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch.
- Pulse function for staircase light time switch.
- Switch-on delay and switch-off delay configurable.
- Sensitivity adjustable.
- Detection area can be limited using cover clip.
- Ready for immediate use due to factory preset.
- Test mode for checking function and detection area.
- Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other.
- Ceiling installation in flush-mounted socket.
- Ceiling installation also possible with surface-mounted frame.
- User remote control theSenda S, management remote control SendoPro (optional).
Đặc tính kỹ thuật
| Model | theRonda P360-100 M UP WH |
| Operating voltage | 110 - 230 VAC |
| Frequency | 50 - 60Hz |
| Installation height | 2 – 3 m |
| Minimum height | > 1,7m |
| Installation type | Ceiling installation |
| Power consumption | ~0,15W |
| Light measurement | Mixed light measurement |
| Setting range brightness | 30 – 3000 lx |
| Light switch-off delay | 10s-60 min |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Incandescent/ halogen lamp load | 2300W |
| Compact and flourescent lamps | 1150 VA (cos φ = 0,5) |
| Inrush current | max. 800 A / 200 µs |
| LED lamp < 2 W | 60W |
| LED lamp 2-8 W | 180W |
| LED lamp > 8 W | 200W |
| Type of connection | Screw terminals |
| Max. cable cross section | max. 2 x 2,5 mm² |
| Size of concealed housing | Ø 55 mm (NIS, PMI) |
| Ambient temperature | -15°C … +50°C |
| Type of protection | IP54 (when fitted) |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
