Công tắc cảm ứng chuyển động THEBEN theLuxa P220 BK

Trang Chủ >> Báo cháy-Báo trộm >> Công tắc cảm ứng THEBEN >> Công tắc cảm ứng chuyển động THEBEN theLuxa P220 BK
Mã số:13130051

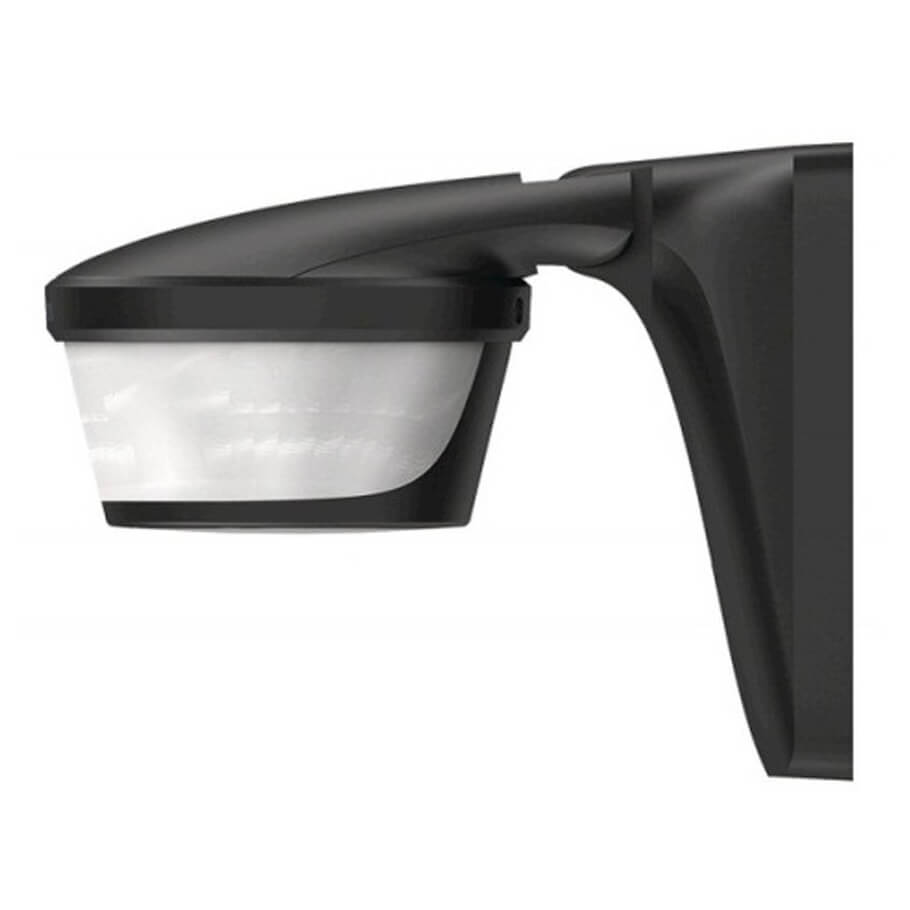

Công tắc cảm ứng chuyển động THEBEN theLuxa P220 BK

Công tắc cảm ứng chuyển động THEBEN theLuxa P220 BK

- Motion detector (PIR).

- Automatic lighting control based on presence and brightness.

- 220º detection angle.

- For outdoor use.

- For installation on walls and ceilings.

- For larger, commercial outdoors properties such as offices, public buildings, hotels, schools, car parks and warehouses.

- Adjustable brightness switching value and switch-off delay.

- Sensitivity can be reduced to limit detection area.

- Area limit via lens attachment.

- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs.

- Teach-in of current brightness value possible.

- Pulse function.

- Test function for checking detection area.

- Installation on flush-mounted socket possible (60 mm).

- Single-handed plug-in installation.

- Instant start-up possible via factory preset.

- Controls are place protected.

- Terminal for protective earth conductor.

- Spacer included in delivery.

Đặc tính kỹ thuật

Model theLuxa P220 BK
Operating voltage 230 VAC
Frequency 50Hz
Stand-by consumption ~0,3W
Light measurement Mixed light measurement
Number of channels 1
Installation type Wall and ceiling installation
Setting range brightness 5 – 1000 lx
Switching capacity light 10 A (at 230 V AC, cos φ = 1), 10 AX (at 230 V AC, cos φ = 0.3)
Detection angle 220º
Installation height 2 – 4 m
Light switch-off delay 1 s-20 min
Incandescent lamp load 2300W
Fluorescent lamp load (conventional) parallel-corrected 1300 VA 140 µF
Energy saving lamps 300W
LED lamp < 2 W 60W
LED lamp 2-8 W 180W
LED lamp > 8 W 200W
Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Ambient temperature -25ºC … +45ºC
Protection class II
Type of protection IP55

- Hãng sản xuất THEBEN của Đức.

- Bảo hành: 12 tháng.

Giá: 2.288.000 VND
