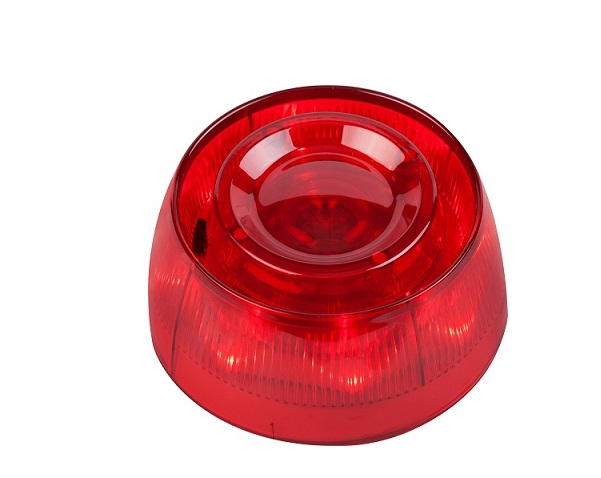

Còi báo cháy có đèn chớp địa chỉ TELETEK SensoIRIS WS
- SensoIRIS WS is аn addressable Wall Mount Sounder and Strobe, designed for installing in addressable fire alarm systems supporting TTE communication protocol.
- The device is powered on from the panel and can be controlled via the communication protocol. SensoIRIS WS is compatible with fire bases B124 for ceiling or wall mounting and WSB IP65 for wall mounting.
- Selectable sound level-LOW (80-88dB)* and HIGH (92-98dB)*.
- 32 sound types selectable from the panel.
- Piezo sounder.
- Loop synchronization.
- Loop powered.
- Transparent plastic case.
- EN54 – 3 certified.
- Version with built-in isolator available – SensoIRIS WS IS.
Đặc tính kỹ thuật
| Model |
|
|
| Operating Voltage Range | 15 – 32VDC (Nom. 27VDC) | |
| Nominal consumption (stand-by) | <500μА@27VDC | |
| Wire Gauge for terminals | 2.5mm² | |
| Operating temperature | -10°C to +50°C | |
| Protection | IP43C (mounted on B124) IP65 (mounted on WSB IP65) |
|
| Weight | 183g | |
| Dimensions (without base) | 116x55mm |
- Bảo hành: 12 tháng.
