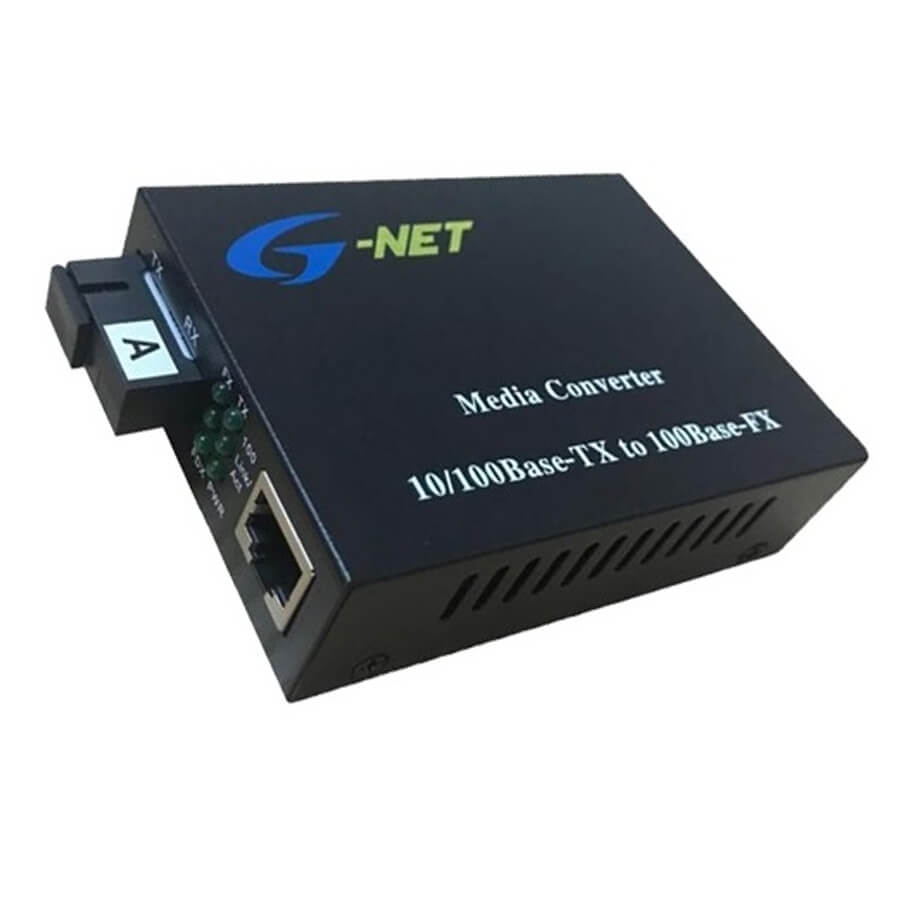

Chuyển đổi quang điện Media Converter G-NET HHD-120G-100
- G-NET HHD-120G-100 là bộ chuyển đổi quang điện 2 sợi quang, tốc độ 10/100Mbps.
- Khoảng cách truyền dẫn: 100km.
- Bước sóng: 1310nm.
- Đầu nối: SC.
- Tốc độ truyền: 10/100Mbps.
Đặc tính kỹ thuật
| Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3x flow control |
| Switch Properties | MAC Address Table: 4K Packet Buffer Size: 256K Switching mode: Store and Forward Conversion mode: Medium conversion Delay time: <10μs Bit error rate: <1/1000000000 |
| Network Medium | 10BASE-T: Cat3, 4, 5 UTP (≤100 meters) 100BASE-TX: Cat5 UTP or better (≤100 meters) |
| Flow Control | Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard |
| Fiber Port | 1x10/100Base-FX Fiber port |
| Ethernet Port | 1x10/100Base-TX RJ45 Port |
| Transmission Distance | 100km |
| LED Indicator | POWER (power) FX LINK (fiber link action), TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action) FDX(Ethernet interface mode indicator ON:Full duplex/OFF:Half duplex) |
| Power | External Power Adapter Input Voltage: AC100-240V, 50/60Hz Output Voltage: DC 5V 2A Max Power consumption: 5W |
| Mechanical | Case: Metal Cooling way: Natural cooling, fanless design Installation: Desktop or Wall Mounted Dimension (L x W x H): 93 x 70 x 26 mm |
| Environmental | Working Temperature: 0°C to 50°C Storage Temperature: -20°C to 70°C Working Humidity: 10%~90% (non-condensing) Storage Humidity: 5% ~ 90% (non-condensing) |
| MTBF | 100,000 hours |
- Bảo hành: 24 tháng.
