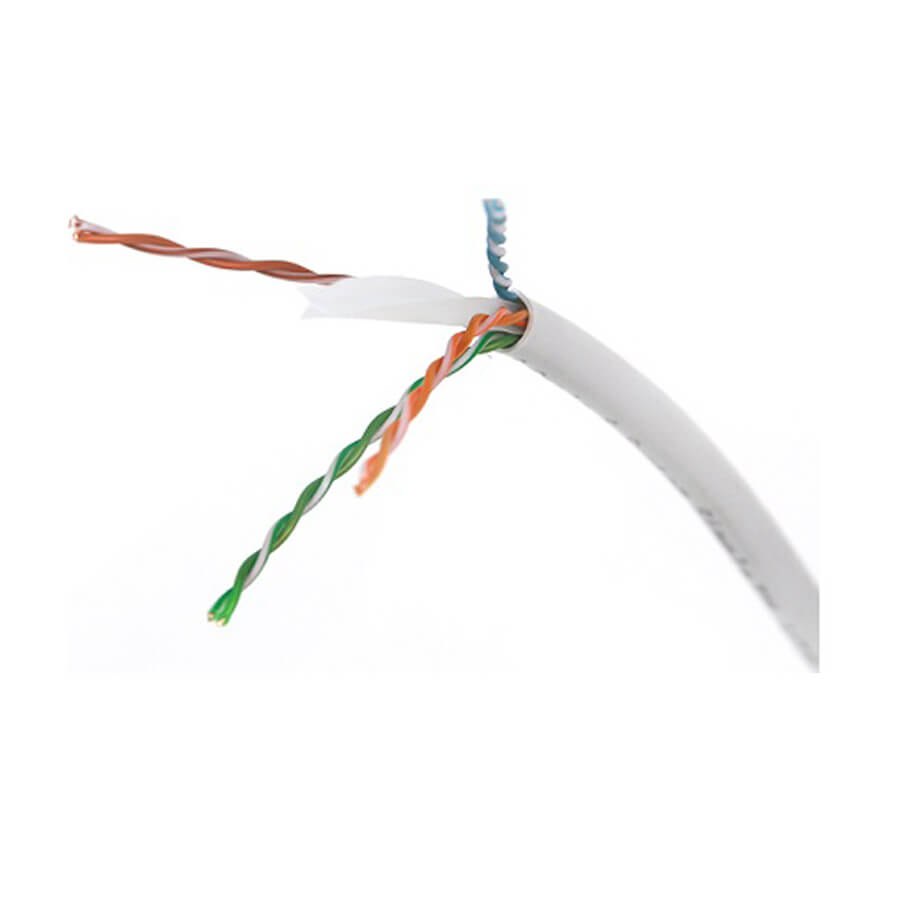

Cáp mạng 4 đôi LS CAT6 U/UTP copper (UTP-G-C6G-E1VN-X 0.5X004P/XX)
Part Number: UTP-G-C6G-E1VN-X 0.5X004P/XX
- Cáp mạng U/UTP CAT6, 24AWG, lõi đồng đặc, 4 đôi, vỏ PVC, CMX, XX.
- Kích thước: 305 m/box.
- Màu sắc: Tùy chọn.
Features
- ETL, EC Verified, UL Listed.
- Capable of handling full broadband and baseband video signals.
- High flame retardant grade of the cable (Plenum Cable).
- Comply with ANSI/TIA-568-C.2.
- Specialized print legend contains footage or metric or dual marking.
- Reelex & Reel in a Box is standard, so wire pulls through box opening for easy access.
- RoHS compliant.
Application
- Horizontal Distribution & Backbone Cabling.
- 4/16Mbps Token Ring (IEEE 802.5).
- 10/100/1000 BASE-T (IEEE 802.3).
- 155Mbps ATM.
- 100Mbps TP-PMD.
- ISDN, ADSL.
- ATM LAN 1.2G.
Techinical
| DC Resistance | ≤ 9.38 Ω/100m |
| DC Resistance Unbalance | ≤ 5.00 % |
| Mutual Capacitance | ≤ 5.60 nF/100m |
| Capacitance Unbalance (Pair to Ground) | ≤ 330 pF/100m |
| Insulation Resistance | ≥ 500 MΩ-100m |
| Dielectric Strength | 2.5 / 2 DC kV/sec |
| Impedance (Characteristic mean) | 100Ω ± 15% (1 ≤ f ≤ 250MHz) |
| Return Loss (dB/100m) | ≥ 20 + 5 * log(freq) , 1 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz |
| Attenuation (Insertion Loss) (dB/100m) | ≤ 1.808*√(freq) + 0.017*(freq) + 0.20/√(freq), 1 ~ 250 MHz |
| NEXT Loss (dB/100m) | ≥ 44.3 – 15*log(freq/100) , 1 ~ 250MHz |
| Power sum NEXT Loss (dB/100m) | ≥ 42.3 – 15*log(freq/100) , 1 ~ 250MHz |
| ELFEXT Loss (dB/100m) | ≥ 27.8 – 20*log(freq/100) , 1 ~ 250MHz |
| Power sum ELFEXT Loss (dB/100m) | ≥ 24.8 – 20*log(freq/100) , 1 ~ 250MHz |
| Propagation Delay (ns/100m) | ≤ 534 + 36 / √(Freq) , 1 ~ 250MHz |
| Propagation Delay Skew (ns/100m) | ≤ 45 |
