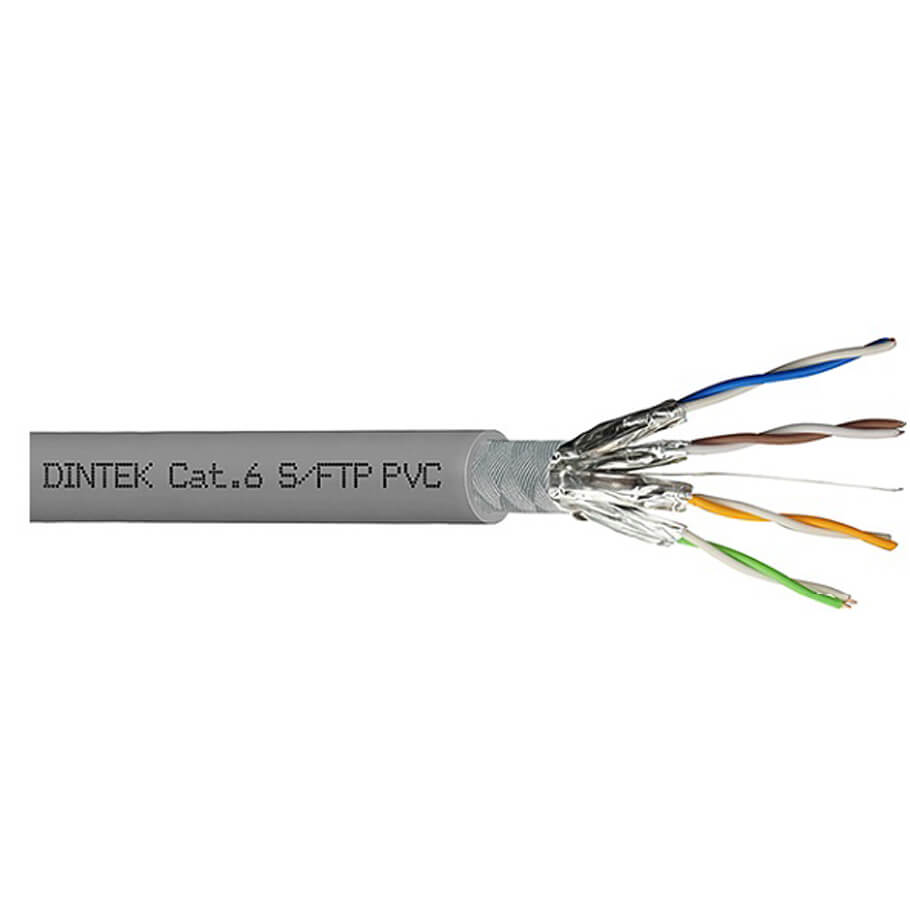

Cáp mạng Dintek CAT.6 S/FTP (1107-04009, 305 mét/cuộn)
Part Number: 1107-04009
- Cáp mạng CAT.6 S/FTP Dintek 4-pairs, 23AWG, cuộn 305m trên rulo nhựa.
- Bọc nhôm chống nhiễu từng đôi cáp, bọc thêm lưới đồng ở ngoài.
Features
- Capable of handling the latest versions of Power over Ethernet
- Conductor sizes for PowerMAX500TM Cat.6 set at 23AWG
- PVC jacketed 4 pair telecommunications cable
- Successful transmission at 500Mhz up to a length of 70Mtrs
- EZI-Pull 305Mtr Reel for trouble free installation
- Foil wraps act to prevent crosstalk between twisted pairs
- Braided shield helps prevent EMI/RFI & AXT from entering cable
Application
- Horizontal and backbone cable
- 1000BASE-TX Gigabit Ethernet/1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet/10BASE-TX Ethernet
- 100 Mbps TP-PMD/100VG-AnyLAN
- Broadband Video/Voice/T1/ISDN
- 10Gbit (500Mhz) Transmission up to length of 70Mtrs
Standards Conformance
- Performance - ANSI/TIA 568.2-D Cat.6/ISO/IEC 11801
- Structural - EN 13501-6:2014 | IEC 61156-5 | EN 50288-5-1
- PoE capability - IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)
- Environmental - Conforms to RoHS and REACH Directives
- Flame testing - EN 60332-1-2
Independent Certification
- ETL Certification according to ANSI/TIA-568.2-D Cat.6
- UL Cable Fire Rating - CM as per UL 444
Thông số kỹ thuật
| Construction | |
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 23AWG |
| Strand Type | Solid Core |
| No. Of Pairs | 4P |
| Insulation | |
| Material | Polyethylene |
| Thickness | 0.43mm ± 0.03mm |
| Diameter | 1.42mm ± 0.1mm |
| Colors | Blue/White | Orange/White | Green/White | Brown/White |
| Pair Foil Wrap | Aluminum-mylar tape |
| Jacket | |
| Material | PVC |
| Thickness | 0.5 mm ± 0.05mm |
| Diameter | 7.30mm ± 0.3mm |
| Color | Gray |
| Jacket Rating | CM |
| Foil Shield | None |
| Braided Shield | Tinned copper braid |
| Physical Ranges | |
| Jacket | |
| Cold Bend Test | -20 ± 2°C x 4hrs no crack |
| Min. Bending Radius | Min. 4 x Cable Diameter |
| Max. Pulling Tension | 10Kg / 25 lbs |
| Installation Temperature | 0°C to +50°C |
| Operating Temperature | -20°C to +60°C |
| Electrical | |
| Conductor Resistance | Max. 9.38 Ω/100m at 20°C |
| DC Resistance Unbalance | Max. 2% at 20°C |
| Pair-to-Ground Capacitance Unbalance | Max. 1600 pF/km at 1 kHz |
| Dielectric Strength of Insulation | DC 1.0 KV for 1 min |
| Insulation Resistance Test (500V) | Min. 5000 MΩ/Km at at 20℃ |
| Mutual Capacitance | Max. 5600 pF/100m at 1 kHz |
| Impedance 1 ~ 250Mhz | 100Ω ± 5% |
| Nominal Velocity Of Propagation | 78% |
