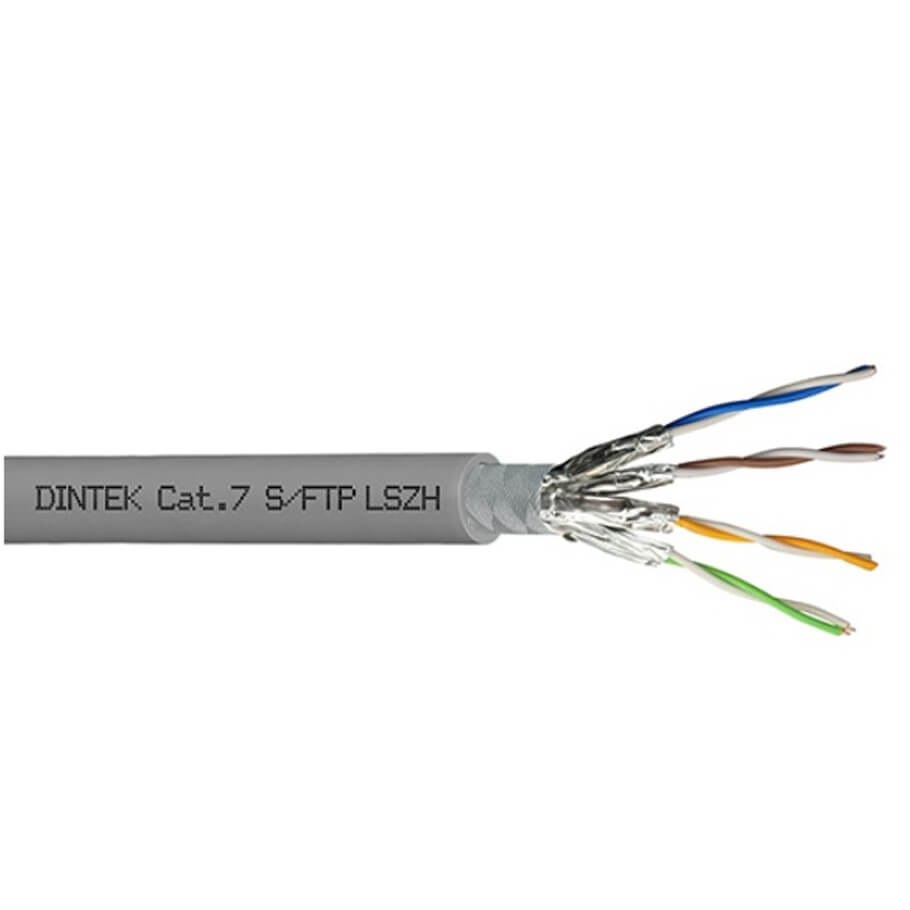

Cáp mạng Dintek Cat.7 S/FTP (1105-05007)
Features
- Capable of handling the latest versions of Power over Ethernet
- Conductor sizes for PowerMAX7TM Cat.7 set at 23AWG
- LSZH jacketed 4 pair telecommunications cable
- Successful transmission at 600Mhz up to a length of 100Mtrs
- EZI-Pull 305m Reel for trouble free installation
- Foil wraps act to prevent crosstalk between twisted pairs
- Braided shield helps prevent EMI/RFI & AXT from entering cable
Application
- Horizontal and backbone cable / Datacenter cabling
- 10GBASE-T 10 Gigabit Ethernet
- 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet
- 100VG-AnyLAN / Broadband Video / Voice / T1 / ISDN
- 10 Gigabit (600Mhz) Transmission up to length of 100Mtrs
Specifications
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 23AWG |
| Strand Type | Solid Core |
| No. Of Pairs | 4P |
| Insulation | |
| Material | Polyethylene |
| Thickness | 0.429mm +0.05 / - 0.011 mm |
| Diameter | 1.42mm ± 0.05mm |
| Colors | Blue/White | Orange/White | Green/White | Brown/White |
| Pair Foil Wrap | Aluminum-mylar tape |
| Jacket | |
| Material | LSZH |
| Thickness | 0.5 mm ± 0.02mm |
| Diameter | 7.10mm ± 0.3mm |
| Color | Gray |
| CPR Reaction To Fire Classification | Dca, s2, d2, a1 |
| Foil Shield | None |
| Braided Shield | Tinned copper braid |
