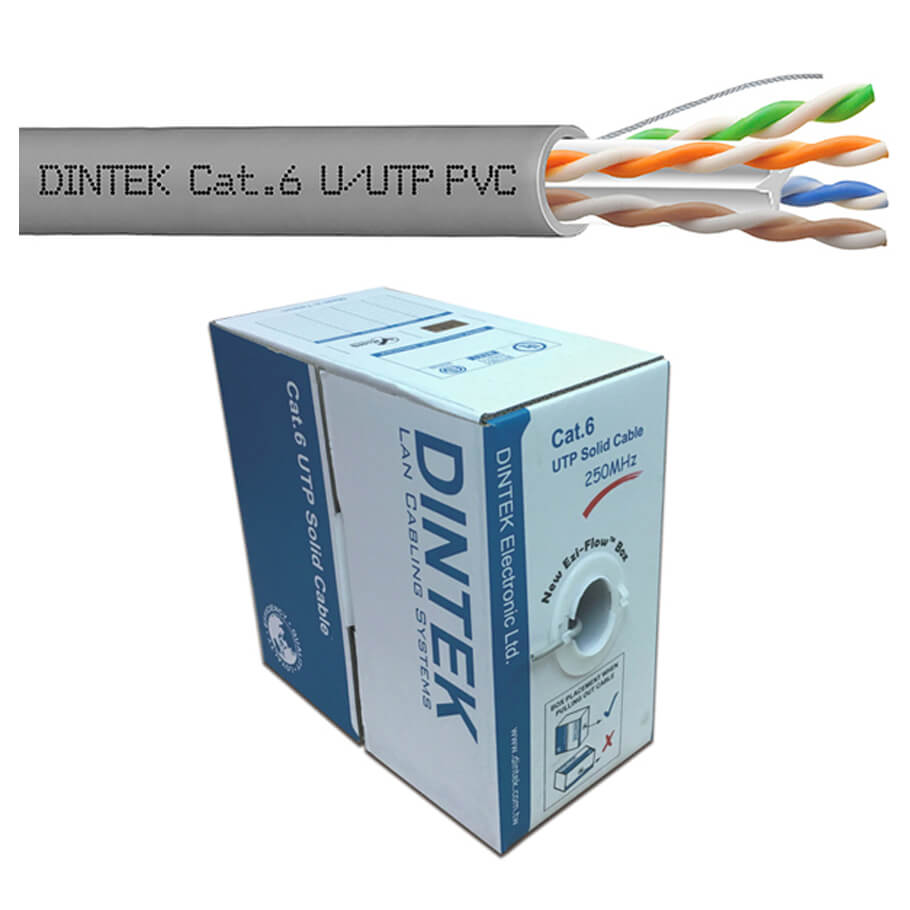

Cáp mạng Dintek CAT.6 UTP (1101-04004MB)
Cáp mạng Dintek CAT.6 UTP (1101-04004MB)
- Cáp mạng CAT.6 UTP Dintek 4-pairs, 305m/thùng.
- Khoảng cách làm việc dài nhất: 150 mét.
Application:
- Voice
- Fast Ethernet(IEEE802.3)
- 100Vg-AnyLAN(IEEE 802.12)
- Token Ring(IEEE 802.5)
- TP-PMD(ANSI X3T9.5)
- 100Base-T Ethernet(IEEE 802.3u)
- 155/622 Mbps 1.2/ 2.4 Gbps ATM
- 1000Base-T Ethernet
- 550 MHz Broadband video
Industry Standard:
- UL, ETL Verified
- TIA/EIA 568B.2-1
- ISO/IEC 11801
- EN 50173
Cable Data:
- No. of Pairs:4
- Jacket Color:Gray
- Insulation Thickness: 0.22mm
- Nom.O.D.:6.5mm
- Flame Rating:CM
- Transmission quality verified up to 250MHz
Product Electrical Characteristics:
- Impedance:100±15 ohms
- Mutual Capacitance, max. nf/ 100m: 5.6
- DC Resistance, max. Ohms/ 100m: 9.38
- Capacitance Unbalance(Pair to Ground): 330pf/ 100m max.
