Cáp mạng COMMSCOPE/AMP CAT6A FTP 4 đôi (0-1859218-2)

Trang Chủ >> Cáp mạng và phụ kiện >> Cáp mạng AMP >> Cáp mạng COMMSCOPE/AMP CAT6A FTP 4 đôi (0-1859218-2)
Mã số:11015158

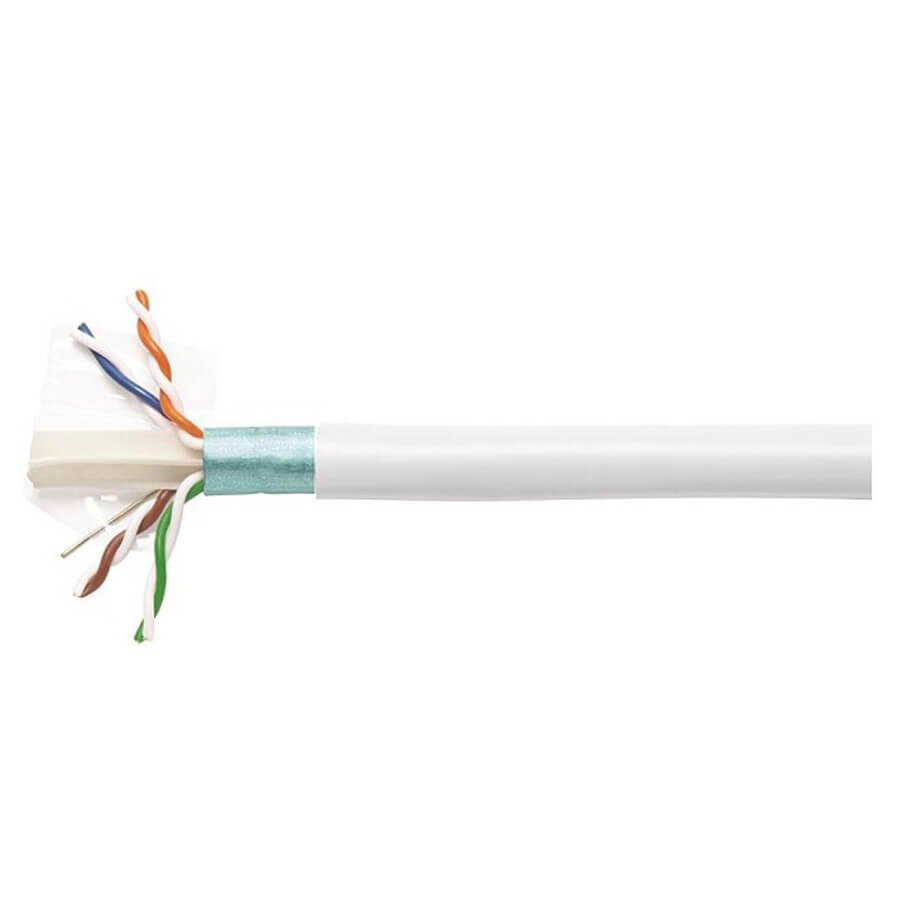

Cáp mạng COMMSCOPE/AMP CAT6A FTP 4 đôi (0-1859218-2)

Cáp mạng COMMSCOPE/AMP CAT6A FTP 4 đôi (0-1859218-2)

- Part Number: 0-1859218-2.

- Cable Cat 6A 4FTP 23WG, LSZH, White.

- Độ dày lõi 23 AWG, bọc giáp chống nhiễu với 4-cặp FTP.

- Vỏ cáp LSZH với chuẩn màu trắng.

Thông số kỹ thuật

Construction Materials
Jacket Material  Low Smoke Zero Halogen (LSZH)
Conductor Material Bare copper
Insulation Material  Polyolefin
Shield (Tape) Material  Aluminum/Polyester
Dimensions
Cable Length  305m/ 1000 ft
Cable Weight  40.39 lb/kft
Diameter Over Jacket, nominal  7.188 mm/ 0.283 in
Electrical Specifications
ANSI/TIA Category  6A
Characteristic Impedance  100 ohm
Characteristic Impedance Tolerance ±15 ohm
DC Resistance, maximum 6.66 ohms/100 m
Delay Skew, maximum  45 ns
Mutual Capacitance at Frequency  5.6 nF/100 m @ 500 MHz
Nominal Velocity of Propagation (NVP) 64%
Operating Voltage, maximum  80V
Remote Powering  Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN
50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Transmission Standards  ANSI/TIA-568-C.2
CENELEC EN 50288-6-1
ISO/IEC 11801 Class EA
Environmental Specifications
Smoke Test Method  IEC 61034-2
Acid Gas Test Method IEC 60754-2
Flame Test Method  IEC 60332-1
Operating Temperature  -20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type F/UTP (shielded)
Packaging Type  Reel
Pairs, quantity  4
Cable Component Type Horizontal
Jacket Color  White
Product Number  640Z
Conductor Gauge, singles  23 AWG
Conductor Type, singles Solid
Conductors, quantity  8

- Hàng chính hãng COMMSCOPE.

Giá: Vui lòng gọi
