0916 287 068 Cáp mạng Alantek Cat6 U/UTP 4-Pair (301-6008LG-03BU)
Trang Chủ >>
Cáp mạng và phụ kiện >> Cáp-phụ kiện Alantek >> Cáp mạng Alantek Cat6 U/UTP 4-Pair (301-6008LG-03BU)
Mã số:11134852

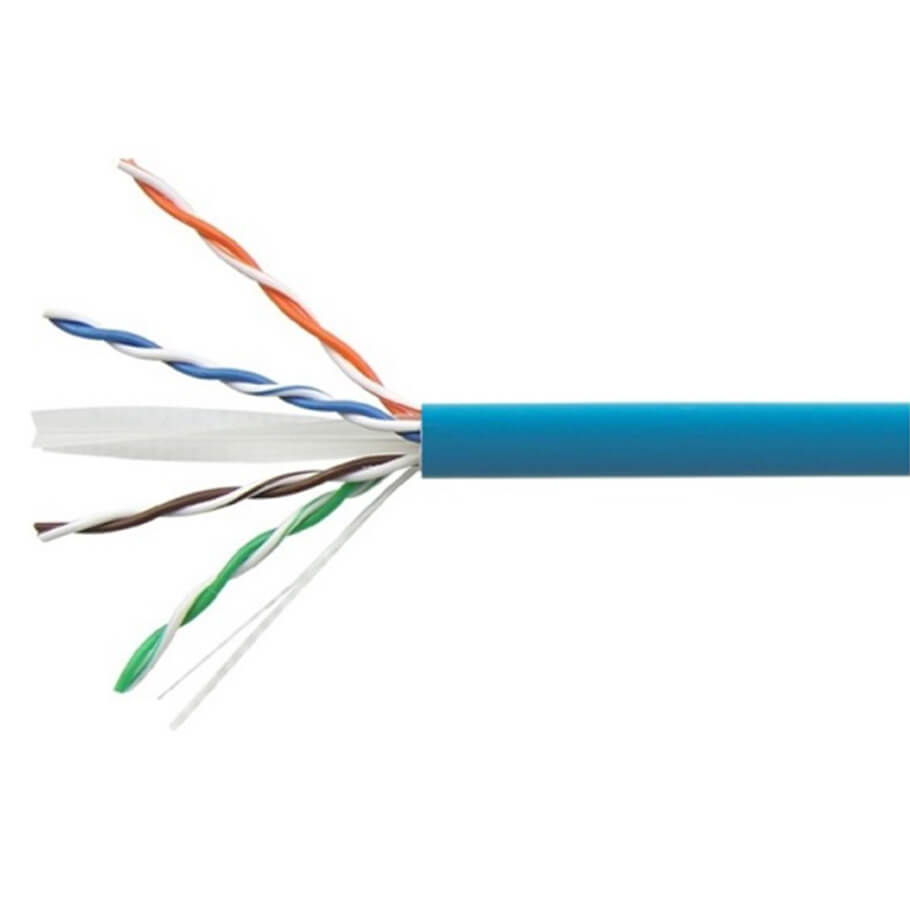

Cáp mạng Alantek Cat6 U/UTP 4-Pair (301-6008LG-03BU)
Part Number: 301-6008LG-03BU
- Cat 6 4-Pair 23AWG U/UTP Unshielded Cable, PVC, Blue - 305m/reel.
- Rating Temp: 75°C.
- Flame Test: CM.
- Application: Horizontal Wiring.
- Standard: ISO/IEC 11801, TIA/EIA 568B, UL 444.
Specifications
| Conductor | Material: Annealed Bare Copper Size: 23 AWG x 4 Pair Construction: 1/0.55 ± 0.005 mm |
| Insulation | Material: HDPE Min. Ave. Thickness: 0.23 mm Min Thickness at any point: 0.22 mm Diameter: 1.03 ± 0.02 mm |
| Identification | 1. Blue x White/Blue 2. Orange x White/Orange 3. Green x White/Green 4. Brown x White/Brown |
| Core Assembly | Core Twist: 2 core twist Assembly Pair: 4 pair assembly |
| Separator | Material: PE |
| Jacket | Material: PVC Min. Ave. Thickness: 0.4mm Min. Thickness at any point: 0.5 mm Diameter: 6.0 ± 0.2 mm |
| Characteristic Imepdance (1 - 100 MHz) | 100 ± 15 Ω |
| Characteristic Impedance (101 – 200 MHz) | 100 ± 18 Ω |
| Mean Characteristic Impedance (1 – 200 Mhz) | 100 ± 10 Ω |
| DC Resistance Unbalance, max. | 5% |
| DC Loop Resistance | 150 Ω/Km |
| Conductor Resistance, max. @ 20°C | 9.38 Ω/100m |
| Capacitance Unbalance (Pair-to-Ground), max. | 330 pF/100m |
| Propagation Delay, max. | 45 ns/100m |
| Delay Skew, max. | 40 ns/100m |
| Nominal Velocity of Propagation (NVP) | 69% |
| Max Tensile Load (Installation) | 100 N |
- Xuất xứ: Trung Quốc.
Giá: Vui lòng gọi
