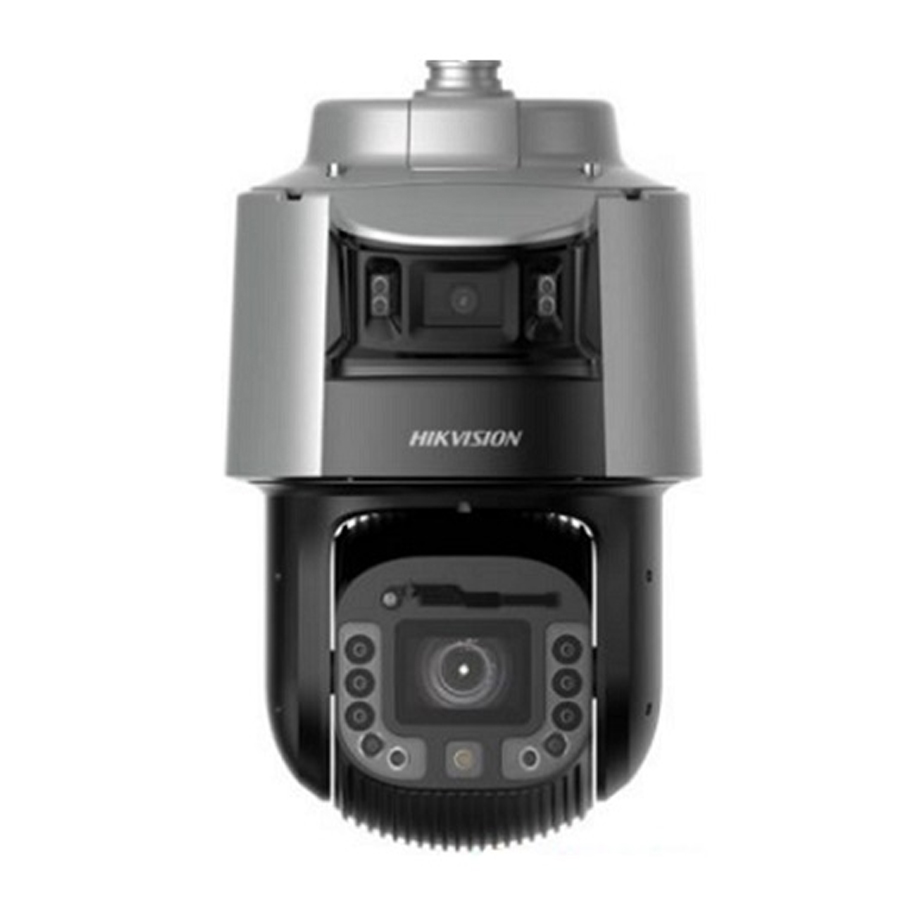

Camera IP Speed Dome Panoramic hồng ngoại 4MP HIKVISION DS-2SF8C442MXS-DLW(14F1)(P3)
- Cảm biến hình ảnh: 1/1.8 inch Progressive scan CMOS.
- Chuẩn nén hình ảnh: H.265+/ H.265/ H.264+/ H.264.
- Độ nhạy sáng:
+ [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light;
+ [PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR.
- Độ phân giải: [Bullet channel] 2560×1440, [PTZ channel] 2560 × 1440@ 25/30fps.
- Ống kính: [Bullet channel] 4mm, [PTZ channel] 6 to 252 mm.
- Camera hỗ trợ các tính năng: WDR 120dB, HLC, BLC, 3D DNR, Defog, EIS.
- Đèn trợ sáng 30 mét và đèn hồng ngoại 300m (PTZ).
- Hỗ trợ thẻ nhớ lên đến 256GB.
- Hỗ trợ 7 Alarms In/ 2 Alarms Out, 1 Audio In/ 1 Audio Out.
- Cảnh báo bằng âm thanh và chớp đèn khi có sự kiện.
- Hỗ trợ dịch vụ Hik-connect, tên miền Cameraddns.
- Zoom số 16x, Zoom quang 42x.
- Góc quay [PTZ channel] 0° to 360°. Tilt: [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°.
- Hỗ trợ 300 điểm preset, 8 patrols, 4 pattern.
- Hỗ trợ Auto Tracking với camera PTZ.
- Nguồn điện: 36 VDC ± 25%, max. 70W.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Chống sét 6KV.
Thông số kỹ thuật
| Camera | |
| Image Sensor | [Bullet channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS |
| Min. Illumination | [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with Light; [PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter Speed | 1 s to 1/30000 s |
| Slow Shutter | Yes |
| Day ＆ Night | [Bullet channel] Color, [PTZ channel] IR cut filter |
| Zoom | [PTZ channel] 42 × optical, 16 × digital |
| Max. Resolution | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
| Lens | |
| Zoom Speed | [Bullet channel] No, [PTZ channel] approx. 5.5 s |
| Focus | Auto, semi-auto, manual |
| Focal Length | [Bullet channel] 4 mm, [PTZ channel] 6 to 252 mm |
| FOV | [Bullet channel] horizontal field of view: 89° ± 5°, vertical field of view: 45° ± 5°, diagonal field of view: 107° ± 5°, [PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3° |
| Aperture | [Bullet channel] F1.0, [PTZ channel] F1.2 |
| Illuminator | |
| Supplement Light Range | [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | [PTZ channel] 0° to 360° |
| Movement Range (Tilt) | [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90° |
| Pan Speed | [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
| Tilt Speed | [Bullet channel] tilt speed configurable, [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan | [Bullet channel] No, [PTZ channel] Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video | |
| Main Stream | [Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | [Bullet channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240), [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | [Bullet channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240), [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile, Main profile, High profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate | 32 to 192 Kbps (MP2L2), 16 to 64Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| API | ISUP, ISAPI, SDK, Open Network Video Interface (Profile S, Profile G, Profile T) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, FTP |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, IP address filter, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), watermark |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | E 10+, Chrome 57+, Firefox 52+, Safari 12+ |
| Image | |
| Wide Dynamic Range (WDR) | [Bullet channel] 120 dB, [PTZ channel] 120 dB |
| Day/Night Switch | Day, night, auto, schedule |
| Image Enhancement | HLC, 3D DNR |
| Defog | Optical defog |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Regional Exposure | Yes |
| Regional Focus | [Bullet channel] No, [PTZ channel] Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| Privacy Mask | [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| SNR | ≥ 52 dB |
| Supplement Detection | |
| Satellite Positioning | No |
| Gyroscope | Yes |
| Compass | No |
| Interface | |
| Ethernet Interface | 1 RJ45 100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Alarm | 7 input(s), 2 output(s) |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
| Event | |
| Basic Event | [PTZ channel] video tampering alarm [PTZ channel & bullet channel] alarm input and output, exception |
| Smart Event | [Bullet channel] audio exception detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection [PTZ channel] audio exception detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Auto Tracking | [PTZ channel] yes |
| Smart Linkage | Manual Tracking, auto tracking, tracking takeover, linked tracking capture |
| Alarm Linkage | [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Deep Learning Function | |
| Multi-Target-Type Detection | [Bullet channel] no [PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle |
| General | |
| General Function | mirror, password protection |
| Power | 36 VDC ± 25%, max. 70 W, including max. 6 W for heater and max. 6 W for supplement light of bullet channel, and max. 6 W for heater and max. 15 W for supplement light of PTZ channe |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing), For speaker: -30 °C to 55°C (-22°F to 131°F) |
| Wiper | Yes |
| Demist | Yes |
| Material | ADC12 |
| Dimension | Ø 290 × 453.2 mm |
| Weight | Approx. 11.5kg |
| Protection | IP67 (IEC 60529-2013), TVS 6000 V lightning protection, surge protection and voltage transient protection, IK10 (IEC 62262:2002) |
- Bảo hành: 24 tháng.
