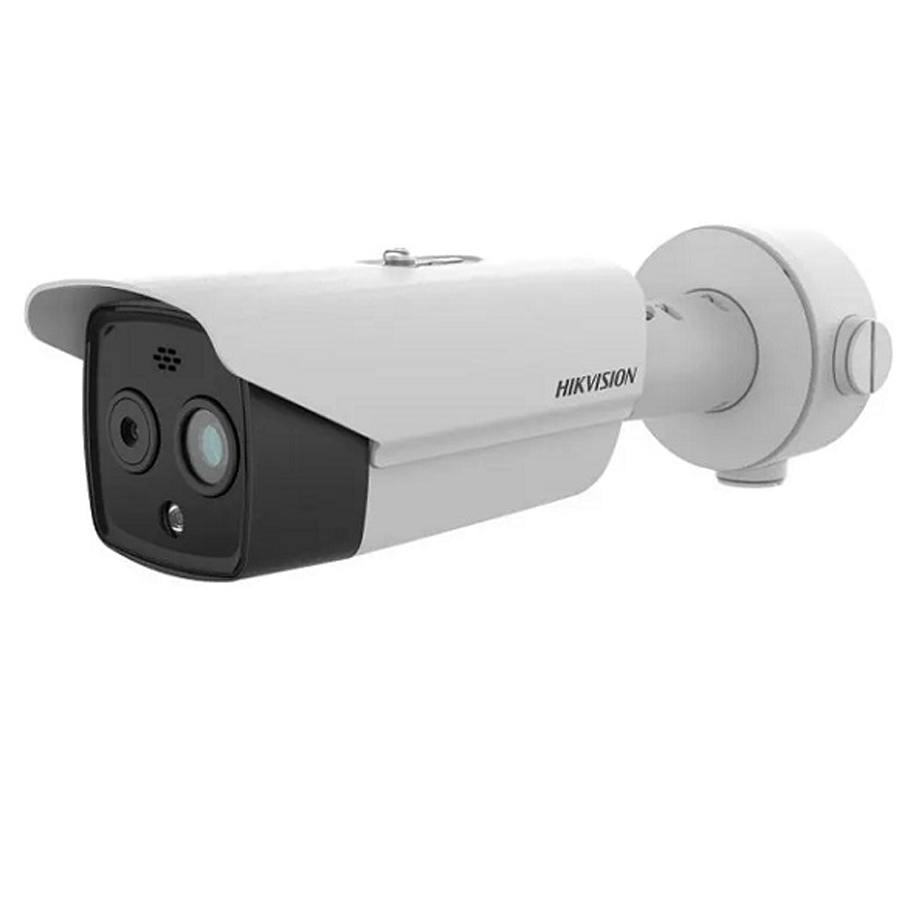

Camera IP cảnh báo nhiệt HIKVISION DS-2TD2628-3/QA
- Độ phân giải 256 × 192, 12μm, VOx UFPA, NETD < 40 mK (25°C, F1.0).
- Chức năng phân tích nội dung video: Phân loại phương tiện/con người.
- Cảnh báo nhiệt độ vượt ngưỡng để phòng cháy, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F).
- Công nghệ xử lý hình ảnh: Linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR.
- Tầm quan sát hồng ngoại: Lên đến 30 mét.
- Chuẩn nén hình ảnh: H.265/H.264.
- Alarm: 2 input, 2 output.
- Điện áp: 24VDC ± 25%, PoE (802.3af, class 3).
- Nhiệt độ hoạt động: - 40°C to 65°C (- 40°F to 149°F).
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | < 40 mK (@ 25°C, F# = 1.1) |
| Focal Length | 3.6 mm |
| IFOV | 3.33 mrad |
| Field of View | 50.0°(H) × 37.3°(V) |
| Min. Focusing Distance | 0.5 m |
| Aperture | F1.0 |
| Digital Zoom | × 2, × 4 |
| Optical Module | |
| Image Sensor | 1/2.7 inch Progressive Scan CMOS |
| Resolution | 2688 × 1520 |
| Min. Illumination | 0.0089Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Focal Length | 4.3 mm |
| Field of View | 84.0°(H) × 43.1°(V) |
| Aperture (Range) | F1.6 |
| WDR | 120 dB |
| Image Effect | |
| Target Coloration | Yes. Supported in white hot and black hot mode |
| Illuminator | |
| IR Distance | Up to 30 m |
| IR Intensity and Angle | Automatically adjusted |
| Audible and Visual Alarm | |
| White Light Range | Up to 30 m |
| Visual Alarm | Yes. White light alarm with adjustable flashing frequencies |
| Audio alarm | Yes, for two types of audible alarm (VCA and Temperature Exception) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types) |
| Smart Function | |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperature Range | - 20°C to 150°C (- 4°F to 302°F) |
| Temperature Accuracy | ± 8°C (± 14.4°F) |
| Video and Audio | |
| Main Stream | Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream | Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP, SSL |
| Network Storage | MicroSD/SDHC/SDXC card (up to 256 GB) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed): Internet Explorer 11 Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 + Local service: Chrome 57.0 +, Firefox 52.0 + |
| Interface | |
| Alarm Input | 2, alarm input (0 to 5 VDC) |
| Alarm Output | 2, alarm output (alarm response actions configurable) |
| Alarm Action | Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger Notification: HTTP, ISAPI, alarm output, Email |
| Audio Input | 1, 3.5 mm Mic in/Line in interface Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Audio Output | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
| Analog Output | 1.0 V [p-p]/75Ω, PAL/NTSC/BNC |
| General | |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power Supply | 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3) |
| Power Consumption | 24 VAC ± 25%: 0.8 A, Max. 8.5 W 12 VDC ± 25%: 0.7 A, Max. 8.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W |
| Working Temperature/Humidity | Temperature: - 40°C to 65°C (- 40°F to 149°F) Humidity: 95% or less |
| Protection Level | IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection, IK10- rated housing |
| Dimensions | 321.3 mm × 106.1 mm × 107.0 mm |
| Weight | 1550 g |
- Bảo hành: 24 tháng.
