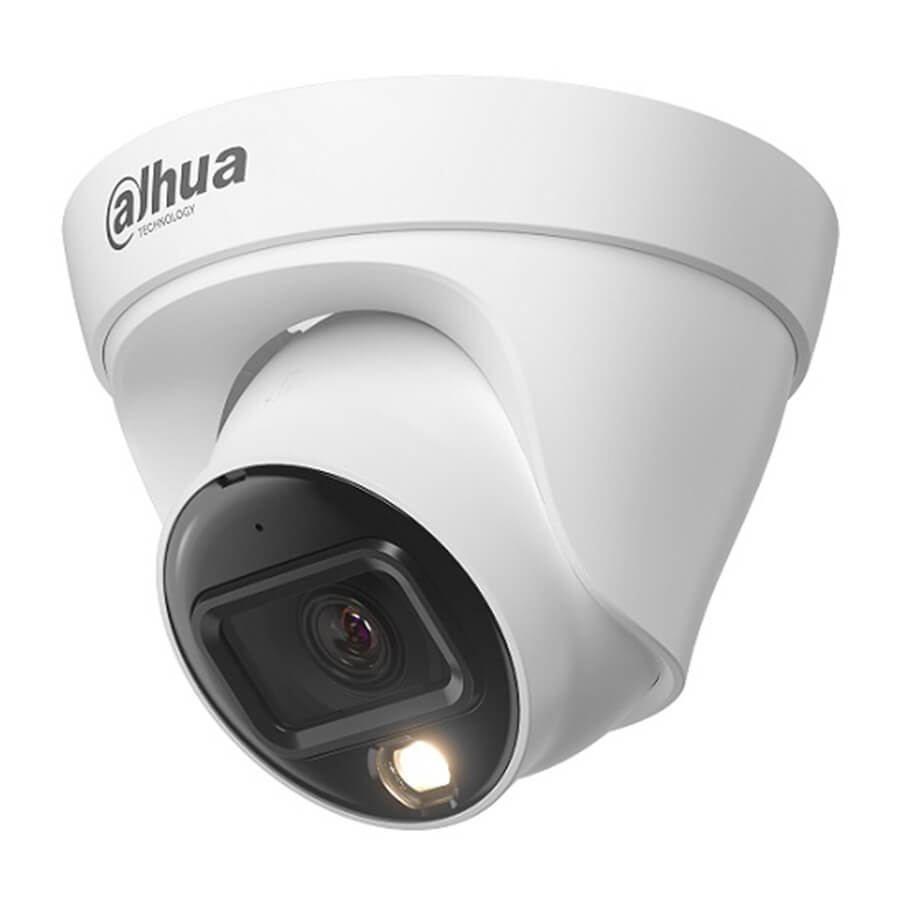

Camera IP Dome Full Color 2.0 Megapixel DAHUA DH-IPC-HDW1239T1-A-LED
- Camera IP Dome cố định Full color trong nhà 2.0MP có mic (phiên bản S6).
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2.0 megapixel.
- Chuẩn nén hình ảnh: H.265+.
- Ống kính cố định: 2.8mm.
- Tầm quan sát đèn LED: 30 mét.
- Tích hợp mic.
- Tính năng phát hiện con người.
- Hỗ trợ chuẩn ONVIF, tên miền miễn phí SmartDDNS.TV.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn cấp: 12VDC.
- Hỗ trợ PoE.
- Vỏ kim loại + nhựa.
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/2.8” CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 3.6 mm: Up to 30 m (98.43 ft)(Warm Light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 105°; V: 56°; D: 126° 3.6 mm: H: 87°; V: 44°; D: 105° |
| Iris Control | Fixed |
| Intelligence | |
| Human Detection | Support the classification and accurate detection of human |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception; SMD (human) |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | ONVIF (Profile S & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 24 M) |
| Storage | FTP |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 1.5 W (12 VDC), 1.6 W (PoE) Max. (H.265 + intelligence on + WDR+ warm light intensity): 3.4 W (12 VDC), 4.3 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95%(RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95%(RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal + Plastic |
| Product Dimensions | 85.5 mm × Φ109 mm (3.37' × Φ4.29') |
| Net Weight | 0.25 kg |
- Xuất xứ: Trung Quốc.
