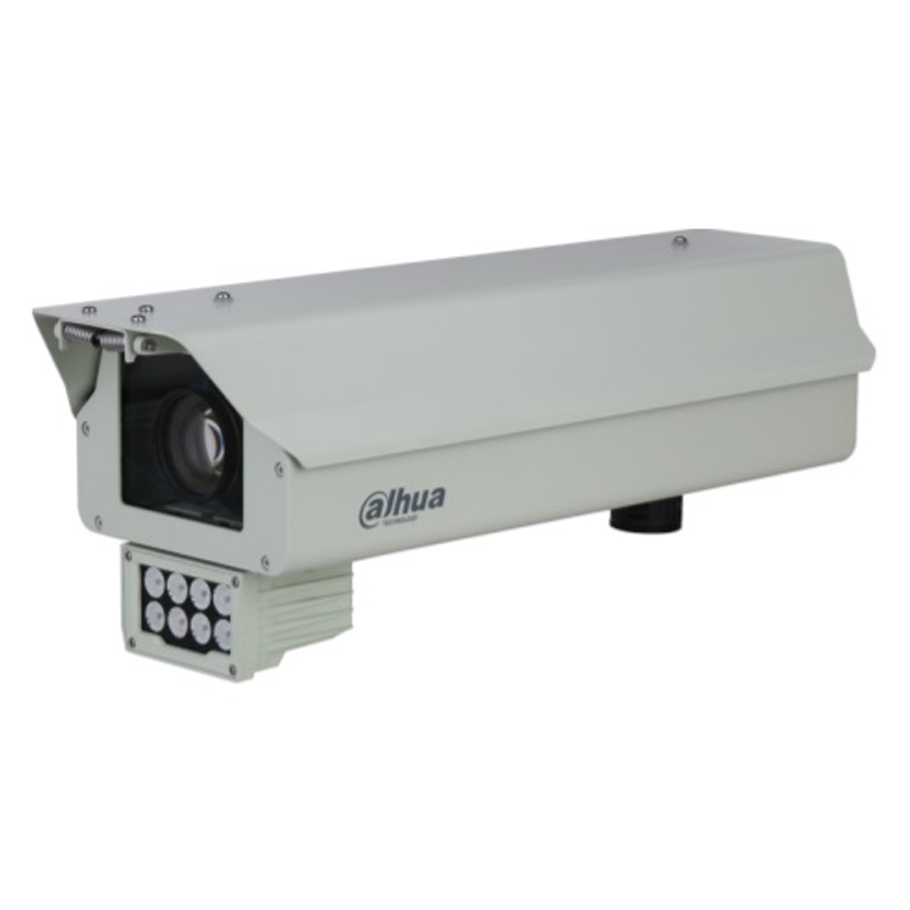

Camera IP giao thông 9.0 Megapixel DAHUA DHI-ITC952-AU3F-IRL8ZF1640
- DAHUA DH-ITC952-AU3F-IRL8ZF1640 là dòng camera IP giao thông độ phân giải 9MP (4096×2820).
- Cảm biến hình ảnh: 1 inch GS-CMOS.
- Hỗ trợ đến 3 làn đường cùng lúc.
- Tích hợp bộ xử lý đa lõi, hiệu năng cao.
- Tích hợp cảm biến hình ảnh chất lượng cao.
- Tích hợp thuật toán thông minh.
- Chụp ảnh biển số, chụp ảnh vi phạm luật giao thông (vượt đèn đỏ, quá tốc độ...).
- Hỗ trợ tìm kiếm thông minh: Thương hiệu xe, kích thước xe (11 kích thước xe), màu sắc xe ban ngày (11 màu xe).
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Điện áp: AC100~240V.
- Công suất: ≤20W.
- Nhiệt độ hoạt động : -40°C ~ +65°C.
Đặc tính kỹ thuật
| Model | DHI-ITC952-AU3F-IRL8ZF1640 |
| Image Processing | |
| Image Sensor | 1 inch GS-CMOS |
| Shutter Mode | Single shutter / double shutters / three shutters |
| Electronic Shutter Speed | 1/50 s–1/100000 s (auto/manual) |
| Exposure Mode | Full auto/customized range/customized |
| Iris Control | Fixed iris/manual iris/auto iris/P iris |
| Image Resolution | 4096 × 2820 (OSD black strip excluded) |
| Video Resolution | (4096 × 2820)/QFHD (3840 × 2160)/1080P (1920 × 1080)/UXGA (1600 × 1200)/720P (1280 × 720) |
| Video Frame Rate | Maximum 50 fps; main stream (4096 × 2820@25 fps), sub stream (1600 × 1200@25 fps) |
| Video Bit Rate | H.264: 32 kbps–32768 kbps H.265: 32 kbps–32768 kbps MJPEG: 512 kbps–32768 kbps |
| Video Compression | H.265/H.264M/H.264H/H.264B/MJPEG |
| Picture Encoding Format | JPEG |
| WDR | 64dB |
| White Balance | Auto/home/office/night/custom color temperature |
| Noise Reduction | 2DNR/3DNR |
| Day/Night | Supports ICR auto switch: IR cut-off filter (IRCF) with polarizing filter is used during daytime, and IR will not be filtered during nighttime |
| HLC (Highlight Compensation) | Yes |
| Bad Pixel Correction | Yes |
| Edge Enhancement | Yes |
| Illuminator Number | 8 illuminators (850nm IR illuminators, brightness adjustable) |
| Illumination Distance | 50 m (164.04 ft) |
| Function | |
| Composite Image | Supports composing 1, 2, 3, or 4 pictures |
| Trigger Mode | Video detection/radar/coil |
| OSD Overlay | Time, location (video channel location), lane (number, direction), and plate number |
| Storage | FTP, TF card (maximum 256GB@Class10) |
| Alarm Event | Storage full, storage error, external alarm, no storage card, license plate blacklist, abnormal device attitude, illegal access, network disconnection, and IP conflict |
| Automatic Network Replenishment (ANR) | Platform, FTP |
| Image Tampering Prevention | Yes. Watermark and verification are available for videos and pictures |
| Positioning Function | GPS/BeiDou |
| Time Synchronization | NTP/GPS/BeiDou |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, and network access control |
| Auto Registration | Yes |
| Intelligence | |
| Target Detection | Motor vehicle, non-motor vehicle |
| Face Detection | Detects driver and front-seat passenger of motor vehicle, and non-motor vehicle driver; extracts face image |
| Vehicle Plate Recognition | Recognizes license plates in Russian |
| Vehicle Type Recognition | Vehicle head mode: Coach bus, minibus, SUV, MPV, pickup, heavy truck, medium truck, van, light truck Vehicle tail mode: SUV, car, van, coach bus, pickup, cargo truck, mini truck, tank truck, mixer truck |
| Vehicle Color Recognition | White, pink, black, red, yellow, gray, blue, green, amber, purple, brown, silver gray (color recognition is not supported during nighttime) |
| Motor Vehicle Violation Snapshot | ANPR mode: Wrong-way driving, overspeed, underspeed, disobey lane direction sign, cross white solid line, cross yellow solid line, illegal lane change, video speed measurement |
| Non-motor Vehicle Violation Snapshot | Captures traffic violations including carrying passenger, not wearing helmet, wrong-way driving, and occupying motorway |
| Traffic Flow Detection | Statistics of vehicle flow, queue length, average speed, lane occupancy, and more; statistics can be exported in Excel |
| Traffic Event Detection | Detects illegal parking and wrong-way driving of motor vehicles and traffic congestion |
| Video Metadata | Motor vehicle: License plate, vehicle type, vehicle color, license plate color, vehicle logo, and more (color recognition is not supported during nighttime) Non-motor vehicle: Type (two-wheelers, three- wheelers), carrying passenger or not, wearing a helmet or not, and color |
| Port | |
| Iris Control | 1, connects to auto iris or P iris |
| Focus Control | 1, connects to motorized vari-focal lens |
| Frequency Source Sync | 1, supports synchronizing the camera with mains electricity |
| Peripheral Light | 7, optocoupler signal output (can be configured as flashing light or LED strobe sync output interface, frequency adjustable) |
| Network | 2 RJ-45 Ethernet ports, 10/100/1000M network transmission |
| USB | 2 USB 3.0 ports |
| GPS | 1 GPS/BeiDou port |
| Storage | 1, supports maximum 256GB TF card local storage |
| RS-485 | 2, connects to signal detector, vehicle detector, flashing light, continuous light, and more |
| RS-232 | 4 RS-232 ports. 3 for radar connection, and 1 for serial port debugging |
| I/O | 4, capture signal input of I/O trigger, sharing with alarm in port |
| Alarm Input | 4, share with I/O port |
| Alarm Output | 2, AO1 relay output and AO2 optocoupler output, can be configured as alarm output or wiper output as needed |
| Audio In | 1, 3.5 mm jack |
| Audio Out | 1, 3.5 mm jack |
| Power Output | 12V DC±10% voltage output, ≤1.5A current output |
| General | |
| Lens | 16 mm–40 mm IR lens |
| Power Supply | 100V AC–240V AC (50Hz/60Hz) |
| Power Consumption | ≤20W |
| Operating Temperature | −40 °C to +65 °C (−40 °F to +149 °F) |
| Operating Humidity | 10%–90% |
| Protection Grade | IP66 |
| Dimensions (L × W × H) | 554.0 mm × 204.2 mm × 209.6 mm |
| Net Weight | 4.6 kg (10.14 lb) |
| Gross Weight | 6.6 kg (14.55 lb) |
| Installation | Universal joint installation |
| Power Adapter | Standard |
- Sản xuất tại Trung Quốc.
