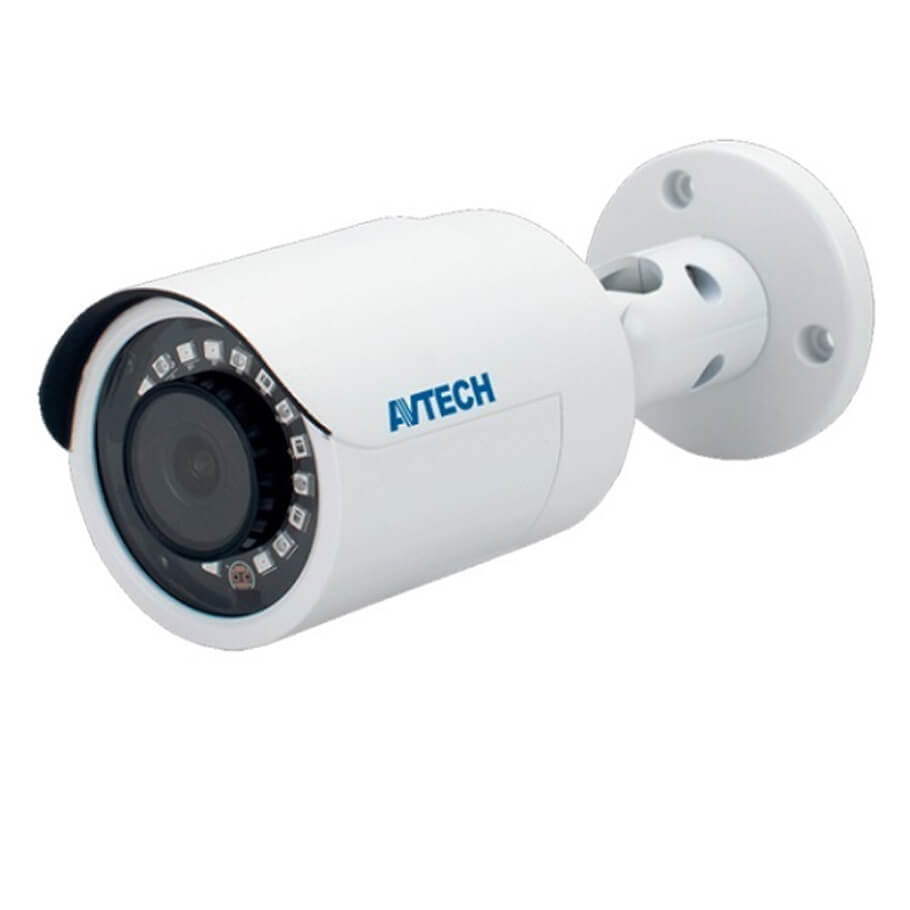

Camera IP hồng ngoại 8.0 Megapixel AVTECH DGM8108SVATP/F28
- Cảm biến hình ảnh: 1/2.8 inch SONY CMOS Image Sensor.
- Độ phân giải camera ip: 8.0 megapixel.
- Độ nhạy sáng tối thiểu: 0.001 Lux (IR LED off), 0 Lux (IR LED on).
- Chuẩn nén hình ảnh: H265/H.264.
- Ống kính: f2.8mm/F1.6.
- Đèn hồng ngoại: 18 bóng.
- Tầm quan sát hồng ngoại: Lên đến 30 mét.
- Chức năng chống ngược sáng WDR.
- Tiêu chuẩn chông bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ Onvif.
- Nguồn cấp: 12V-1A/PoE.
Đặc tính kỹ thuật
| Device | |
| Image Sensor | 1/2.8 inch SONY CMOS |
| Max. Resolution | 3840 x 2160 |
| Lens | f2.8mm/F1.6 |
| Viewing Angle | 110˚ (Diagonal) |
| Min Illumination | 0.001 Lux (IR LED off), 0 Lux (IR LED on) |
| Shutter Speed | AUTO, 1/25s ~ 1/100000s |
| IR LED | 18 units |
| IR Effective Distance | Up to 30 meters |
| Day/Night | YES |
| WDR Mode | YES (120dB) |
| RTC (real-time clock) | YES |
| Video | |
| Compression | H265/H.264 |
| Video Resolution | - Main Stream: 8MP (3840x2160)/6MP (3072x2048)/5MP (2592x1944)/4MP (2560x1440)/3MP (2304x1296)/2MP (1080P)/720P - Sub Stream: 2MP (1080P)/720P/720x480/VGA/640x360/480x360/CIF |
| Frame Rate | 8MP @ 20FPS |
| Video Profile | High profile/Main profile/Base profile |
| Multiple Video Streaming | 2 streams |
| Bitrate Control | 512Kbps - 12Mbps, VBR/CBR |
| Image Enhancement | WDR/BLC/HLC/2D DNR/3D DNR/AWB/MWB/AGC |
| Day/Night Switch | Auto/Color/(B/W)/Timing |
| Forced Anti-flicker | YES |
| Defog | YES |
| White Balance | Auto/Manual |
| Image Orientation | Rotate/Mirror |
| Privacy Mask | YES |
| Text Overlay | YES |
| OSD Title | Location/font size/text configurable; text input (English & Chinese characters) and image upload (BMP) supported |
| Audio | |
| Microphone built-in | YES |
| Encoding | G.711-u/G.711-a |
| Audio Adjustment | YES |
| Alarm & Event | |
| Detection Mode | Motion/Human/Vehicle Detection |
| Detection Schedule | YES |
| Motion Detection Area | 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18 |
| Human/Vehicle Detection Alert | Audio alert with customized mp3 audio file(s) |
| Network | |
| LAN Port | RJ45 connector x 1/4KV lightning-proof |
| LAN Speed | 100Mbps Based-T Ethernet |
| Supported Protocols | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP |
| ONVIF Compatible | Onvif 17.06 compatible |
| Number of Online Users | 6 |
| Remote Access | Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
| General | |
| Web Interface Language | English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean |
| Operating Temperature | -30℃ ~ 60℃ |
| Operating Humidity | 10%-90%RH |
| POE | IEEE 802.3af |
| Power Source (±10%) | PoE/DC12V |
| Power Consumption (±10%) | < 8W |
| Net Weight (g) | 355 |
| Casing | IP66 |
| Optional Bracket/Junction Box | AVA156-WHKT/AVA456-BBKT/AVA456-WBKT |
| Minimum Web Browsing Requirements | - Intel core i3 or higher, or equivalent AMD - 2GB RAM - AGP graphics card, Direct Draw, 32MB RAM - Windows 10, Windows 8, Windows 7, DirectX 9.0 or later - Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
- Bảo hành: 24 tháng.
