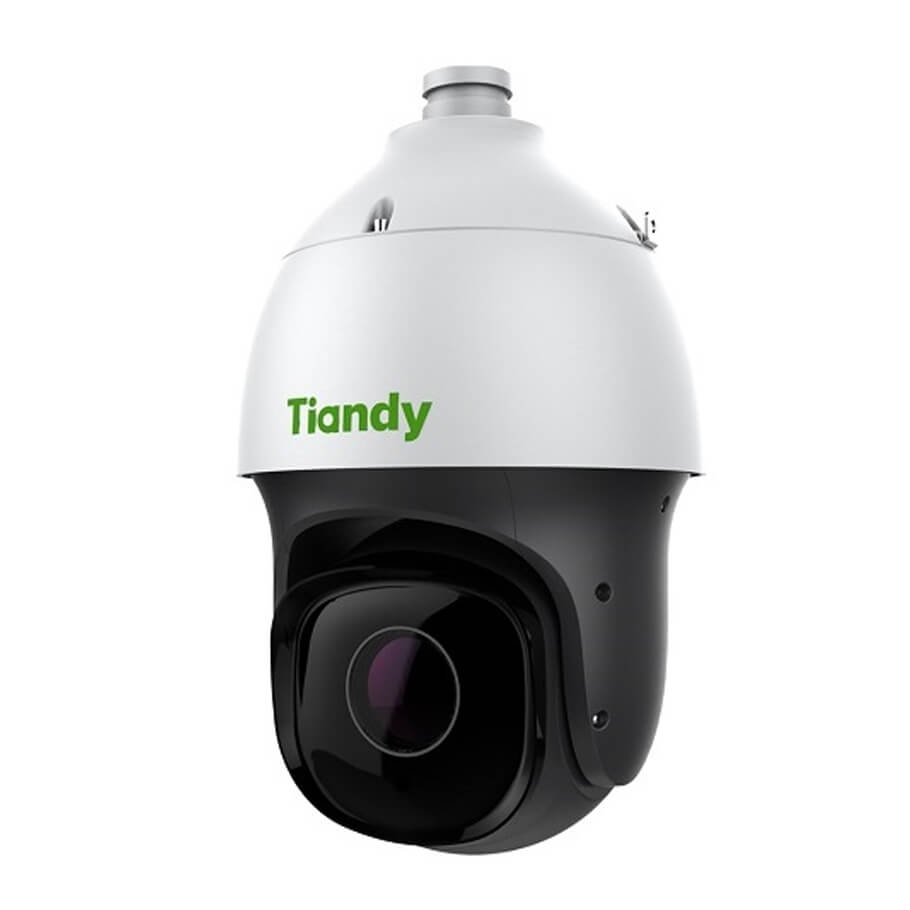

Camera IP Speed Dome hồng ngoại 5.0 Megapixel TIANDY TC-H356S(30X/I/E++/A)
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén hình ảnh: S+265/H.265/H.264/M-JPEG.
- Ống kính: 4.7mm~141mm/F1.5~F4.0.
- Độ nhạy sáng: Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR.
- Tầm quan sát hồng ngoại: 200m.
- Zoom quang: 30x.
- Zoom số: 16x.
- Hỗ trợ thẻ nhớ tối đa 512GB.
- Hỗ trợ 1 cổng vào và 1 cổng ra audio.
- Hỗ trợ 8 cổng vào và 2 cổng ra alarm.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC, HLC.
- Chức năng chống ngược sáng thực WDR 140dB.
- Tính năng Auto-tracking, tự động theo dõi đối tượng.
- Tính năng chống sét, chống sốc điện.
- Các tính năng: Chụp ảnh khuôn mặt, phân biệt phương tiện và người.
- Chuẩn ONVIF quốc tế, hỗ trợ tên miền miễn phí.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: AC24V, PoE++.
- Vỏ kim loại.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8 inch CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 140dB |
| Optical Zoom | 30× |
| Digital Zoom | 16× |
| Lens | |
| Focal Length | 4.7mm~141mm |
| Zoom Speed | <5s |
| Angle of View | Horizontal filed of view: 55.5° (w)~2.7° (t) |
| Vertical filed of view: 42° (w)~1.5° (t) | |
| Aperture Range | F1.5~F4.0 |
| Pan&Tilt | |
| Pan Range | 360° |
| Pan Speed | Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s |
| Tilt Range | -16°~90° (Auto flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s |
| 3D Position | Yes |
| Presets | 500 |
| Preset Accuracy | ±0.4° |
| Scan | 8 |
| Cruise | 16, up to 32 presets per cruise |
| Pattern | 8, each with 600s memory or 1000 orders |
| Power-off Memory | Yes |
| RS-485 Protocols | DOME_PELCO_D，DOME_PELCO_P，DOME_PLUS |
| Illuminator | |
| IR LEDs | 10 |
| IR Range | Up to 200m |
| IR Irradiation Angle | Adjustable by Zoom |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K～48Kbps |
| Image | |
| Max. Resolution | 5.0MP(2592×1944) |
| Main Stream | PAL: 25fps (2592×1944, 2560×1440), 50fps (1920×1080, 1280×720) |
| NTSC: 30fps (2592×1944, 2560×1440), 60fps (1920×1080, 1280×720) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | PAL: 25fps (704×576, 704×288, 640×480, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×480, 352×240) | |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream, support auto-tracking ROI |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, letters such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection/ Mask Alarm/IP Conflict/MAC Conflict Detection/FTP Server Exception/Disk Full/Disk R/W Error |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Video Abnormal, Crowd, Audio Abnormal, Demographics(People Counting), On Duty Detection, Safety Helmet Detection, Auto tracking, Face Capture |
| Auto-Tracking | Yes |
| Face Detection and Analytics | |
| Operating Mode | Face capture, intelligent monitoring optional, default intelligent monitoring |
| Face Detection Performance | Detects up to 16 faces at the same scene |
| Face Exposure Brightness | Default 35, 1~100 brightness optional |
| Min. Face Pixel | Default 80, 19~1920 optional |
| Precautionary Alert | Three level |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, MULTICAST, RTMP |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, CGI, P2P |
| ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio | 1/1 |
| Alarm | 8/2 |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| RS-485 | Yes |
| BNC | Yes |
| General | |
| Web Client Language | 15 languages Simplified Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
| Operating Conditions | -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH |
| Power Supply | AC24V±25%/POE++ |
| Power Consumption | 22W (IR OFF), 49W (IR ON) |
| Protection | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Dimensions | Φ222x372mm |
| Weight | 5.3kg |
