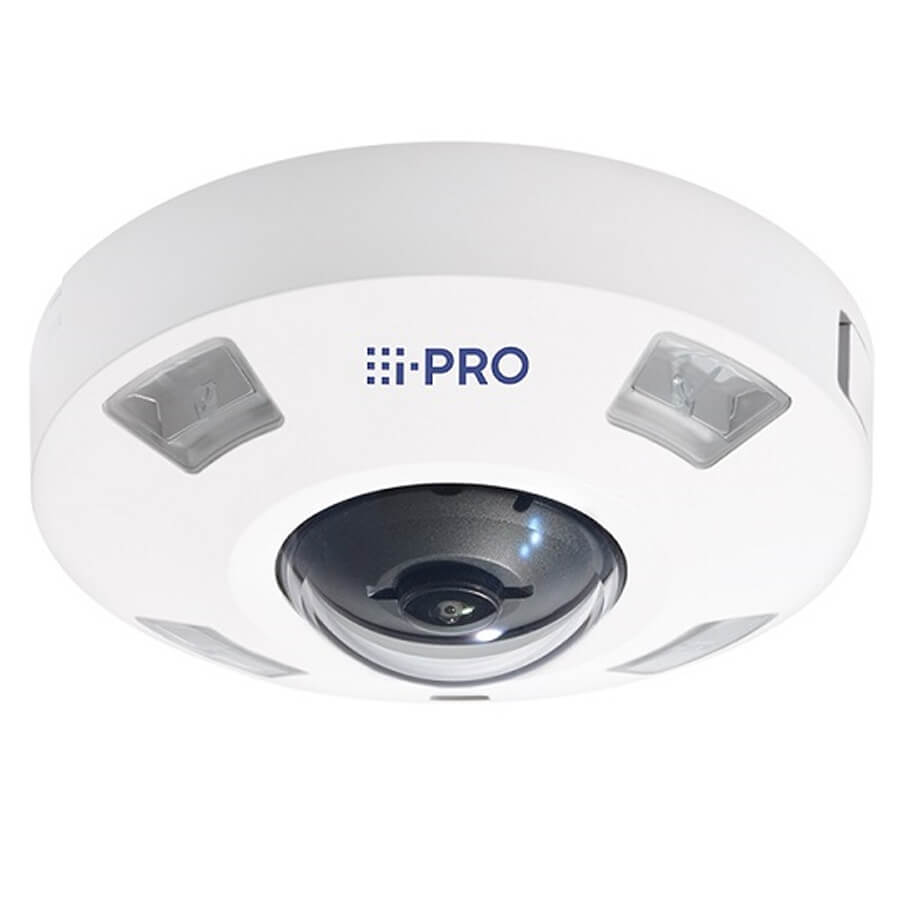

Camera IP Fisheye hồng ngoại 5.0 Megapixel I-PRO WV-S4551LM
- 5MP Sensor In-vehicle 360-degree Fisheye Network Camera.
- Cảm biến hình ảnh: Approx. 1/3 type 5MP CMOS image sensor.
- Độ phân giải: 5.0 megapixels.
- Độ nhạy sáng tối thiểu:
+ Color: 0.15 lx, BW: 0.02 lx (F2.4, Maximum shutter: Off (1/30 s), AGC: 11);
+ BW: 0 lx (F2.4, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit);
+ Color: 0.01 lx, BW: 0.0013 lx (F2.4, Maximum shutter: max. 16/30s, AGC: 11).
- Hỗ trợ các tính năng camera: BLC, HLC, DNR, ICR, Super Dynamic 120dB.
- Hỗ trợ tính năng iA (intelligent Auto).
- Hỗ trợ chuẩn nén H.265 Smart Coding.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Camera | |
| Image Sensor | Approx. 1/3 type 5MP CMOS image sensor |
| Minimum Illumination | Color: 0.15 lx, BW: 0.02 lx (F2.4, Maximum shutter: Off (1/30 s), AGC: 11) BW: 0 lx (F2.4, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.01 lx, BW: 0.0013 lx (F2.4, Maximum shutter: max. 16/30s, AGC: 11) |
| Intelligent Auto | On / Off |
| Maximum Shutter | max. 16/30s to Max. 1/10000s |
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.120 dB (Super Dynamic: On, level : 31) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) |
| IR LED Light | High* / Middle / Low / Off *Maximum irradiation distance : 10 m {Approx. 33 ft} (Mounting height : Approx. 3 m, Peripheral intensity control : On) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type 8 *Bundled License |
| Privacy Zone | On / Off, Up to 8 zones available |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Fixing angle adjustment | -5°, 0°, +5° |
| Lens | |
| Zoom Ratio | 1x |
| Digital (Electronic) Zoom | Choose from 3 levels of x1, x2, x4 |
| Focal Length | 0.84 mm {1/32 inches} |
| Maximum Aperture Ratio | 1 : 2.4 |
| Focus Range | 0.3 m {11-13/16 inches} - ∞ |
| Angular Field of View | Horizontal : 186° Vertical : 186° |
| DORI | |
| Distance to the object in the center of the image | Identify (250 ppm / 76 ppf) : 2.1 m / 6.8 ft |
| Coverage radius when mounted at a height of 3 m (10 ft) | Identify (250 ppm / 76 ppf) |
| Browser GUI | |
| Camera Control | Brightness, AUX On / Off |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution | •Fisheye mode (max. 30 fps/25 fps) 2192×2192 / 1280×1280 / 640×640 / 320×320 •Quad PTZ mode (max. 30 fps/25 fps), Single PTZ mode (max. 30 fps/25 fps) 1600×1200 / 1280×960 / 800×600 / VGA / QVGA |
| Resolution | •Double Panorama mode (max. 30 fps/25 fps) 1920×1080 / 1280×720 / 640×360 / 320×180 •Fisheye + Double Panorama mode (max. 30 fps/25 fps) (Fisheye) 2192×2192 / 1280×1280 / 640×640 / 320×320 (Double Panorama) 1280×720 / 640×360 / 320×180 •Fisheye + Quad PTZ mode (max. 30 fps/25 fps) (Fisheye) 2192×2192 / 1280×1280 / 640×640 / 320×320 (Quad PTZ) 1280×960 / 800×600 / VGA / QVGA •Quad streams mode (Single PTZ (Quad streams)) 1280×960 / 800×600 / VGA / QVGA (max. 30 fps/25 fps) (Quad PTZ) 1600×1200 / 1280×960 / 800×600 / VGA / QVGA (max. 5 fps) |
| Resolution | •Panorama mode (max. 30 fps/25 fps) 1920×1080 / 1280×720 / 640×360 / 320×180 •Fisheye + Panorama mode (max. 30 fps/25 fps) (Fisheye) 2192×2192 / 1280×1280 / 640×640 / 320×320 (Panorama) 1280×720 / 640×360 / 320×180 |
| H.265/H.264 | Transmission Mode Constant bit rate / VBR / Frame rate / Best effort Transmission Type Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
| JPEG | Image Quality 10 steps |
| Smart Coding | GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS : On / Off |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps, G.711: 64 kbps, AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS , SRTP, SFTP, MQTT, LLDP |
| Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC JPEG recording : Manual REC / Alarm REC (Pre/Post) Compatible SDXC/SDHC/SD card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad / iPhone, AndroidTM terminals |
| ONVIF Profile | G / S / T |
| Alarm | |
| Alarm Source | 3 terminals input, VMD, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification output |
| Input/Output | |
| Audio Input | ø3.5 mm stereo mini jack, Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : –48 dB ±3 dB (0 dB=1 V / Pa,1 kHz)) Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV |
| External I/O Terminals | ALARM IN 1 (Black & white input, Auto time adjustment) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024, EN55035 ECE-R10, EN50498 compliant, EN50121 |
| Power Source and Power Consumption | DC power supply : DC12 V 930 mA, Approx. 11.2 W PoE (IEEE802.3af compliant, Alternative A) Device : DC48 V 240 mA, Approx. 11.5 W (Class 0 device) |
| Ambient Operating Temperature | IR LED : On -40 °C to +50 °C (-40 °F to 122 °F) IR LED : Off -40 °C to +60 °C (-40 °F to 140 °F) |
| Ambient Operating Humidity | 10% to 90 % (no condensation) |
| Anti-Condensation System | Rosahl element |
| Water and Dust Resistance | IP66(IEC60529), Type 4X(UL50), NEMA 4X compliant |
| Shock Resistance | 50J (IEC 60068-2-75 compliant), IK10 (IEC 62262) |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Railway Application | EN45545 compliant, EN50155-TX |
| Dimensions | When using the attachment plate : ø154 mm × 60.3 mm (H) {ø6-1/16 inches × 2-3/8 inches (H)} Dome radius 35 mm {1-3/8 inches} When using the base bracket : ø164 mm × 96.3 mm (H) {ø6-15/32 inches × 3-25/32 inches (H)} Dome radius 35 mm {1-3/8 inches} |
| Mass (Approx.) | When using the attachment plate : Approx. 870 g {1.92 lbs} |
| Finish | Main body : Aluminum die cast, i-PRO white Outer fixing screws : Stainless steel Dome section : Polycarbonate resin, Clear |
- Bảo hành: 12 tháng.
