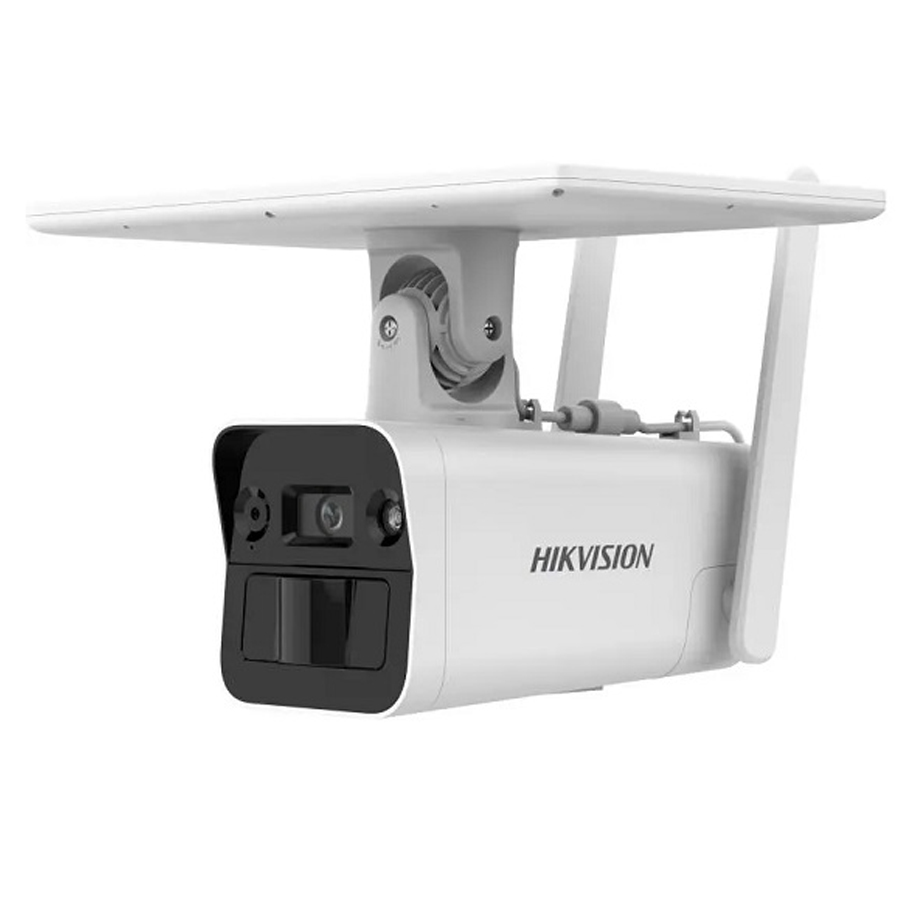

Camera IP 4G năng lượng mặt trời 4.0 Megapixel HIKVISION DS-2XS2T41G1-ID/4G/C05S07
- Cảm biến hình ảnh: 1/3 inch Progressive Scan CMOS.
- Độ phân giải: 4.0 megapixel.
- Hỗ trợ PIR + Radar chống báo động giả.
- Tầm quan sát hồng ngoại: 10m ~ 30m.
- Tích hợp micro và loa đàm thoại 2 chiều.
- Hỗ trợ sim 4G (LTE-TDD/LTE-FDD/TD-SCDMA).
- Tích hợp bộ nhớ 8GB eMMC.
- Tích hợp khe cắm thẻ nhớ microSD/microSDHC/microSDXC, lên đến 256GB.
- Pin dự phòng Ternary lithium 51.46Wh.
- Tấm pin năng lượng mặt trời 6.5W.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/3 inch Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | B/W: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Solar panel: tilt: -45° to 45°, rotate:-30° to 30° |
| Lens | |
| Lens Type | Fixed focal lens, 4 and 6 mm optional |
| Iris Type | Fixed |
| Aperture | 4mm: F1.28, 6mm: F1.6 |
| Depth of Field | 4 mm: 2.7 m to ∞ 6 mm: 5.9 m to ∞ |
| Focal Length & FOV | 4 mm, Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° 6 mm, Horizontal FOV: 49°, Vertical FOV: 26°, Diagonal FOV: 57° |
| Lens Mount | M12 |
| DORI | |
| DORI | 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Performance mode: up to 30 m, proactive mode: up to 10 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/ H.264, Sub-stream: H.265/H.264/MJPEG, H.264+ and H.265+: main stream supports under performance mode |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio | |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network | |
| Security | Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Network Storage | Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Communication | |
| SIM Card Type | Micro SIM |
| Uplink and Downlink Data Rate | Cat 4, uplink: 50 Mbps, downlink: 150 Mbps |
| Frequency | EU: LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 WCDMA: B1/B5/B8 GSM: B3/B5/B8 LA: LTE-TDD: B38/B40 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66 WCDMA:B1/B2/B3/B4/B5/B8 GSM: B2/B3/B5/B8 |
| Standard | LTE-TDD, LTE-FDD, WCDMA, GSM |
| Image | |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | Digital WDR |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Transducer | |
| Transducer Type | PIR + Radar |
| Detection Angle | 4 mm: Horizontal: 80°, vertical: 42°, 6 mm: Horizontal: 50°, vertical: 22° |
| Detection Range | Up to 12 m |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in eMMC storage, up to 8 GB, Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, For eMMC storage, 5 GB is available for recording. |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Linkage | Upload to NAS/memory card, notify surveillance center, trigger recording, trigger capture, audible warning |
| General | |
| Power | Power Consumption and Current: Typical power scenarios: 1.85 W (4G working) Standby scenarios: 80 mW Max. power consumption: 7 W Power Supply: 12 VDC *For debugging only 6.5 W (deviation: ± 1 W) Solar panels Power Interface: Power supply interface: Ø 5.5 mm coaxial power plug Extened solar panel: Ø 5.5 mm coaxial power plug |
| Material | Plastic |
| Storage Conditions | 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log |
| Startup and Operating Conditions | 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Dimension | 213.7 mm × 292.4 mm × 188.7 mm |
| Weight | Approx. 1.42kg |
| Battery | |
| Battery Type | Ternary Lithium |
| Max. Charging Voltage | 12.6 V |
| Capacity | 51.46 Wh |
| Operating Temperature | Charging: 0 °C to 45 °C (32 °F to 113 °F) Discharging: -20 °C to 50 °C (-4 °F to 122 °F) |
| Battery Voltage | 8.1 V to 12.6 V |
| Cycle Lifetime | Proactive mode: 1.5 days, Standby mode: 11 days |
| Battery Life | More than 800 cycles |
| Battery Weight | Approx. 185g |
| Approval | |
| RF | CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G) *CE certification is only for the device sold in the European region. |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, *CE and RCM certifications are only for the device sold in the European region. |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1, *CE and LOA certifications are only for the device sold in the European region. |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006, *CE certification is only for the device sold in the European region |
| Protection | IP67: IEC 60529-2013 |
Xuất xứ: Trung Quốc.
