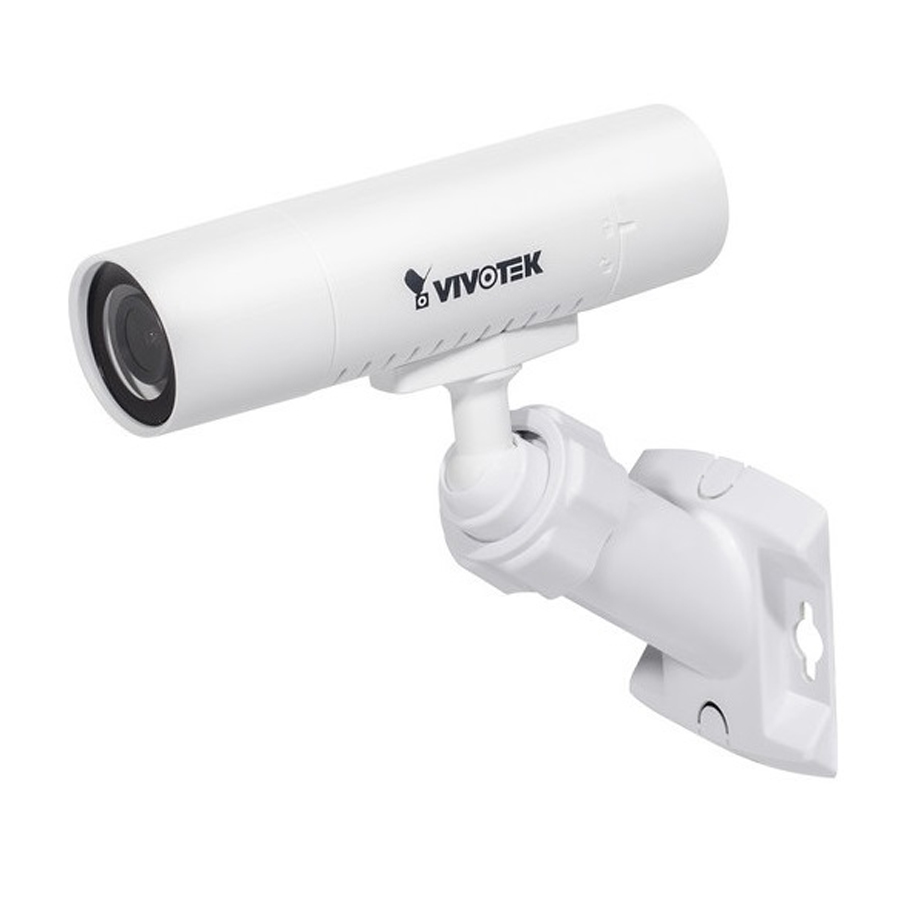

Camera IP Full HD 2.0 Megapixel Vivotek IB8168
- Cảm biến hình ảnh: 1/2.7 inch Progressive CMOS
- Chuẩn nén hình ảnh: H.264, MJPEG (Dual Codec)
- Độ phân giải: 1920 x 1080 (2.0 Megapixel)
- Tốc độ tối đa khung hình: 15 hình/ giây
- Chức năng quan sát Ngày và Đêm (IR-CUT filter)
- Ống kính cố định: 3.6 mm
- Độ nhạy sáng: 0.58 Lux @ F1.8
- Tích hợp khe cắm thẻ nhớ MicroSD/SHDC/SDXC
- Tích hợp 802.3af, chức năng cấp nguồn qua mạng PoE
- Hỗ trợ hệ điều hành: Microsoft Windows 7/ Vista/ XP/ 2000
- Thiết kế kích thước Ultra-mini
- Chức năng hồng ngoại thông minh Smart IR
- Kết nối mạng: 10Base-T/100 Base-Tx Ethernet (RJ-45)
- Cài đặt dễ dàng
Đặc tính kỹ thuật
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 16 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/2.7 inch progressive CMOS |
| Maximum Resolution | 1920 x 1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6 mm |
| Aperture | F1.8 |
| Field of View | 97° (horizontal) |
| 52° (vertical) | |
| 113° (diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| Minimum Illumination | 0.58 Lux @ F1.8 |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | In both compression: 15 fps @ 1920x1080, 30 fps @ 1280x720 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 53 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Configurable video cropping for bandwidth saving | |
| Image Settings | Adjustable image size, quality and bit rate |
| Time stamp, text overlay, flip & mirror | |
| Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks | |
| Scheduled profile settings | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Interface | 10Base-T/100 BaseTX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power input | IEEE 802.3af PoE Class 1 |
| Power consumption | Max. 2.3 W |
| Dimensions | Ø32 mm x 117 mm (w/o bracket) |
| Weight | Net: 83g |
| Safety Certifications | CE, C-Tick, FCC ( Class B ), LVD, VCCI |
| Operating Temperature | Starting Temperature: -10°C ~ 40°C (14°F~ 104°F) |
| Working Temperature: -20°C ~ 40°C (-4°F~ 104°F) | |
| System Requirements | |
| Operating System | Microsoft Windows 7 / Vista / XP / 2000 |
| Browser | Mozilla Firefox 7 - 10 ( Streaming only ) |
| Internet Explorer 7.x ,8.x, 9.x, 10.x | |
| Other Players | VLC: 1.1.11 |
| QuickTime: 7 or above | |
- Sản xuất tại Taiwan
- Bảo hành: 12 tháng
