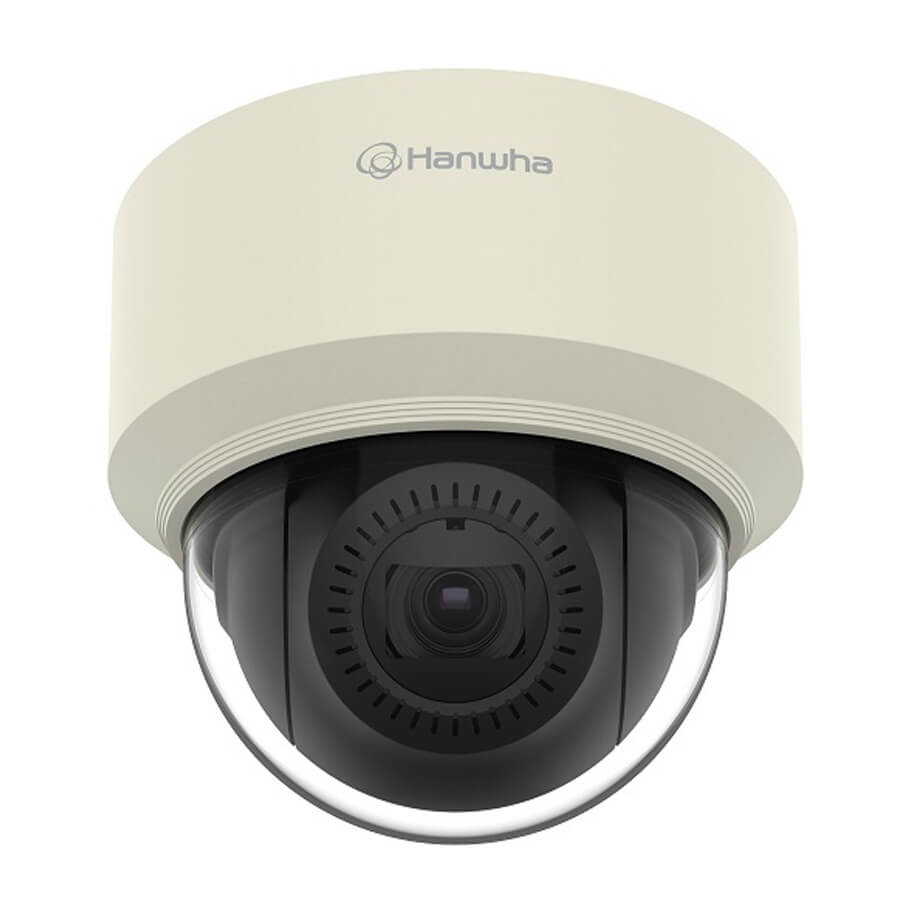

Camera IP Dome extraLUX 2.0 Megapixel Hanwha Vision XND-6085
- Cảm biến hình ảnh: 1/2 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ 2 khe cắm thẻ nhớ mirco SD/SDHC/SDXC dung lượng lưu trữ 512GB.
- Ống kính: 4.1 ~ 16.4mm (motorized varifocal).
- Zoom quang: 4x.
- Zoom số: 24x.
- Góc quan sát theo chiều ngang: 100° (Wide) ~ 26.2° (Tele).
- Góc quan sát theo chiều dọc: 54° (Wide) ~ 14.8° (Tele).
- Góc quan sát theo phương chéo: 116° (Wide) ~ 30° (Tele).
- Chức năng camera quan sát Ngày và Đêm.
- Chức năng chống ngược sáng WDR (150dB).
- Chức năng chống sương mù Defog.
- Chức năng phát hiện chuyển động Motion detection.
- Chức năng điều chỉnh độ lợi AGC.
- Hỗ trợ WiseStreamII.
- Hỗ trợ âm thanh: 2 chiều.
- Hỗ trợ LDC (Lens distortion correction).
- Tiêu chuẩn chống thấm nước: IP51 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK08.
- Chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC.
- Công suất tiêu thụ: Tối đa 8.6W (12VDC), Max. 10.2W (PoE).
- Kích thước: Ø160.0 x 140.0mm.
- Trọng lượng: 1.1kg.
Đặc tính kỹ thuật
| VIDEO | |
| Imaging Device | 1/2 inch 2.17M CMOS |
| Total Pixels | 1,952(H) x 1,113(V) approx 2.17M pixels |
| Effective Pixels | 1,945(H) x 1,097(V) approx 2.13M pixels |
| Scanning System | Progressive Scan |
| Min. Illumination | Color: 0.004 Lux (1/30sec, F0.94), B/W: 0.0004 Lux (1/30sec, F0.94) |
| S / N Ratio | 50dB |
| Video Out | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for Installation |
| USB: Micro USB Type B, 1280 x 720 for Installation | |
| LENS | |
| Focal Length (Zoom Ratio) | 4.1 ~ 16.4mm (Optical 4x) |
| Max. Aperture Ratio | F0.94(Wide) ~ F2.4(Tele) |
| Angular Field of View | H: 100° (Wide) ~ 26.2° (Tele) / V : 54° (Wide) ~ 14.8° (Tele) / D : 116° (Wide) ~ 30° (Tele) |
| Min. Object Distance | 0.7m (2.30ft) |
| Focus Control | Simple Focus (motorized V/F) / Manual |
| Lens / Mount Type | DC Auto Iris / Board-in Type |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | ±175° / ±73° / ±175° |
| PTR Control | Remote adjustment (Max. 200 cycles) |
| OPERATIONAL | |
| Camera Title | Off / On (Displayed up to 85 Characters) |
| - W/W: English / Numeric / Special Characters | |
| - China: English / Numeric / Special / Chinese Characters | |
| - Common: Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), | |
| Transparency, Auto Scale by Resolution | |
| Day & Night | Auto (Electrical) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea, 8Point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) |
| - Color : Gray / Green / Red / Blue / Black / White | |
| - Mosaic | |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level Adjusment |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24X, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway : 90° /270° |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, |
| Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection, | |
| Motion detection, Digital auto tracking, Sound classification, People counting, | |
| Heatmap, Queue management | |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File Upload Via FTP, E-mail, Notification via e-mail, Local Storage (SD / SDHC / |
| SDXC) or NAS recording at event triggers, External output, DPTZ preset | |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264: Max. 30fps at all resolutions, MJPEG: Max. 30fps |
| Smart Codec | Manual Mode (Area-based : 5ea) |
| WiseStreamII | Support |
| Video Quality Adjustment | H.265 / H.264 / MJPEG: Target bitrate level control |
| Bitrate Control Method | H.265 / H.264: CBR or VBR, MJPEG: VBR |
| Streaming Capability | Multiple streaming (Up to 10 Profiles) |
| Audio In | Selectable (Mic in / Line in), Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm |
| Audio Compression Format | G.711 u-law / G.726 Selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz | |
| G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz | |
| Audio Communication | Bi-directional (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication, IP address |
| filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 Users at Unicast Mode |
| Edge Storage | SD / SDHC / SDXC 2Slot (Up to 512GB) - Continuous recording (1st Slot to 2nd Slot) |
| - Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. | |
| NAS (Network Attached Storage), Local PC for Instant Recording | |
| Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Non-plugin Web Viewer | |
| - Supported Browser: Google Chrome, MS Edge, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in Web Viewer | |
| - Supported Browser: MS Explore 11, Apple Safari 9 (Mac OS X only) | |
| Central Management Software | SmartViewer, SSM |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH |
| Start up should be done at above -10°C (+14°F) | |
| Storage Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection / Vandal Resistance | IP51 / IK08 |
| ELECTRICAL | |
| Input Voltage / Current | 12VDC, PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 4.7W |
| MECHANICAL | |
| Color / Material | Ivory / Plastic |
| Dimensions | Ø160.0 x 140.0mm |
| Weight | 1.10 kg |
- Bảo hành: 24 tháng.
