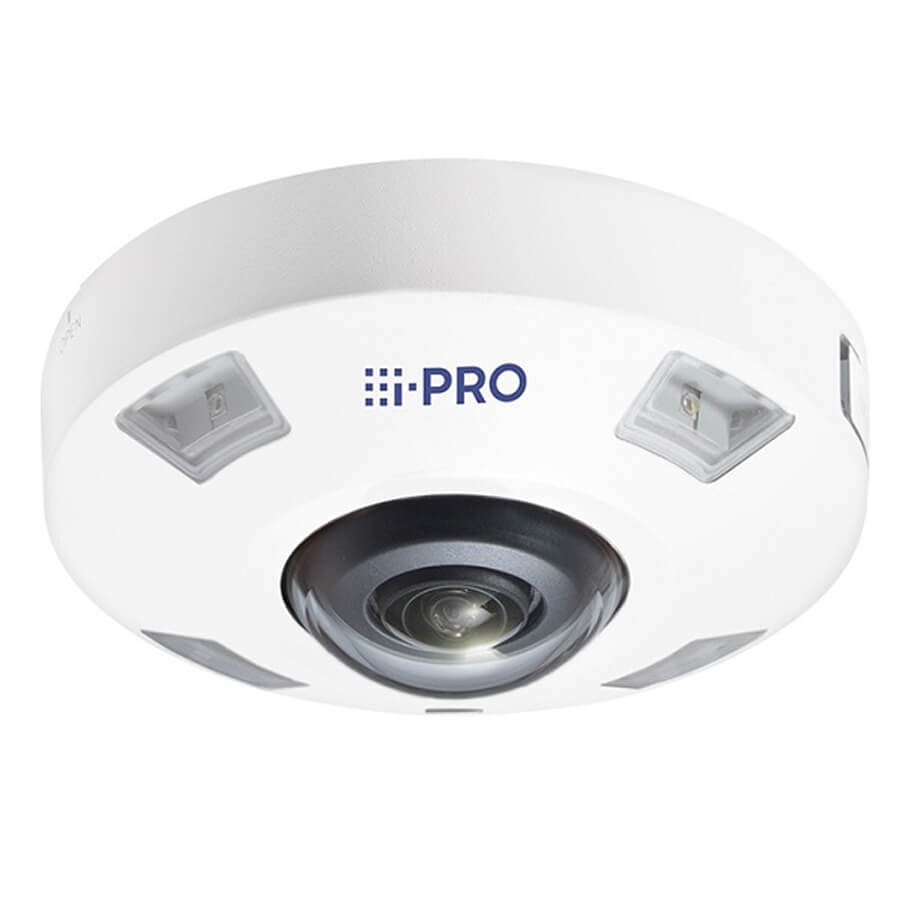

Camera IP Fisheye hồng ngoại 12.0 Megapixel I-PRO WV-X4573LM
- Cảm biến hình ảnh: Approx. 1/2 type 12MP CMOS image sensor.
- Độ phân giải: 12.0 megapixels.
- Độ nhạy sáng tối thiểu:
+ Color: 0.3 lx, BW: 0.04 lx (F1.9, Maximum shutter: Off (1/30s), AGC: 11);
+ BW: 0 lx (F1.9, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit);
+ Color: 0.02 lx, BW: 0.003 lx (F1.9, Maximum shutter: max. 16/30s, AGC: 11)
- Hỗ trợ các tính năng camera: BLC, HLC, DNR, AGC, ICR, Super Dynamic 84dB.
- Hỗ trợ tính năng iA (intelligent Auto).
- Hỗ trợ chuẩn nén H.265 Smart Coding.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Camera | |
| Image Sensor | Approx. 1/2 type 12MP CMOS image sensor |
| Minimum Illumination | Color: 0.3 lx, BW: 0.04 lx (F1.9, Maximum shutter: Off (1/30s), AGC: 11) BW: 0 lx (F1.9, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.02 lx, BW: 0.003 lx (F1.9, Maximum shutter: max. 16/30s, AGC: 11) |
| Intelligent Auto | On / Off |
| Maximum Shutter | max. 16/30s to Max. 1/10000s |
| Wide Dynamic Range | On / Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.84 dB (Wide Dynamic Range : On, level : 31) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) |
| IR LED Light | High* / Middle / Low / Off *Maximum irradiation distance : 10m {approx. 33 ft} (Mounting height : Approx. 3m, Peripheral intensity control : On) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type8 *Bundled License |
| Privacy Zone | On / Off, Up to 8 zones available |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Fixing angle adjustment | -5°, 0°, +5° |
| Lens | |
| Zoom Ratio | 1x |
| Digital (Electronic) Zoom | Choose from 3 levels of x1, x2, x4 |
| Focal Length | 1.4 mm {1/16 inches} |
| Maximum Aperture Ratio | 1 : 1.9 |
| Focus Range | 0.5 m {19-11/16 inches} - ∞ |
| Angular Field of View | Horizontal : 183° Vertical : 183° |
| DORI | |
| Distance to the object in the center of the image | Identify (250 ppm / 76 ppf) : 3.0 m / 9.8 ft |
| Coverage radius when mounted at a height of 3 m (10 ft) | Identify (250 ppm / 76 ppf) : 0.3 m / 0.9 ft |
| Browser GUI | |
| Camera Control | Brightness, AUX On / Off |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T / 100Base-TX, M12 connector |
| Resolution | •Fisheye mode (max. 30 fps/25 fps) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320 •Quad PTZ mode (max. 15 fps/12.5 fps), Single PTZ mode (max. 15 fps/12.5 fps) 2560×1920 / 2048×1536 / 1600×1200 / 1280×960 / 800×600 / VGA / QVGA |
| Resolution | •Double Panorama mode (max. 15 fps/12.5 fps) 2560×1440 / 1920×1080 / 1280×720 / 640×360 / 320×180 •Fisheye + Double Panorama mode (max. 15 fps/12.5 fps) (Fisheye) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320 (Double Panorama) 1280×720 / 640×360 / 320×180 •Fisheye + Quad PTZ mode (max. 15 fps/12.5 fps) (Fisheye) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320 (Quad PTZ) 1280×960 / 800×600 / VGA / QVGA •Quad streams mode (Single PTZ (Quad streams)) 1280×960 / 800×600 / VGA / QVGA (max. 15 fps/12.5 fps) (Quad PTZ) 2560×1920 / 2048×1536 / 1600×1200 / 1280×960 / 800×600 / VGA / QVGA (max. 5 fps) |
| Resolution | •Panorama mode (max. 15 fps/12.5 fps) 2560×1440 / 1920×1080 / 1280×720 / 640×360 / 320×180 •Fisheye + Panorama mode (max. 15 fps/12.5 fps) (Fisheye) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320 (Panorama) 1280×720 / 640×360 / 320×180 |
| H.265/H.264 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS : On / Off |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps , G.711 : 64 kbps , AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP |
| Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC JPEG recording : Manual REC / Alarm REC (Pre/Post) Compatible SDXC/SDHC/SD card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad / iPhone, AndroidTM terminals |
| ONVIF Profile | G / S / T |
| Alarm | |
| Alarm Source | 3 terminals input, VMD, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output |
| Input/Output | |
| Monitor output (for adjustment) | VBS : 1.0 V [p-p] / 75 Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera |
| Audio Input | For microphone ø3.5 mm stereo mini jack, Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : –48 dB ±3 dB (0 dB=1 V / Pa,1 kHz)) Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V For line Input level : Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV |
| External I/O Terminals | ALARM IN1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN3 (Alarm input 3/ AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024, EN55035 ECE-R10, EN50498 compliant, EN50121 |
| Power Source and Power Consumption | DC power supply : DC 12 V 1.04 A/Approx. 12.5 W PoE (IEEE802.3af compliant, Alternative A) Device : DC 48 V 260 mA/Approx. 12.5 W (Class 0 device) |
| Ambient Operating Temperature | IR LED : On –40 °C to +50 °C {–40 °F to +122 °F} IR LED : Off –40 °C to +60 °C {–40 °F to +140 °F} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Dehumidification Device | Rosahl element |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | 50J (IEC 60068-2-75 compliant), IK10 (IEC62262) |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Railway Application | EN45545 compliant, EN50155-TX |
| Dimensions | When using the attachment plate only : ø154 mm × 60.3 mm (H){ø6-1/16 inches × 2-3/8 inches (H)} Dome radius 35mm {1-3/8 inches} |
| Mass (Approx.) | When using the attachment plate only : Approx. 880 g {1.94 lbs} |
| Finish | Main body : Aluminum die cast , i-PRO white Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Dome section : Polycarbonate resin, Clear |
- Bảo hành: 12 tháng.
