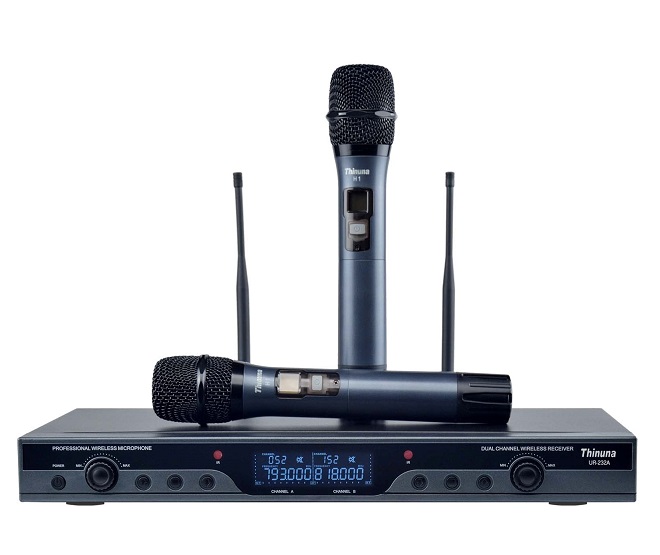

Bộ Micro không dây cầm tay Thinuna UR-232A
- A variety of transmitter can be choosing: hand held, lavalier, headset, guitar.
- Optional frequencies.
- 600MHz and 880MHz with two UHF.
- The simple and convenient IR method.
- PLL Frequency Synthesis Technology.
- Receiver frequency stability ±0.002%, transmitter FM maximum modulation frequency deviation ± 45KHz.
- Noise lock squelch control + Tone code navigation lock squelch control.
- Audio dynamic extension and AGC circuit.
- The receiver with LCD display.
- Visual display the receiving frequencies and channels, AF output audio indicator, RF signal receive indicator.
- Receiver with Balanced XLR output and 1/4” direct output.
- Transmitter with mute switch, power source switch and battery power indicator.
- Transmitter RF high and low transmit power adjustment.
- Smart battery warning display.
- 1U space of the receiver.
- Comes with rack mounting ear accessories.
- 1.5V universal No.5 battery powered, more than 12 hours of battery life, it depends of the transmitting power and the operating environment.
Specifications
| Model | UR-232A |
| Material | Metal box |
| Radio-frequency stability | 0.005%(-10~40℃) |
| Frequency Range | UHF640~690MHz |
| Frequency band width | 50MHz |
| Receiving mode | Dual changing |
| Antenna interface | BNC50Ω |
| Supply Voltage | CD11-16V(Rated 12V) |
| sensibility | 10dbuV(S/N>80dB) |
| S/N Ratio | >106dB(IHF-A) |
| T.H.D. | <0.5%@1KHz |
| Audio output | Unbalanced:+0dB(1V)/5KΩ Balanced:+4dB(1.25V)/600 |
| Frequency Response | 50Hz~18KHz±1dB |
| Output socket | XLR Balanced and 6.3φ Unbalanced socket |
| Dimensions | 482(W) × 44(H) × 176(D) mm |
- Bảo hành: 12 tháng.
