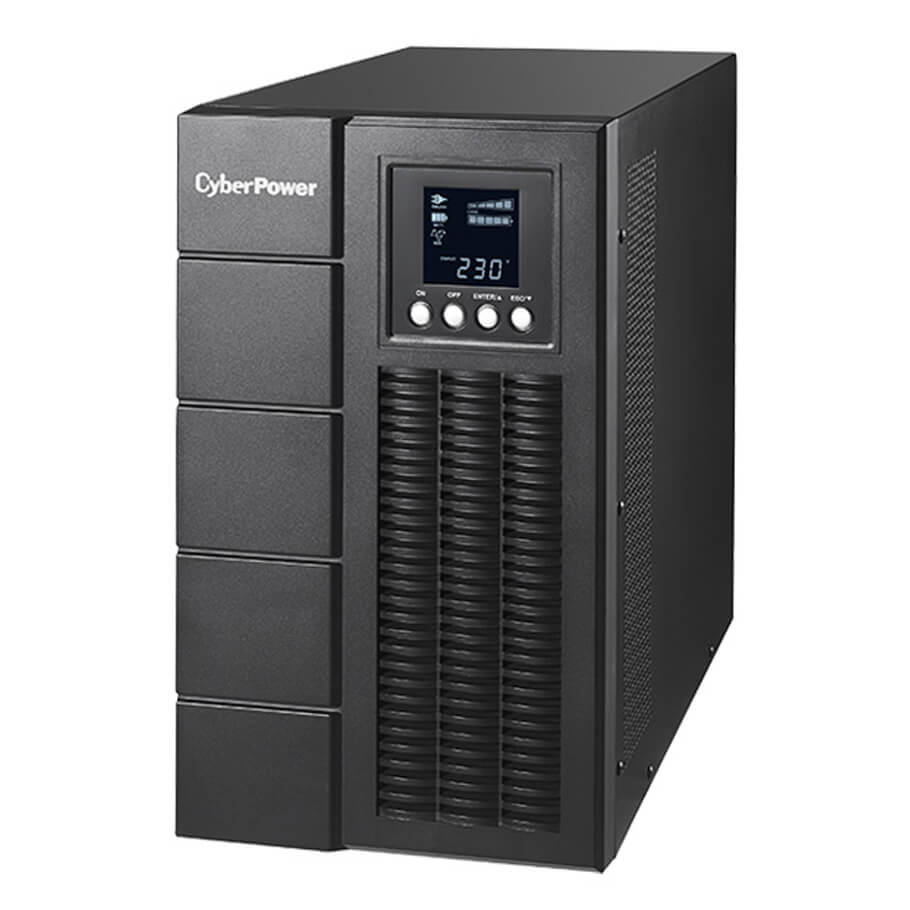

Bộ lưu điện UPS CyberPower OLS3000E
– Công suất bộ lưu điện: 3000VA/ 2700W
– Công nghệ: Online (Double Conversion)
– Hệ số công suất: 0.8
– Điện áp ngõ vào: 190-280VAC
– Tần số ngõ vào: 40-70 Hz
– Điện áp ngõ ra: 208, 220, 230, 240VAC (Configurable)
– Tần số ngõ ra: 50Hz/ 60Hz ± 0.5%
– Dạng sóng ngõ ra: Sóng sin chuẩn
– Ắc quy: 12V/ 9AH
– Thời gian sạc: 5 giờ
– Thay thế pin nóng
– Màn hình hiện thị LCD và LED
– Bảo vệ chống sét lan truyền: RJ11/RJ45 (One In/ One Out)
– EPO (Emergency Power Off): Ngắt nguồn ngõ ra khẩn cấp
– Cổng kết nối: RS232, USB
– SNMP/ HTTP Remote Management Capability (Optional)
– Phần mềm: PowerPanel®Business Edition
– Kiểu dáng: Tower
Đặc tính kỹ thuật
|
Model |
OLS3000E |
|
Capacity (VA/W) |
3000VA / 2700W |
|
Typology |
Online (Double Conversion) |
|
Energy-Saving Technology |
Yes, ECO Mode Efficiency > 95% |
|
Input |
|
|
Voltage Range |
120~139VAC for 0~25% Load |
|
140~159VAC for 0~50% Load |
|
|
160~179VAC for 0~75% Load |
|
|
180~280VAC for 0~100% Load |
|
|
Input Type |
IEC C20 |
|
Frequency Range |
40~70Hz |
|
Output |
|
|
UPS Outlets (Numbers) |
(2+2) IEC C13, (1) IEC C19, Terminal Block |
|
On Battery Output Voltage |
Pure Sine Wave at 208, 220, 230, 240 VAC (Configurable) |
|
On Battery Output Voltage Distortion (@Nominal Battery Voltage) |
≤ 3% (Linear Load), ≤ 5% (Non-Linear Load) |
|
On Battery Output Frequency |
50 Hz / 60 Hz (Auto-Sensing or Configurable) ± 0.5% |
|
Transfer Time (Typical) |
0ms |
|
Overload Protection |
AC Mode: Warning only @ 110%>Load>105% |
|
Transfer to bypass after 60sec @ 120%>Load>110% |
|
|
Transfer to bypass immediately@ Load>120% Battery Mode: Warning only @ 110%>Load>105% |
|
|
Shutdown after 10sec @ 120%>Load>110%, |
|
|
Shutdown immediately @ Load>120% |
|
|
Bypass Mode: Warning only @ 130%>Load>105% |
|
|
Shutdown immediately @ Load>130% |
|
|
Surge Protection and Filtering |
|
|
Surge Protection |
Yes |
|
DSL/Phone/Fax/Modem protection |
RJ11/RJ45(One In/One Out) |
|
Short Circuit Protection |
UPS Output Cut off Immediately or Circuit Breaker Protection |
|
Battery |
|
|
Sealed Maintenance Free Lead Acid Battery |
(6) 12V / 9AH |
|
Configurable External Battery Pack (Max.) |
3 |
|
Typical Recharge Time |
5 |
|
Runtimes |
|
|
Half load-Full load (mins) |
14/5 |
|
Status Indication |
|
|
Indicators |
Power On, Line Mode, Battery Mode, Bypass Mode, ECO Mode, C/F Mode, Fault, Replace Battery |
|
Audible Alarms |
Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
|
Communication |
|
|
Power Management Software |
PowerPanel® Business Edition |
|
Management |
|
|
Self-Test |
Yes |
|
Auto-Charge/Auto-Restart |
Yes |
|
Auto-Overload Recovery |
Yes |
|
Cold Start (DC Start) |
Yes |
|
Connectivity Ports |
(1) Serial Port (RS232), (1) USB Port, (1) EPO/ROO |
|
SNMP/HTTP Capable |
Optional |
|
Dimensions |
337 x 196 x 416 mm |
|
Weight |
28.2 kg |
– Bảo hành: 2 năm
