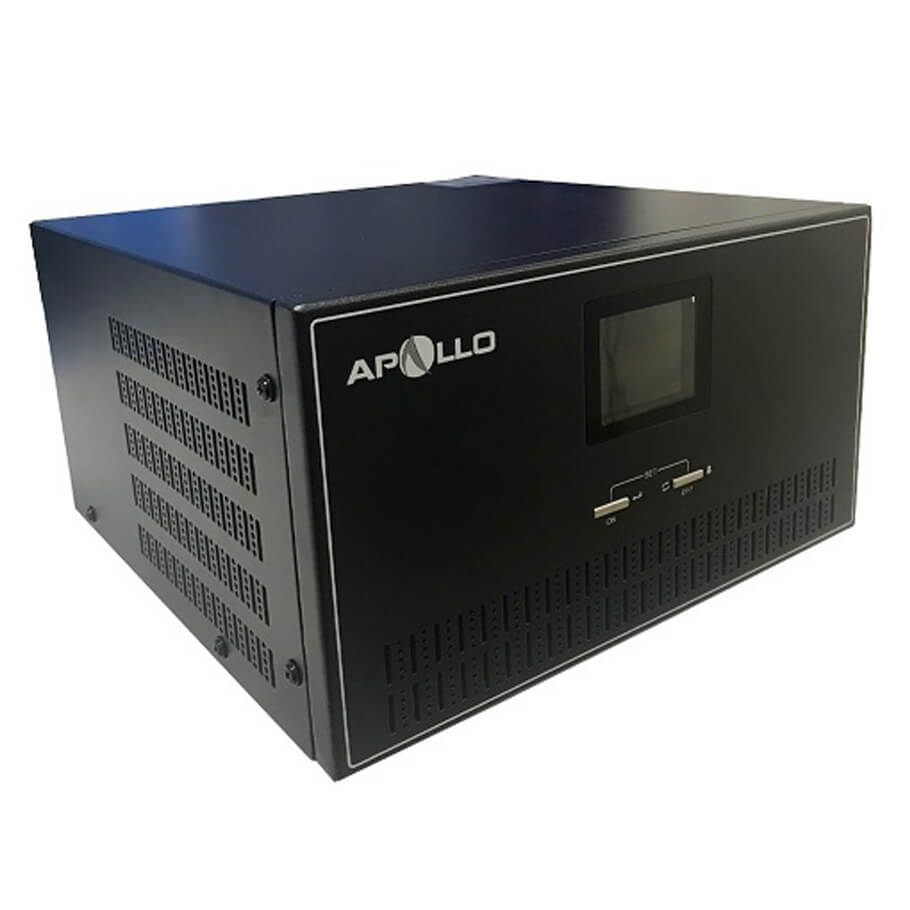

Bộ lưu điện UPS APOLLO HI1500
- Công nghệ: Line interactive, sóng sin chuẩn.
- Điện áp vào: 220VAC.
- Tần số nguồn vào: 50Hz/60Hz.
- Điện áp ra: 220VAC.
- Cung cấp cho các thiết bị một nguồn điện ổn định và tin cậy.
- Có chức năng tự nạp điện cho ắc quy dù UPS đang ở chế độ tắt.
- Ngưỡng điện áp vào rộng.
Đặc tính kỹ thuật
| DC INPUT | |
| Nominal input voltage | 12V |
| DC input voltage range | 10V ~ 15V |
| AC INPUT | |
| Bypass voltage | 0 ~ 264 Vac for 220 Vac / 230 Vac / 240 Vac, 0 ~ 132 Vac for 100 Vac / 110 Vac / 115 Vac / 120 Vac |
| AC voltage | 150 ~ 282 Vac for 220 Vac, 156 ~ 294 Vac for 230 Vac, 163 ~ 307 Vac for 240 Vac, 68 ~ 128 Vac for 100 Vac, 75 ~ 141 Vac for 110 Vac, 79 ~ 148 Vac for 115 Vac, 82 ~ 154 Vac for 120 Vac. |
| Frequency | 50Hz / 60Hz (auto-sense & settable: 5% ~ 15%, default 15%), 42.5 ~ 57.5 Hz for 50 Hz, 51 ~ 69 Hz for 60 Hz |
| Input voltage of generator | 99 ~282 Vac for 220 Vac, 104 ~ 294 Vac for 230 Vac, 108 ~ 307 Vac for 240 Vac, 45~128 Vac for 100 Vac, 50 ~ 141 Vac for 110 Vac, 52 ~148 Vac for 115 Vac, 54 ~ 154 Vac for 120 Vac. |
| Input frequency of generator | 40 ~ 70 Hz |
| Input power limitation | Rated power 10% ~ 150%, regulating step 10%, default 120% |
| OUTPUT | |
| DC mode output voltage | 220 Vac / 230 Vac / 240 Vac ± 5% or 100 Vac / 110 Vac / 115Vac / 120 Vac ± 5% (settable) |
| AC mode output voltage | 174 ~ 242 Vac for 220 Vac, 182 ~ 253 Vac for 230 Vac, 190 ~ 264 Vac for 240 Vac, 79 ~ 109 Vac for 100 Vac, 87 ~ 121 Vac for 110 Vac, 93 ~ 125 Vac for 115 Vac, 95 ~ 133 Vac for 120 Vac. |
| Nominal output frequency | 50Hz / 60Hz ± 0.3 (auto-sense & settable) |
| Output waveform | Pure sine wave |
| Output power | 1000W |
| Efficiency | Max. 95% (mains mode); Max. 80% (inverter mode) |
| ECO mode | Settable, load < 3%, enter in 80s |
| No-load shutdown | Settable, time can be set (1 ~ 99 min), load can be set (3% ~ 50%) |
| Transfer time | ≤10 ms |
| Power factor | 1.0 |
| THDV | < 5% (linear load) |
| Inductive load | Yes |
| Motor load | Yes |
| Rectifier load | Yes |
| Overload | Mains mode: 110% for 120 s, 125% for 60 s, 150% for 10 s (switch to bypass) Inverter mode: 110% for 60 s; 125% for 10 s; 150% for 10 s (shut down) |
| BATTERIES | |
| Charging current (selectable) | Default 20 A, regulating step 1 A (< 10A) / 5 A (> 10A) Max. 40 A |
| Equalizing charge voltage | Single battery 14.4 Vdc (default), 13.6 ~ 15 Vdc adjustable |
| Floating charge voltage | Single battery 13.7 Vdc (default), 13.2 ~ 14.6 Vdc adjustable |
| Charge mode | 3 stage charge mode |
| DOD | Single battery 10.8 Vdc (default), 9.6 ~ 13 Vdc settable |
| EOD | Single battery 10.2 Vdc (default), 9.6 ~ 11.5 Vdc adjustable |
| Reverse warning | Buzzer |
| OTHERS | |
| Protections | Overload – short-circuit – overvoltage – undervoltage – overcharge – overtemperature – excessive low battery |
| Human-machine interface | LCD & BUZZER |
| Operating temperature | 0℃ ~ 40℃ |
| Operating humidity | Relative humidity ≤ 93% |
| Dimensions (W × D × H) | 293 × 280 × 160 mm |
| Weight | 14.0 kg |
- Bảo hành: 24 tháng.
