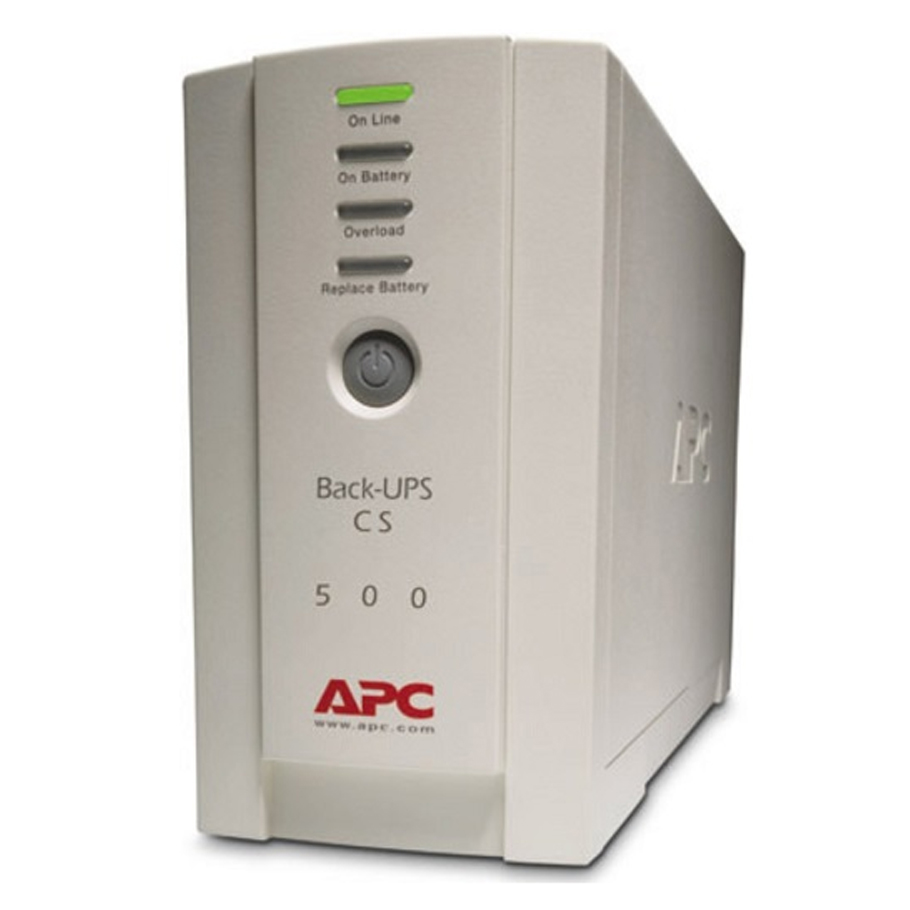

Bộ lưu điện UPS APC BK500EI
- Công suất: 500VA/300W.
- Điện thế ngõ vào: 230VAC.
- Tần số ngõ vào: 47-63Hz±3Hz.
- Dạng sóng: Sóng sine.
Đặc tính kỹ thuật
| Output | |
| Output Capacity | 500VA/300W |
| Output Voltage / Frequency (On utility) | 230V / 47-63 Hz |
| Output Voltage / Frequency (On battery) | 230V +/- 8%, 50 or 60 Hz +/- 1 Hz |
| Output Connections | 4 IEC 320 C13 outlets (3 battery backup and surge protection, 1 surge protection only and 2 IEC Jumpers) |
| Waveform Type | Stepped Approximation to Sine Wave |
| Input | |
| Input Voltage / Frequency | 230V / 47-63 Hz +/- 3 Hz |
| Input Connection | 1.2M power cable IEC-320-C14 |
| Surge Protection | |
| AC Power Surge Protection | All outlets |
| Data Line Surge Protection | (2) RJ-45 phone/fax/modem/DSL |
| Physical | |
| Unit Dimensions (H x W x D) | 165 x 91 x 284 mm |
| Unit Weight | 6.32 kg |
| Shipping Dimensions (H x W x D) | 178 x 241 x 368 mm |
| Shipping Weight | 7.05 kg |
| Color | White |
| Battery | |
| Battery Type | Maintenance-free, sealed lead-acid battery, leak proof |
| Battery Size | 12 Volt, 7Ah |
| Management | |
| Alarms | Visual (LED) and audible alarms |
| Auto-Shutdown Software | PowerChute Personal Edition |
