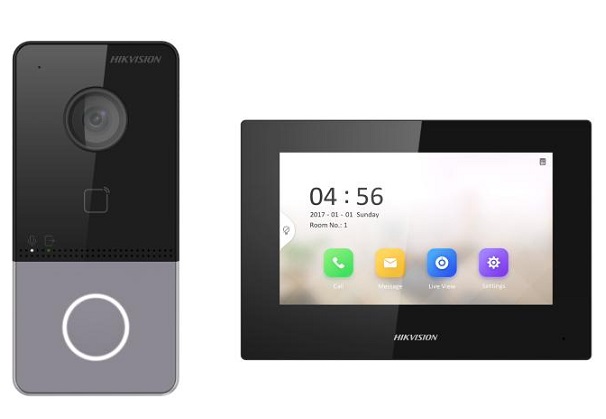

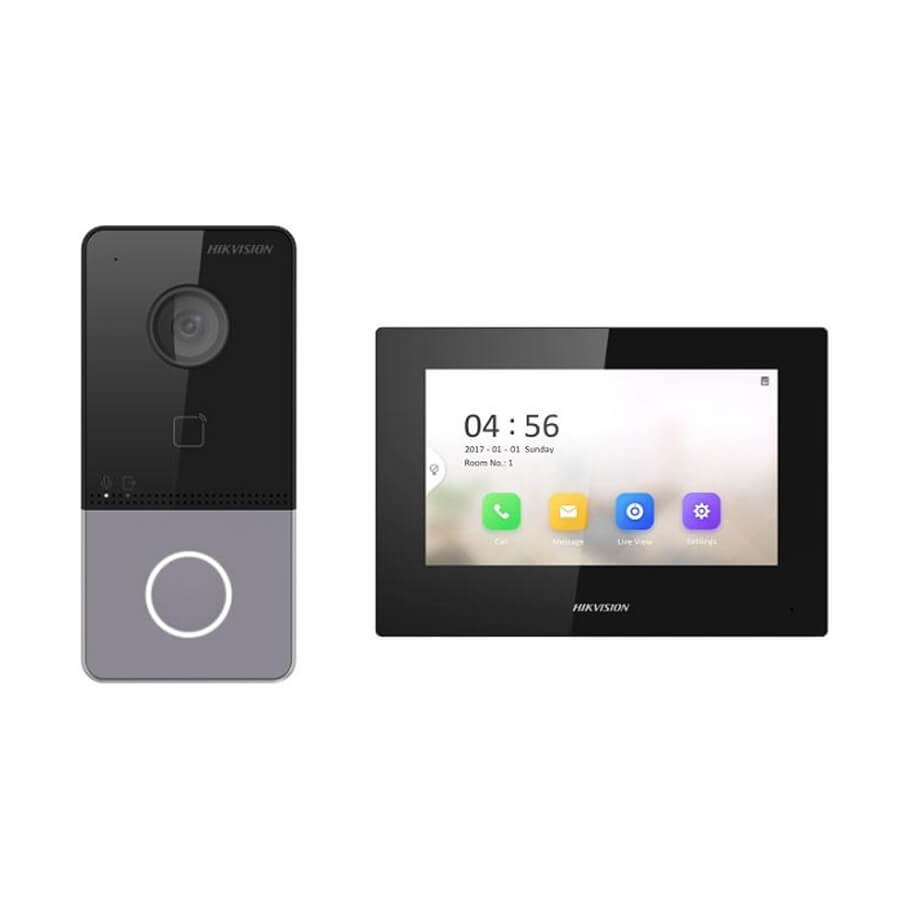

Bộ Kit chuông cửa có hình IP HIKVISION DS-KIS605-P(C)
- Bộ Kit chuông cửa IP dành cho biệt thự hoặc nhà ở, có một nút gọi, bao gồm: DS-KV6113-WPE1(C) x1; DS-KH6320-LE1(B) x1; PSU x2
- Màn hình cảm ứng màu 7 inch với độ phân giải 1024 × 600.
- Xem video trực tiếp từ các trạm cửa và camera liên kết.
- Cấu hình từ xa qua Web.
- Bộ đổi nguồn đi kèm trong gói (tiêu chuẩn Châu Âu).
Thông số kỹ thuật
| Door station | |
| Camera | 2MP HD camera |
| Resolution | Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 |
| Night vision | Low illumination IR supplement mode: 3m |
| WDR | True WDR |
| Field of view | Horizontal: 129 ° Vertical: 75° |
| Video Compression Standard | H.264 |
| Stream | Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps |
| Motion detection | Support |
| BLC | Support |
| DNR | Support |
| Anti-flicker frequency | 50 Hz, 60 Hz |
| Door station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Audio intercom | Two-way audio communication |
| Door station | |
| RS-485 | 1 |
| Alarm input | 4 |
| Debugging port | 1 |
| Grounding | 1 |
| TAMPER switch | 1 |
| Door station | |
| Power consumption | ＜ 10 W |
| Working temperature | -40°C to +53°C(-40°F to 127.4°F) |
| Working humidity | 10% to 95% |
| Dimension | 138 mm × 65 mm × 27 mm |
| Installation | Surface mounting |
| Protection level | IP65 |
| Button | 1 |
| Indicator | 2 |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Door station | |
| Operation system | Embedded Linux operation system |
| Operation mode | Single-button |
| Flash | 16 M, 32 M |
| RAM | 256 M |
| Door station | |
| Relay | 1 |
| Reading frequency | 13.56 MHz |
| Door station | |
| Network protocol | TCP/IP, RSTP |
| Wired network | 10/100 Mbps Ethernet |
| Indoor station | |
| Display screen | 7-inch TFT LCD |
| Display resolution | 1024 × 600 |
| Operation method | Capactive touch |
| Indoor station | |
| Audio input | Build-in omnidirectonal microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711U, G.711A |
| Audio compression Rate | 64 Kbps |
| Indoor station | |
| Network interface | RJ45, standard PoE for power supply |
| RS-485 | 1(Reserved) |
| Alarm input | 8 zones |
| Relay output | 2(Reserved) |
| Power input | 2 pins |
| Indoor station | |
| Power supply | 12 VDC or standard PoE |
| Power consumption | ≤ 6 W |
| Working temperature | -10°C to 50°C (-14°F to 122°F) |
| Working humidity | 0% to 90% |
| Dimensions (W × H × D) | 200 mm × 140 mm × 15.1 mm |
| Installation | Wall mounting |
| Weight | 683g (with packaging) 355g (without packaging) |
| Indoor station | |
| Operation system | Embedded RTOS operation system |
| Memory | 64 MB |
| Flash | 16 MB |
| Indoor station | |
| Wired network | 10/100 Mbps self-adaptive |
| Protocol | TCP/IP, SIP, RTSP |
- Bảo hành: 24 tháng.
