Bộ kích điện Inverter ECOs ET700 (12VDC/LCD)

Trang Chủ >> Nguồn lưu điện-Ắc quy >> Bộ kích điện Inverter ECOs >> Bộ kích điện Inverter ECOs ET700 (12VDC/LCD)
Mã số:28483869

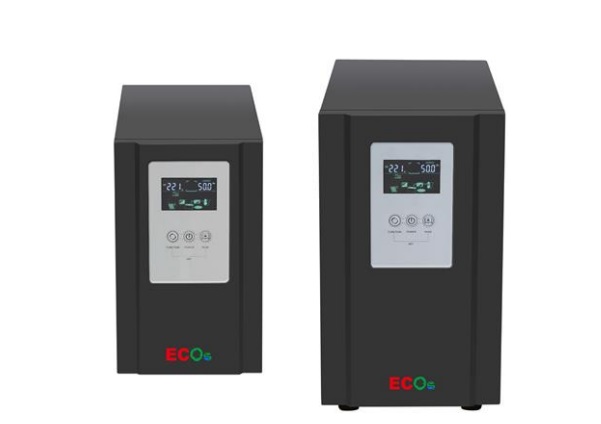

Bộ kích điện Inverter ECOs ET700 (12VDC/LCD)

Bộ kích điện Inverter ECOs ET700 (12VDC/LCD)

- Bộ kích điện Inverter ECOs ET700 (12VDC/LCD) sử dụng công nghệ Sóng Sin chuẩn, tần số thấp với biến áp cách ly giúp thiết bị chịu tải tốt hơn, mang đến khả năng sử dụng cho đa dạng thiết bị.

- Hiệu suất cao, chuyển đổi mềm thông minh.

- Chức năng bảo vệ an toàn vượt trội: Bảo vệ quá tải, quá áp, điện áp thấp, nhiệt độ cao, ngắn mạch.

- Thiết kế gọn gàng, thông minh, đầu vào, đầu ra hoàn toàn độc lập.

- Ứng dụng công nghệ AVR cho điện áp ổn định, an toàn.

- Công nghệ chuyển đổi điện tần số thấp, sử dụng biến áp cách ly cho phép RODI chịu tải tốt hơn, sử dụng tốt cho các thiết bị có dòng khởi động như động cơ quạt, máy bơm...

- Ổ cắm đa năng, phù hợp với đa phần các loại phích cắm lưu hành tại Việt Nam.

- Sóng đầu ra là sóng Sin chuẩn.

- Sử dụng tốt cho các thiết bị trở thuần, sử dụng được cho một số thiết bị quạt, motor công suất nhỏ.

- Vận hành êm ái, độ ồn thấp.

- Chế độ làm việc và quạt làm mát được MCU điều khiển thông minh, kéo dài tuổi thọ thiết bị, tiết kiệm điện năng tiêu thụ.

- Đạt các chứng chỉ ISO, CE, CTA, RoSH...

- Điện đầu ra là điện sạch 100%, công suất thực khả dụng theo công bố.

- Khả năng mở rộng thời gian lưu tốt hơn nhờ dòng sạc lớn (giúp sử dụng và bảo vệ được các bình ắc quy dung lượng lớn hơn).

- Có tùy chọn điều khiển sạc từ pin năng lượng mặt trời tích hợp.

Thông số kỹ thuật

Rated power 700W
Peak power (20ms) 2100VA
Start motor 0.5HP
Battery voltage 12VDC
Max AC charging current 0A - 20A (Depending on the model, The maximum charging power is ¼ of the rated power)
Built-in solar controller charging current (optional)  10A - 60A (PWM or MPPT)
Size (L x W x H) 340 x 165 x 283 mm
N.W 9.5kg
Input DC input voltage range: 10.5-15VDC (Single battery voltage)
AC input voltage range: 145-275VAC (220VAC)/ 155-285VAC (230VAC)/ 165-295VAC (240VAC)
AC input frequency range: 45-55Hz (50Hz)/ 55-65Hz (60Hz)
AC charging method: Three-stage (constant current, constant voltage, floating charge)
Output Efficiency (battery mode): ≥85%
Output voltage (battery mode): 110VAC±2%/ 120VAC±2%/ 220VAC±2%/ 230VAC±2%/ 240VAC±2%
Output frequency: 50Hz±0.5 or 60Hz±0.5 (battery mode)
Output wave (battery mode): Pure sine wave
Efficiency (AC mode): ≥99%
Output voltage (AC mode): 110VAC±10%/ 120VAC±10%/ 220VAC±10%/ 230VAC±10%/ 240VAC±10%
Output frequency (AC mode): Follow input
Output waveform distortion: ≤3% (Linear load-battery mode)
No load loss: ≤1% rated power(battery mode)
No load loss (AC mode): ≤2% rated power (charger does not work in AC mode)
No load loss (Energy saving mode): ≤10W
Battery type (selectable) VRLA battery: Charge voltage: 14.2V; Float voltage:13.8V (Single battery voltage)
Customize battery: Charging and discharging parameters of difference types of batteries can be customized according to user requirements
Protection Battery undervoltage alarm: Factory default: 11V (Single battery voltage)
Battery undervoltage protection: Factory default: 10.5V (Single battery voltage)
Battery overvoltage alarm: Factory default: 15V (Single battery voltage)
Battery overvoltage protection: Factory default: 17V (Single battery voltage)
Battery overvoltage recovery voltage: Factory default: 14.5V (Single battery voltage)
Overload power protection: Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection: Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection: >900C (Shut down output)
Alarm A: Normal working condition, buzzer no alarm sound
B: Buzzers sound 4 times per second when battery failure, voltage abnormality, overload protection
C: When the machine is turn on for the first time, the buzzer will promt 5 when the machine is normal
Inside solar controller (Optional) Charging mode: PWM or MPPT
PV input voltage range:
- PWM:15-44V
- MPPT: 15-120V
Max PV input voltage (Voc) (At the lowest temperature):
- PWM: 50V
MPPT: 150V
PV array maximum power:
12V system: 140W (10A)/ 280W (20A)/ 420W (30A)/ 560W (40A)/ 700W (50A)/ 840W (60A)/ 1120W (80A)/ 1400W (100A)
Standby loss: ≤ 3W
Maximum conversion efficiency: >95%
Working mode Battery first / AC first / Saving energy mode
Transfer time ≤ 4ms
Display LCD
Thermal method Cooling fan in intelligent slot
Communication (optional)  RS485/APP (Wifi monitoring or GPRS monitoring)
Environment

Operating temperature/storage: -10°C – 40°C/ -15°C – 60°C

Noise: ≤ 55dB

Elevation: 2000m (more than derating)

Humidity: 0-95%, No condensation

- Bảo hành: 12 tháng.

Giá: Vui lòng gọi
