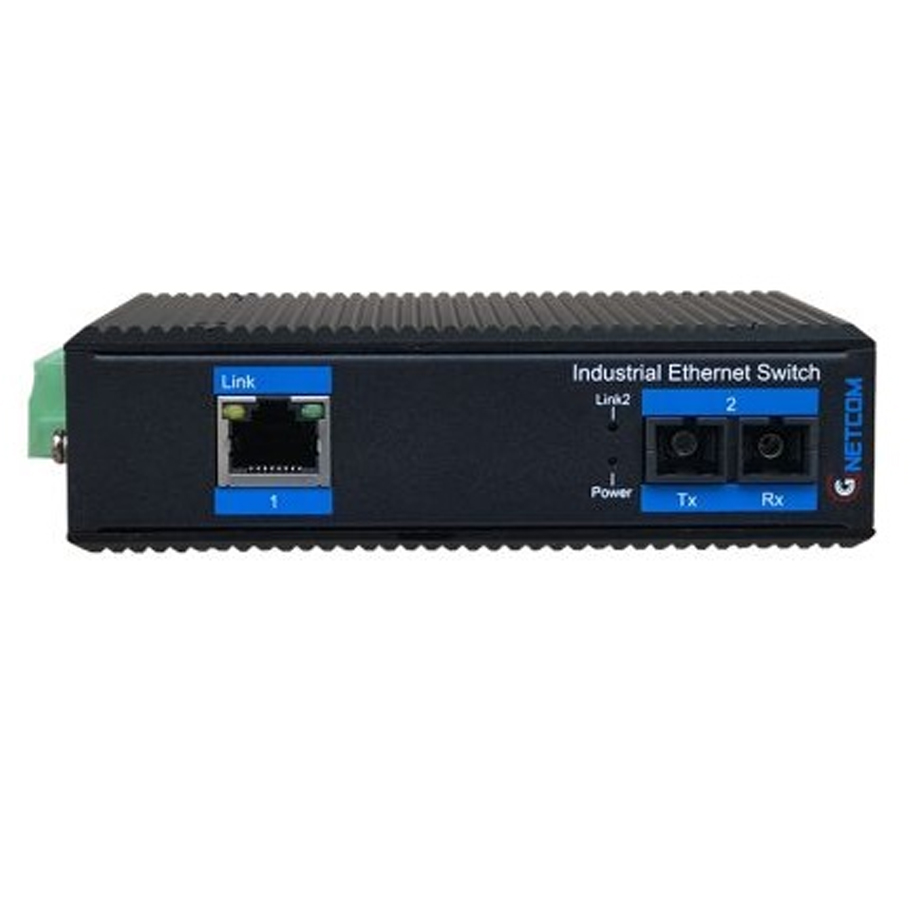

Bộ chuyển đổi quang PoE công nghiệp 10/100Mbps GNETCOM G-IES7101FE-20
- Switch quang PoE công nghiệp 1 Port 10/100M.
- Port: 1 x 10/100M PoE ports + 1 x 155M SC optical port Industrial PoE Switch, 1 port support IEEE 802.3af/at (Single-mode dual-fiber).
- Nhiệt độ: -40 đến 85°C.
- Nguồn cấp vào: DC48~57V.
Thông số kỹ thuật
| 10/100Base-TX Port | 1 port RJ-45 auto-MDI / MDI-X |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports:1 port support PoE | |
| Power Output:Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
| PoE port Auto detect AF/AT devices | |
| Output Voltage: DC48V | |
| Power Pin Assignment:1/2+;3/6- | |
| Power Type: End-span( Mid-span optional) | |
| 100Base-FX Port | 1 SC Interface |
| Fiber Port Type | SC / single-mode ,up to distance 20km |
| Optical Frequency | 1310nm/1310nm |
| Performance Specification | Bandwidth: 1.6Gbps |
| Packet Buffer Memory: 1Mbit | |
| Packet Forwarding Rate:1.2Mpps | |
| MAC Address Table: 2K | |
| Installation | DIN rail |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP40 aluminum housing |
| LED Indicator | Power: Red |
| Fiber: Green | |
| Ethernet: Yellow | |
| Power Input | 48 to 57V DC redundant power |
| Lightning protection | 6KV |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; |
| IEEE802.3x; | |
| Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤10meter) | |
| Certification | CE FCC Rohs compliance |
| Dimensions (W x D x H) | 118 x 86 x 33.5 mm |
| Weight | Product weight 0.3KG; Packing weight: 0.4KG |
| Working Environment | Working temperature: -40～85℃ ; Storage temperature: -50～90℃ |
| Relative Humidity: 0%~95 %( no condensation) |
- Bảo hành: 24 tháng.
