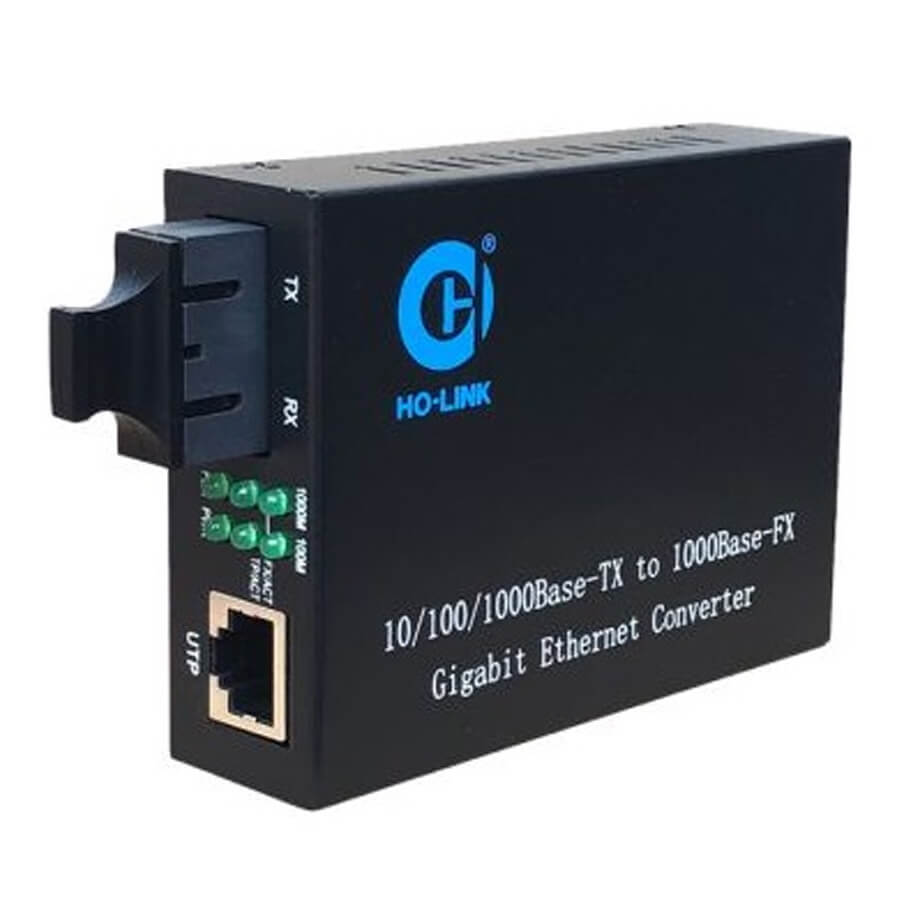

Bộ chuyển đổi quang điện 10/100/1000Mbps Single Fiber HO-LINK HL-2211S-20
- Bước sóng: 1310nm/1550nm.
- Cổng quang: SC - 20km - Duplex.
- Tốc độ RJ45: 10/100/1000Mbps.
- Bộ gồm 1 chiếc, 1 Adapter 5V-2A.
Thông số kỹ thuật
| Standards | IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Fiber port | Data Rate:1000M Connector:SC as default,FC/ST (optional) Distance: Multi-mode Fiber 2km Single-mode Fiber 20km Wavelength:1310nm Tx power ≥ -10dBm Rx sensitivity ≥ -23dBm |
| Copper port | Data Rate:10/100/1000M Connector: RJ45 Category-5 twisted pairs: 100m |
| Performance | Conversion Means: Media conversion Delay Time: <10us Back Bandwidth: 4Gbps MAC Address Size: 16Kbit Packet Buffer Size: 1Mbit |
| LED indicators | PWR (power supply) FX LINK/ACT (optical link action) TP LINK/ACT (twisted pair packet forwarding) TP LINK1000 (twisted pair link1000M) TP LINK100 (twisted pair link 100M) |
| Electrical&Mechanical | Input Power Requirements: DC5V@1A Power Adapter: AC100V~240V Power Consumption: <5W Dimensions: 9.4*7*2.6cm Packing: 26.5*15.7*5.8cm Weight: 0.4kg(External power supply) |
| Environmental | Operating Temperature: -20ºC~+75ºC Storage Temperature: -40ºC~+85ºC Relative Humidity: 5%~90%(no-condensing) MTBF: >100,000 hours |
- Bảo hành: 24 tháng.
