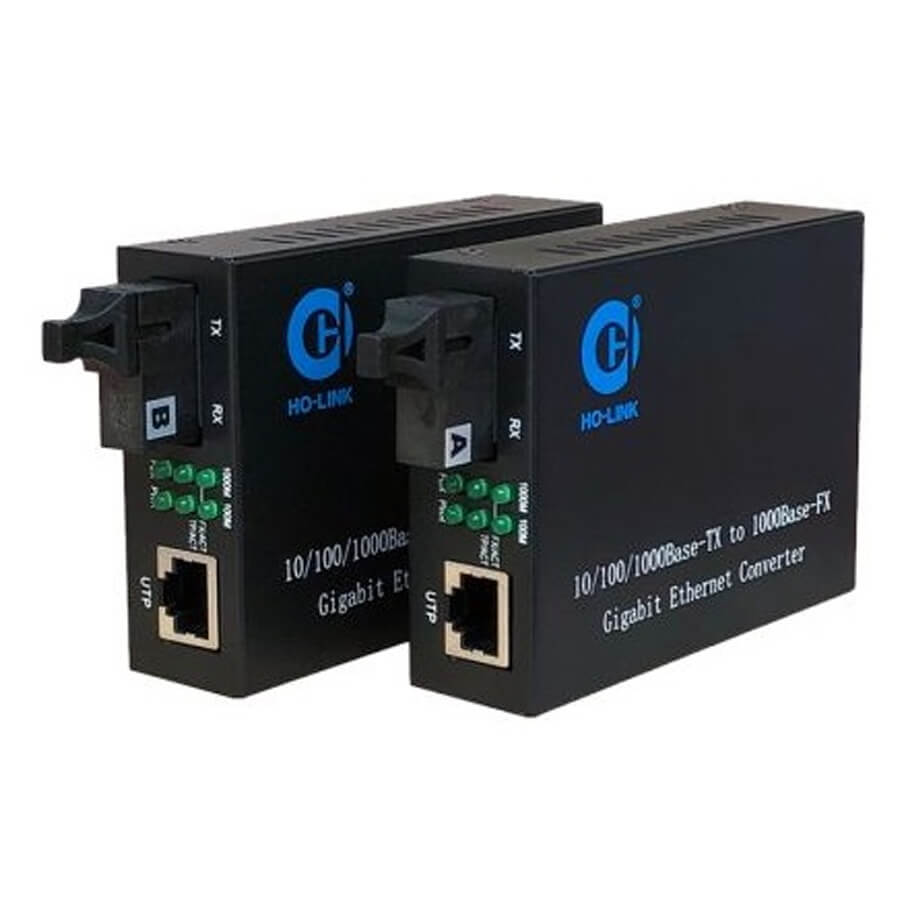

Bộ chuyển đổi quang điện 10/100/1000Mbps HO-LINK HL-2111S-20A/B
- Bước sóng: 1310nm/1550nm.
- Cổng quang: SC- 20km - Simplex.
- Tốc độ RJ45: 10/100/1000Mbps.
- Bộ gồm 2 chiếc, 2 Adapter.
Thông số kỹ thuật
| Standards | IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Fiber port | Data Rate: 1000M Connector: SC as default,FC/ST (optional) Distance: - Single-mode Fiber 20km; - Wavelength:1310nm/1550nm; Tx power ≥ -10dBm Rx sensitivity ≥ -23dBm |
| Copper port | Data Rate: 10/100/1000M Connector: RJ45 Category-5 twisted pairs: 100m |
| Performance | Conversion Means: Media conversion Delay time: <10us Back Bandwidth: 4Gbps MAC address Size: 16Kbit Packet Buffer Size: 1Mbit |
| LED indicators | PWR (power supply) FX LINK/ACT (optical link/action) TP LINK/ACT (twisted pairs link/action) TP 100 (100M transmission rate of twisted pairs) FX 100 (100M transmission rate of optical fiber) |
| Electrical&Mechanical | Input power Requirements: DC5V@1A Power Adapter: AC100V~240V Power consumption: <5W Dimensions :9.4*7*2.6cm Packing: 26.5*15.7*5.8cm Weight: 0.4kg (External power supply) |
| Environmental | Operating Temperature: -20ºC~+75ºC Storage Temperature: -40ºC~+85ºC Relative Humidity: 5%~90%(no-condensing) MTBF: >100,000 hours |
- Bảo hành: 24 tháng.
