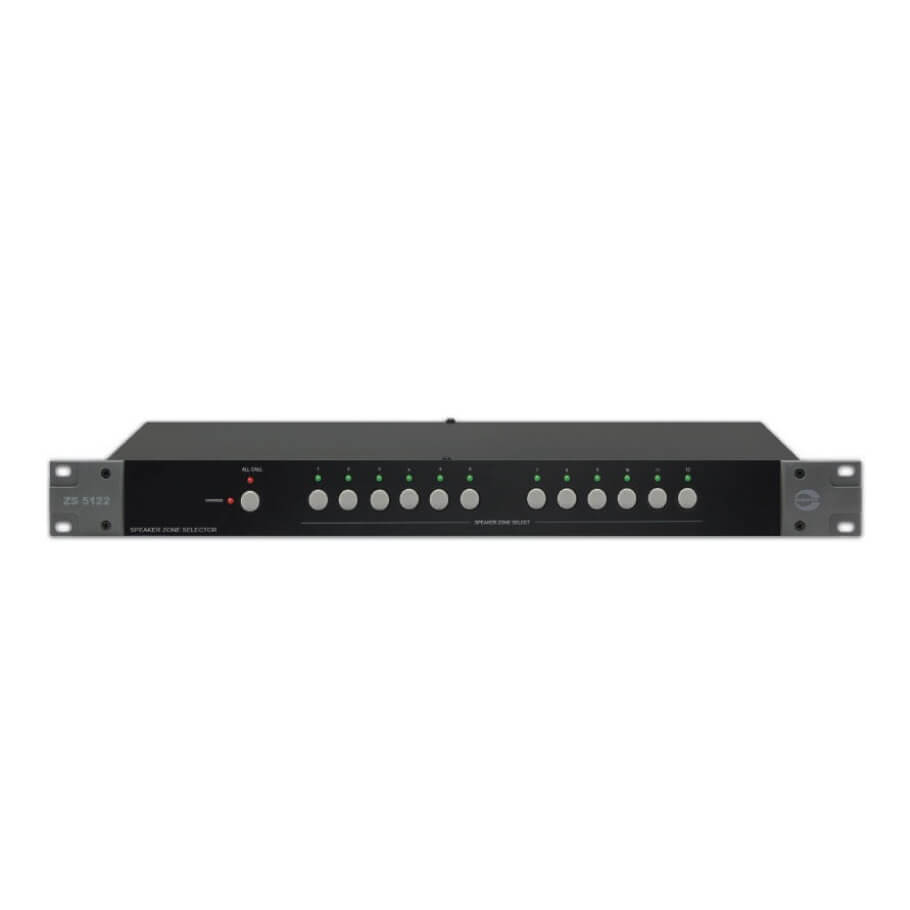

Bộ chọn 12 vùng AMPERES ZS5122
- Tích hợp tính năng Fail Safe.
- Có thể chọn thứ tự từ 1 đến 12 vùng hoặc 12 vùng cùng 1 lúc (ALL CALL).
- Có thể kết nối nhiều thiết bị để mở rộng thêm nhiều vùng.
- Có thể chọn vùng từ xa qua Micro thông báo, hoặc chọn vùng tại chỗ bằng panel phía trước.
Specifications
| Model | ZS5122 |
| Operating voltage | 24V DC via PS9400 adaptor |
| Power consumption (idle) | 6.25W |
| Power consumption (All Call) | 0.96W |
| Current consumption (idle) | 0.26A |
| Current consumption (All Call) | 0.04A |
| Max load / channel | 500W at 100V line |
| Number of zones | 12 |
| Amplifier inputs | 12 |
| Zone selection | Front panel switch and remote |
| Cascade limitation | 16 |
| Remote triggering | -ve triggered (common ground) |
| Indicators | Individual zone switch, Priority |
| Data communication | RS485 19.2 kbps baud rate |
| Switching mode | Individual, All Call Local zone selection bypassed when remote trigger is activated |
| Dimensions (W x H x D) | 482 x 44 x 180 mm |
| Weight | 2kg |
- Bảo hành: 12 tháng.
