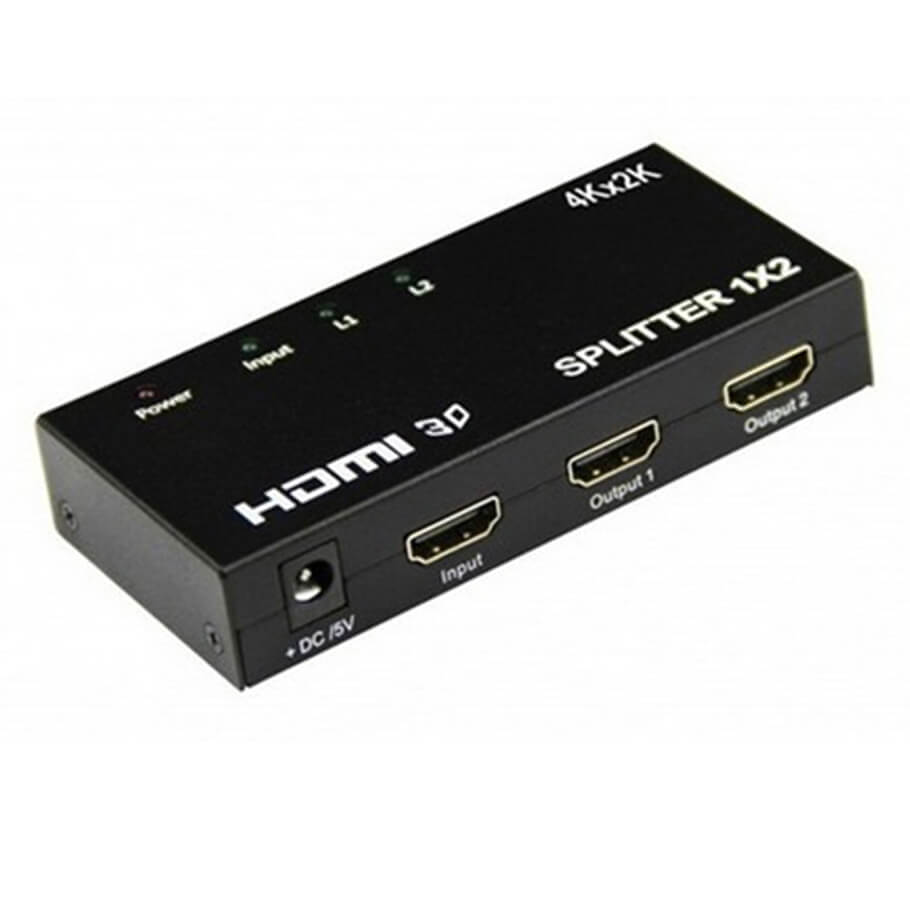

Bộ chia tín hiệu HDMI 1 vào 2
- Bộ chia tín hiệu HDMI 1 vào 2 chuẩn 1.4.
- Ngõ vào 1 cổng HDMI.
- Ngõ ra 2 cổng HDMI.
- Độ phân giải hỗ trợ: 4K x 2K (24Hz), 1080p(60Hz), 1080i, 720p, 576p, 576i...
- Âm thanh hỗ trợ: DTS-HD/Dolby-trueHD/LPCM 7.1/DTS/Dolby-AC3/DSD/HD(HBR)
- Hỗ trợ HDCP.
- Nguồn điện: 5V/2.5A
Features
- This 1x2 hdmi splitter use a single HDMI source, accessing to multiple HDMI sinks.
- It allows one HDMI device to be split easily to two HDMI compatible monitors or projectors.
- In addition, it can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
- The resolution of this hdmi splitter can be up to 3840 x 2160/ 30Hz.
- HDMI version: HDMI 1.4b.
- HDMI resolution: up to 3840 x 2160/ 30Hz.
- Support video format: 8/10/12 bit deep color.
- Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD.
- Max bandwidth: 20MHz.
- Max baud rate: 3.2Gbps.
- Input cable distance: (1080p resolution), 15m (4K resolution), 12m AWG26 - HDMI standard cable.
- Output cable distance: (1080p resolution), 25m (4K resolution), 15m AWG26 - HDMI standard cable.
- Max working current: 500mA.
- Power adapter format: input AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A.
- Dimension: 178 x 66 x 20mm
- Weight: 120g.
- Bảo hành: 12 tháng.
