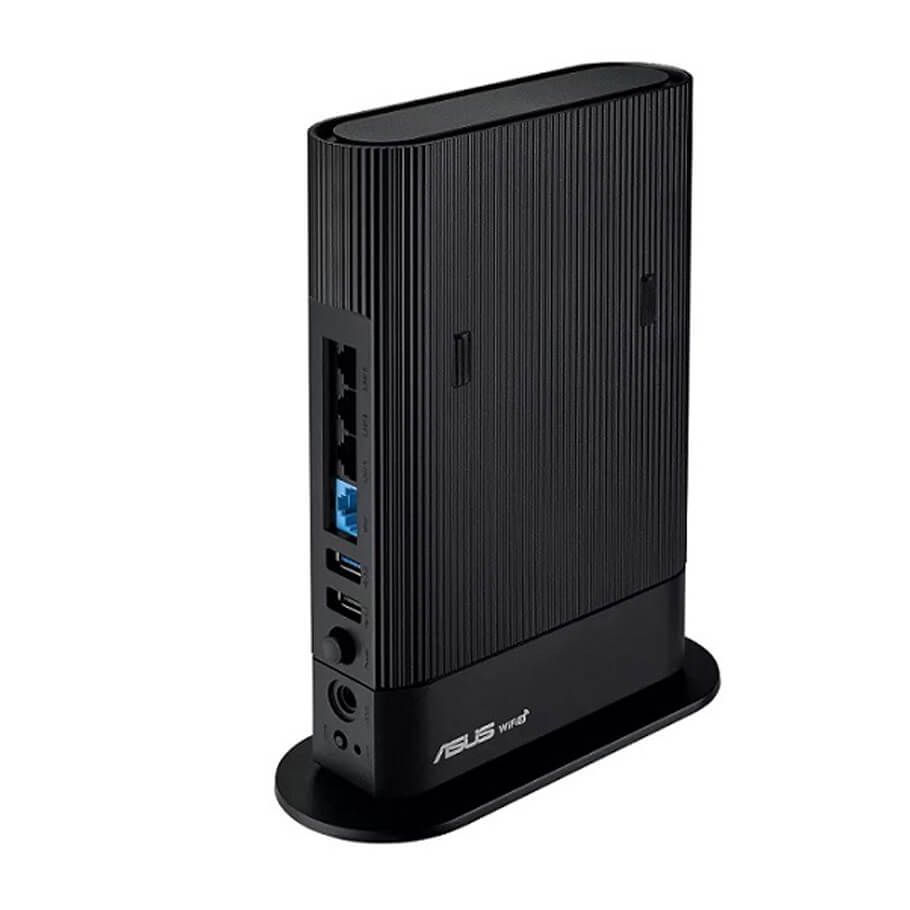

AX4200 Dual Band WiFi 6 Router ASUS RT-AX59U
- Chuẩn Wifi: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax).
- Băng tần: 2.4Ghz lên đến 574Mbps và 5Ghz lên đến 3603Mbps.
- Transmit / Receive: 2.4GHz 2x2 | 5GHz 3x3.
- Chipset: dual-core 2.0Ghz.
- Bộ nhớ: 128MB Flash and 512MB RAM.
- Công nghệ tích hợp: OFDMA (Orthogonal Frequency Division Multiple Access); Beamforming: standard-based and universal; 1024-QAM high data rate; 20/40/80/160 MHz bandwidth.
- Cổng: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3; USB 3.2 Gen 1 x 1, USB 2.0 x 1.
- Hỗ trợ Aimesh giúp kết nối và đồng bộ 1 tên Wifi duy nhất.
- Bảo mật: AiProtection; WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPS support; Let's Encrypt; DNS-over-TLS; SSH; Security Scan; Firewall.
- Thiết kế hiện đại, có thể để bàn hoặc gắn tường.
Thông số kỹ thuật
| Model | RT-AX59U |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX4200 ultimate AX performance: 574+3603 Mbps |
| WiFi Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 450 Mbps WiFi 4 (802.11n) (256QAM) : up to 600 Mbps WiFi 5 (802.11ac) : up to 2600 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps |
| Antenna | Internal antenna x 5 |
| Transmit / Receive | MIMO technology 2.4GHz 2x2 5GHz 3x3 |
| Processor | 2.0GHz quad-core 64bit processor |
| Memory | 128 MB Flash 512 MB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Operating Mode | Router (AiMesh router), AiMesh node, Access point, Repeater, Media bridge |
| I/O Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1, USB 2.0 x 1 |
| Buttons | WPS Button, Reset Button, Power Switch |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 2.5 A current |
| Weight | 476 g |
| Dimensions | 131 x 37.5 x 200 mm (WxDxH) |
| AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
| Parental Control | 'Allow you to block access to unwanted websites and apps.' Safe Browsing Customized Internet Schedule • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Cilter Rule : 64 |
| Guest Network | 'The Guest Network provides Internet connection for guests but restricts access to your local network.' • Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz x 3 Guest Network Connection Time Limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS |
| Security | AiProtection WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| AiProtection | • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS -- Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| LAN | DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
| Administration | Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
- Bảo hành: 3 năm.
