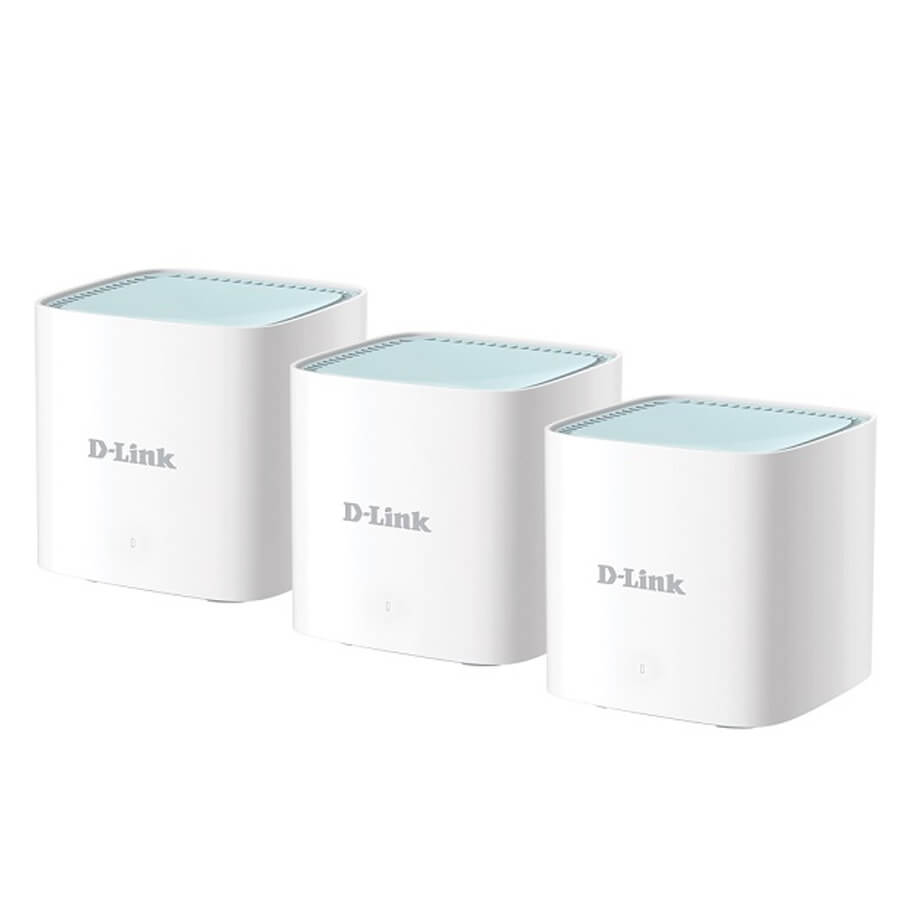

AX1500 Mesh System D-Link M15-3 (3 unit)
- Dual-band 2x2 Wi-Fi 6 delivers blazing fast connectivity with increased range and reliability
- Coverage up to 500m2 and mesh capability with other EAGLE PRO AI devices
- Up to 1201Mbps (5GHz) and 300Mbps (2.4GHz) speeds
- 1 x 10/100/1000 Gigabit Ethernet WAN port
- 1 x 10/100/1000 Gigabit Ethernet LAN ports
- Supports WPA, WPA2, and the latest WPA3 Wi-fi Security
- Clean Network Initiative compliant for security and privacy
- Voice control compatibility with Google Assistant and Amazon Alexa
- Eagle Pro AI features including
o AI Wi-Fi Optimizer
o AI Mesh Optimizer
o AI Traffic Optimizer
o AI Parental Control
o AI Assistant
Specifications
| Model | M15-3 |
| General | |
| Device Interfaces | 1 x Gigabit Ethernet LAN port, 1 x Gigabit Ethernet WAN port, 1 x WPS button, 1 x power connector |
| LED | Power/ Status |
| Antenna Type | 2 x 2.4 GHz WLAN Internal Antenna, 2 x 5 GHz WLAN Internal Antenna |
| Wi-Fi Data Rate | 2.4 GHz Up to 300 Mbps, 5 GHz Up to 1201 Mbps |
| Wireless IEEE Standard | IEEE 802.11ax/ac/n/g/b/k/v/a/h, IEEE 802.3u/ab |
| WAN Interface | Static IP, Dynamic IP, PPPoE, PPTP, L2TP, DS-Lite, Support 802.1p & 802.1q |
| Functionality | |
| Security Protocol | WPA/WPA2 -Personal, WPA2-Personal, WPA2/WPA3 – Personal (WPS not supported), WPA3 Only (WPS Not supported) |
| Firewall | DoS Stateful Packet Inspection Anti-spoofing Checking IP/MAC Address Filtering 1 x DMZ |
| Mesh | D-Link Wi-Fi Mesh |
| Coverage | 500 sqm / 5400 sq. ft. |
| Device Management | D-Link Ai app (iOS and Android), Web UI |
| Physical | |
| Hardware Version | A1 |
| Dimensions | 92 x 92 x 93 mm |
| Weight | 200 g |
| Power Input | 12V, 1 A |
| Maximum Operating Voltage | 12V |
| Maximum Power Consumption | 12W |
| Operating Temperature | 0 to 40°C (32 to 104 °F) |
| Storage Temperature | -20 to 65°C (-4 to 149 °F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Certifications | CE, FCC |
| Software | |
| EAGLE PRO AI | IOS Android |
| Voice Control | Alexa Voice Control Google Assistant Voice Control |
- Bảo hành: 24 tháng.
