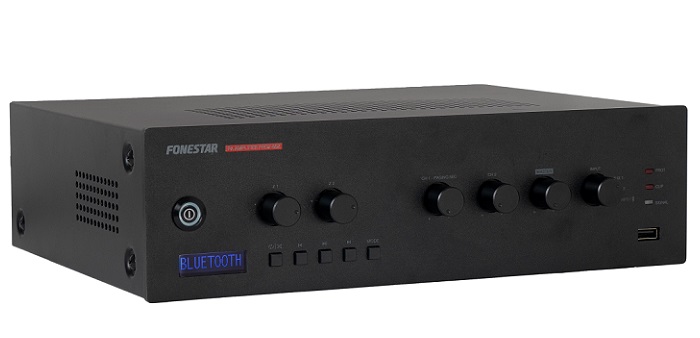

Amply Mixer 60W Fonestar PROX-60Z
- 2 vùng đầu ra với điều khiển âm lượng và tắt độc lập.
- Tích hợp sẵn Bluetooth/USB/FM.
- Công suất ngõ ra: 60W.
- Đáp tuyến tần số: 60-20.000 Hz (-10dB).
- Điều chỉnh âm sắc Bass/Treble.
- Độ méo tiếng: <1% ở 1 kHz.
- Trở kháng: 4Ω và 100V euroblock.
- Nguồn điện: 230VAC.
- Kích thước: 286 x 84 x 225 mm.
Thông số kỹ thuật
| Model | PROX-60Z |
| Characteristics | Public address amplifier Bluetooth/USB/FM player. Microphone inputs with mix, gain and priority level control. Input priorities by signal level. tone controls. 100 V and 4 Ω outputs. 2 output zones with volume control and Off. |
| Power | 60W RMS |
| Answer | 60-20,000Hz (-10dB) |
| Distortion | THD+N: < 1% @ 1kHz |
| Signal/noise ratio | >77dB |
| Protections | Over-current, DC and short-circuit at the output |
| Tickets | CH 1 mic/line balanced with 48V Phantom. Combo connector (XLR + 6.3mm) and euroblock. CH 2 mic/line balanced with 48V Phantom. Euro block connector. Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω Line signal level: 250 mV RMS (-12 dBV) / 100k Ω 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω 1 emergency. Euro block connector. Speaker line signal level 100 V 1 Mute (Emergency Priority) by contact closure. euroblock connector |
| Departures | 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV) 100 V or 4 Ω speaker output, or 2 100 V speaker zones with 5-position volume selector and OFF. Screw terminal connector |
| Impedance | 4 Ω and 100 V line (166 Ω) |
| Functions | Input priority (Voice over VOX inputs): 100 V Emergency input with maximum priority, attenuates the rest of the inputs Mute by contact closure, attenuates all inputs except the 100 V Emergency input. Channel 1 with priority over other inputs , selectable level. Channel 2 with priority over auxiliary inputs, selectable level Other functions: Indicator lights for power on, protection, signal peak and output signal Induction cooling without fan |
| Player | Bluetooth/USB/FM player for background music playback Supported MP3 and WAV files Maximum USB memory capacity 64 GB Autoplay, starts playback automatically when turned on Memory of last selected mode Memory of playback mode (random, repeat) |
| Controls | Microphone volume Mic/line/phantom selector Master volume Auxiliary or player input selector Zone volume Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz) Microphone gain Priority activation signal level (VOX ) |
| Temperature | Operation: 0º ~ 40ºC |
| Maximum humidity | 95% |
| Feeding | 230/115 V AC 50-60 Hz, 200 W Fuse AC 230 V 1.5 A / 115 V 3.15A |
| Measures | 320 x 94 x 281 mm depth |
| Weight | 5kg |
- Bảo hành: 24 tháng.
