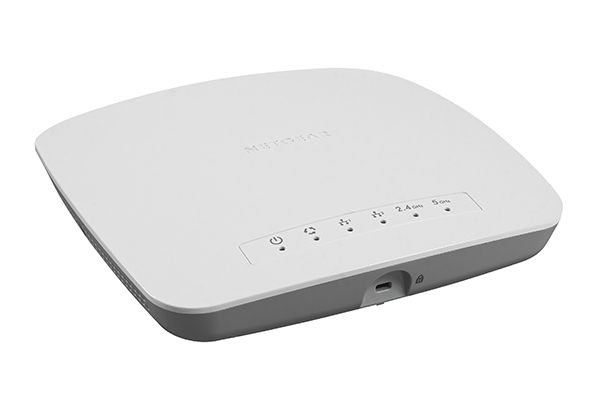

AC1300 Managed Smart Cloud Wireless Access Point NETGEAR WAC510
- Standard: 802.11 a/b/g/n/ac (Wave 2).
- Frequency: 2.4GHz and 5GHz.
- Wireless Mode (Transmit x Receive): 802.11ac (2x2), Concurrent.
- Multi-User MIMO: Yes.
- Maximum Theoretical Throughput: 1.3Gbps.
- Maximum Throughput (2.4/5GHz): 400/867Mbps (2.4/5GHz).
- Max # of Concurrent Clients: 200.
- Ethernet Ports: 2 x 10/100/1000Mbps (1 x PoE IEEE 802.3af).
- Power Consumptions (W) Max: 9.3 Watts (12VDC/2.5A not included).
- Ceiling/Wall Mounting: Yes.
- Centralized Management: Insight App, Standalone.
- Router Mode/Repeater: Yes/ Yes.
- Bridge point-to-point/multi-point: Yes.
- Wall/ceiling mount kit.
- Installation guide.
Đặc tính kỹ thuật
| Model | WAC510 |
| Features | |
| Interface | Two (WAN/LAN) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink™ (Auto MDI-X) with WAN port supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE) |
| Frequency | 2.4GHz and 5GHz |
| Wireless Mode (Transmit x Receive) | 802.11ac (2x2) |
| 802.11ac Wave | Wave 2 |
| Multi-User MIMO | Yes |
| Maximum Theoretical Throughput | 1.3Gbps AC1300 |
| Maximum Throughput (2.4/5GHz) | 400/867Mbps (2.4/5GHz) |
| Power over Ethernet (PoE) IEEE 802.3af | Yes |
| PoE Power Consumption | 9.3 Watts |
| Centralized Management | Insight App, Standalone |
| SNMP | v1, v2c |
| Secure SSH | Yes |
| Secure Socket Layer (SSL) | Yes |
| Router Mode | Yes |
| Wireless Distribution System (WDS) | |
| Repeater | Yes |
| Bridge point-to-point/multi-point | Yes |
| Simultaneous bridge & wireless client association | Yes |
| Separate bridge and access point | Yes |
| Antenna | Internal 3/4dBi (2.4/5GHz) |
| Security | WiFi Protected Access (WPA/WPA2), 802.11i |
| MAC address filtering with access control | |
| Rogue AP detection | |
| Block SSID Broadcast | |
| VLAN Support | |
| Guest Network/Captive Portal | |
| Easy ceiling mounting/wall mouting | |
| Bandwidth management | |
| Bandsteering | |
| Standards | IEEE 802.11ac Wave 2 standard |
| WMM Wireless Multimedia Prioritization | |
| WDS Wireless Distribution System | |
| Power over Ethernet (PoE) IEEE 802.3af | |
| Power over Ethernet (PoE) IEEE 802.3at | |
| Power adapter (not included) | 12V DC, 2.5A; plug is localized to country of sale |
| LED | Six (6) Power, Link/ACT, LAN1, LAN2, 2.4GHz, 5GHz |
| Dimensions | 197.32 x 197.32 x 37mm |
| Weight | 555.5g |
- Bảo hành: 2 năm.
