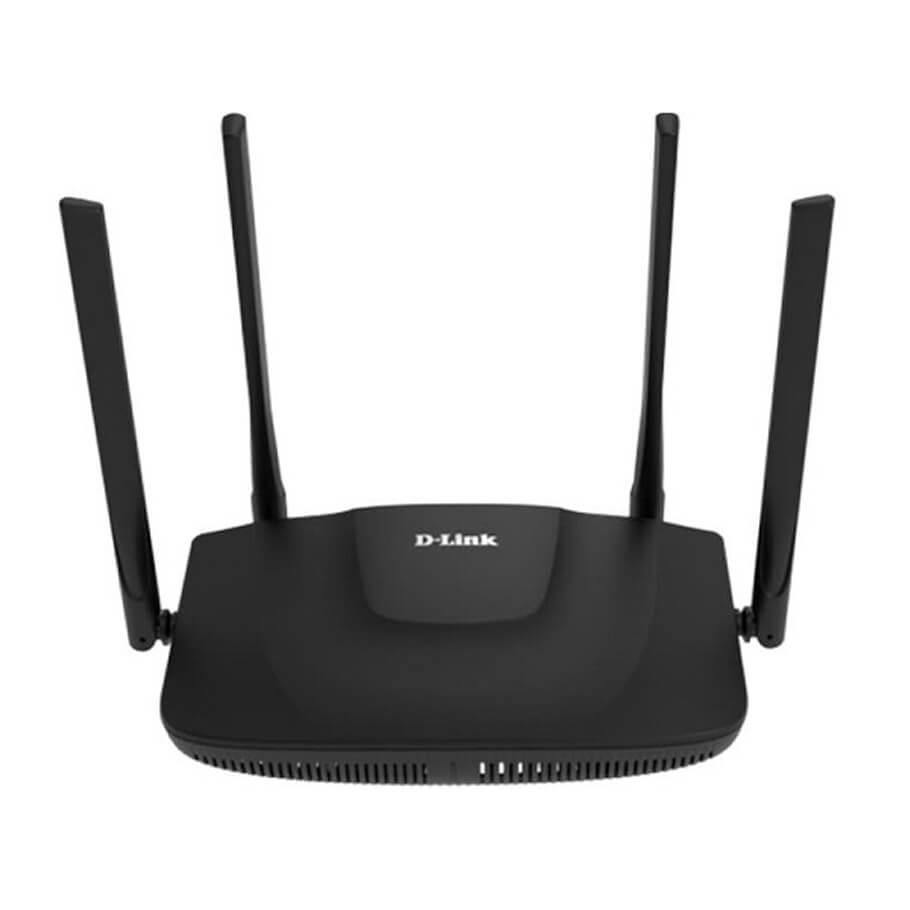

AC1200 MU-MIMO Gigabit Router D-LINK DIR-825M
- The DIR-825M AC1200 MU-MIMO Wi-Fi Gigabit Router is a powerful wireless networking solution designed for Small Offi ce/Home Offi ce (SOHO) environments. By combining high-speed 802.11ac Wi-Fi with dual-band technology and Gigabit Ethernet ports, the DIR-825M provides a seamless networking experience with a high degree of convenience and fl exibility for SOHOs. The DIR-825M’s SOHO-class advanced security features keep data safe from unwanted network intruders. This together with the increased range and reliability of Wireless AC technology, helps provide a safe and secure network for devices further into your home or offi ce
Features
- High-Speed Connectivity
+ 802.11ac MU-MIMO wireless delivers blazing fast wireless connectivity with increased range and reliability
+ 10/100/1000 Gigabit Ethernet WAN port for fast paced Internet access
+ Four 10/100/1000 Gigabit Ethernet LAN ports give you high-speed wired connectivity
+ USB 2.0 for local network sharing
+ Mesh Ready
- Secure Wireless Connection
+ The Latest 128-bit Personal/192-bit Enterprise Wi-Fi Encryption
- Flexible Bandwidth
+ Concurrent dual-band wireless for connections up to 1200 Mbps
+ QoS engine to prioritize important traffi c and deliver uninterrupted bandwidth
- Setup and Management
+ Web browser-based setup and confi guration
+ Multiple Operating Modes Router/Access Point/Repeater/WISP Repeater/Wi-Fi Client
+ Intuitive setup wizard to guide you through the confi guration process
+ Firewall and access control options to prevent attacks and restrict access to your network
Technical Specifications
| Hardware | |
| Device Interface | 1x 10/100/1000 WAN Ethernet 4x 10/100/1000 LAN Ethernet 1x USB 2.0 |
| LEDs | Power Internet 4 LAN LEDs USB 2.4GHz WLAN 5GHz WLAN WPS |
| Buttons | • POWER button to power on/power off • WPS button to set up wireless connection • RESET button to restore factory default settings |
| Antenna | • 2x 5dBi 2.4GHz External Antennas • 2x 5dBi 5GHz External Antennas |
| Power connector | • Power input connector (DC) |
| CPU frequency | • Single core 1GHz |
| Software | |
| WAN connection types | • PPPoE • PPPoE Dual Stack • Static IP • Dynamic IP • PPPoE + Static IP (PPPoE Dual Access) • PPPoE + Dynamic IP (PPPoE Dual Access) |
| Network functions | • DHCP server/client • Dynamic DNS • Static routing |
| Firewall functions | • Network Address Translation (NAT) • Stateful Packet Inspection (SPI) • URL filter • MAC filter • IP filtering • Port filtering • DMZ and Port forwarding(Virtual server) • NAPT and ALG • Denial of Service (DoS) protection |
| VPN | • PPTP/L2TP/GRE • IPSec/PPTP/L2TP pass-through |
| Management | • Firmware update via web-based interface • Saving/restoring configuration to/from file • Access settings through WEB GUI • Automatic NTP Date/time from Internet Time Server • TR-069 remote management • Logs and statistics |
| Wireless Module Parameters | |
| Standards | • IEEE 802.11 a/b/g/n/ac |
| Frequency range | • 11N: 2.4~2.4835GHz • 11AC: 5.150~5.825GHZ |
| Wireless connection security | • The Latest 128-bit Personal/192-bit Enterprise Wi-Fi Encryption • МАС filter • WPS (PBC/PIN) |
| Advanced functions | • Wireless Client Mode • Wireless AP Mode • Wireless Repeater Mode • WISP Mode • Mesh Ready • Multiple SSID’s • Wireless Schedule • FTP Server |
| Transfer rate | • HT20: up to 144 Mbps • HT40: up to 300 Mbps • VHT80: up to 867Mbps |
| Software | |
| Modulation schemes | • OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM • DSSS = DBPSK, DQPSK, CCK |
| Physical Parameters | |
| Dimensions (L x W x H) | 197 x 133.86 x 44.26 mm |
| Operating Environment | |
| Power | Output: 12V DC, 1A |
| Temperature | Operating: from 0 to 40 °C Storage: from -20 to 90 °C |
| Humidity | Operating: from 5% to 95% (non-condensing) |
