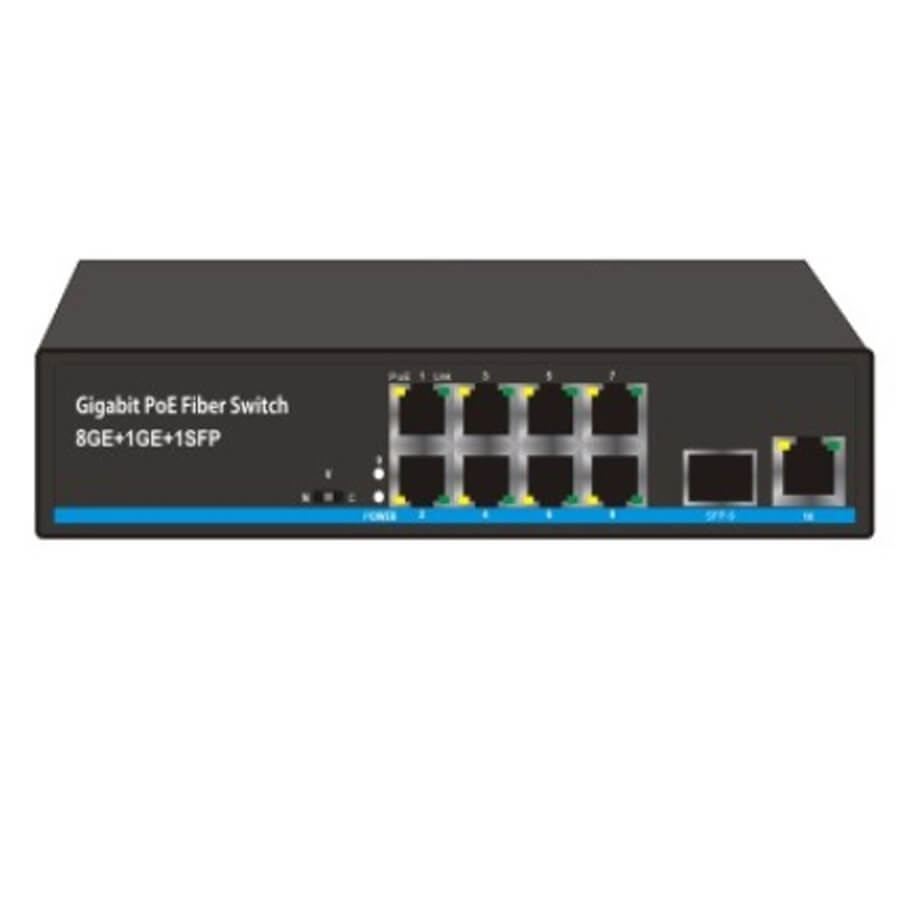

8-Port GE PoE + 1-Port Giga Uplink + 1-Port SFP Switch HASIVO S1200P-8G-1TS
- Switch mạng PoE S1200P-8G-1TS, hỗ trợ 8 cổng GE 10/100/1000M POE, 1 cổng quang SFP và 1 cổng Giga Uplink.
- Công suất: 150W.
- Băng thông: 20Gbps.
Đặc tính kỹ thuật
| Model | S1200P-8G-1TS |
| Product | Built-in 8+1 PoE Switch |
| Fixed Port | 8x10/100/1000Base-TX PoE port（Data/Power） 1x10/100/1000Base-TX uplink RJ45 port (Data) 1x1000M SFP |
| PoE Ports | 1-8 port supports PoE (optional first port outputs HiPoE-60W) |
| Function | N: (Standard normal) V: (Port isolation) P: (Flow Control mode) |
| Network Protocol | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at |
| PoE Standard | IEEE802.3af/at |
| Port Specification | 10/100/1000BaseT (X) Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 20Gbps |
| Packet Forwarding | 14.44Mpps |
| MAC Address | 2K |
| Buffer | 2.5M |
| Transmission Distance | 10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(150 meter) 1000BASE-TX: Cat6 or later UTP(150 meter) 1000BASE-SX: 62.5μm/50μm MMF(2m~550m) 1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| Power Pin | Defualt 1/2(+), 3/6(-); Optional 4/5(+)，7/8(-) |
| Single port power | Average 15.4W; MAX 30W |
| Total power/Input voltage | MAX 150W (AC100-240V 50/60HZ) |
| Watt | Standby Power Consumption: ≤8W; |
| LED Indicator | POWER: Power LED 9 optional over-power LED) Uplink: (Link LED=10/100M Link, 1000M=Gigabit Link) 9: (SFP LED） Port: (Orange=PoE LED+Green=Link LED) |
| Power Input | Built-in power AC: 100～240V 50-60Hz 1A |
| Operating Temperature/Humidity | -10～+55°C; 5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+75°C; 5%～95% RH Non coagulation |
| Product size/Packing size (LxWxH) | 210mm x 140mm x 45mm 270mm x 220mm x 70mm |
| N.W/G.W (kg) | 1.1kg/1.4kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
