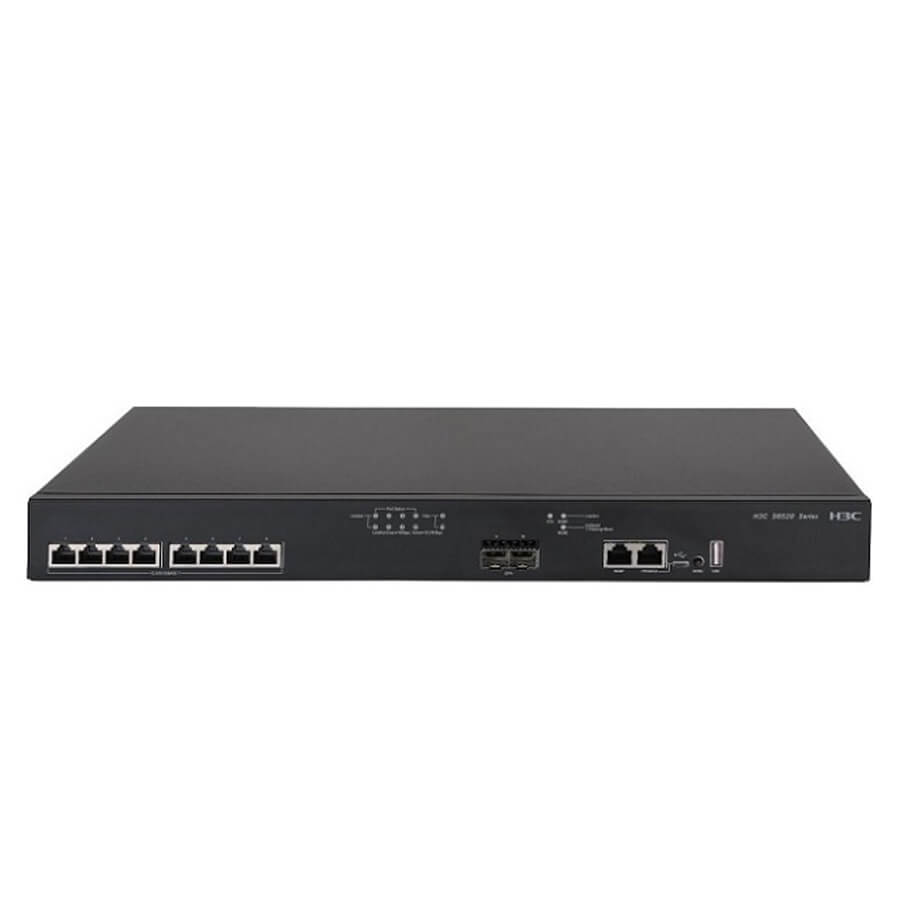

8-port GE + 2-port SFP Switch H3C LS-6520X-10XT-SI
- 8×1G/2.5G/5G/10G Base-T Multi-giga ports
- 2×1/10G SFP Plus port
- 1xConsole port
- 1xManager Ethernet, 1xUSB port
- Tốc độ chuyển mạch: 200Gbps/1.44Tbps
- Tốc độ chuyển mạch gói: 240Mpps
- Stacking bandwidth (IRF2): 160Gbps
- Maximum stacking num: 9
- CPU: Dual-Core, 1.6GHz
- Flash/SDRAM: 1GB/2GB
- Buffer: 3M
- QoS/ACL: CAR, COS, TOS, SP/WRR/SP+WRR, Traffic speed control, 802.1p priority and DSCP priority, Layer 2 to Layer 4 packet filtering, time range, rate litmitation,…
- Tính năng nâng cao và Bảo mật: SDN, VXLAN, EVPN, ISSU, MACsec, AAA authentications, 802.1X, MAC-based authentication, IP/Port/MAC binding, Port isolation, IP source guard
- MAC: 32,768, VLANs: 4094
- VxLAN: L2 switching, L3 routing
- MAX num in one link group: 32
- Link group num: 128
- Tính năng Layer 3: DHCP/DHCPv6, IPV4/IPV6 static routing RIP/ RIPng, OSPFV1/V2/V3, BGP, IS-IS, VLAN, IGMP v2/v3, IGMP Snooping v2/v3,...
- Tính năng Ethernet: Traffic control (802.3x), 1G/10G port aggregation, Static aggregation, Dynamic aggregation, Multi-chassis Link Aggregation Group (M-LAG), 802.1p and 802.1Q, STP/RSTP/MSTP/ PVST/PVST+, BPDU Guard, BPDU Drop, BPDU Blocking and Root Guard, G.8032 Ethernet ring protection switching (ERPS),...
- Quản lý và bảo trì: Configuration from CLI, Cloudnet, Web page configuration, Console, Telnet, SNMP, IMC network management system, SmartMC, Loopback detection, Virtual Cable Test, Ping and Tracert,...
- Nhiệt độ hoạt động: 0°C to 45°C
- Điện áp: AC 100 ~ 240V, 50/60 Hz; DC: -48 ~ -60V
- Kích thước: 440×360×43.6 mm
- Trọng lượng: 3.4Kg
- Bảo hành: 5 năm.
