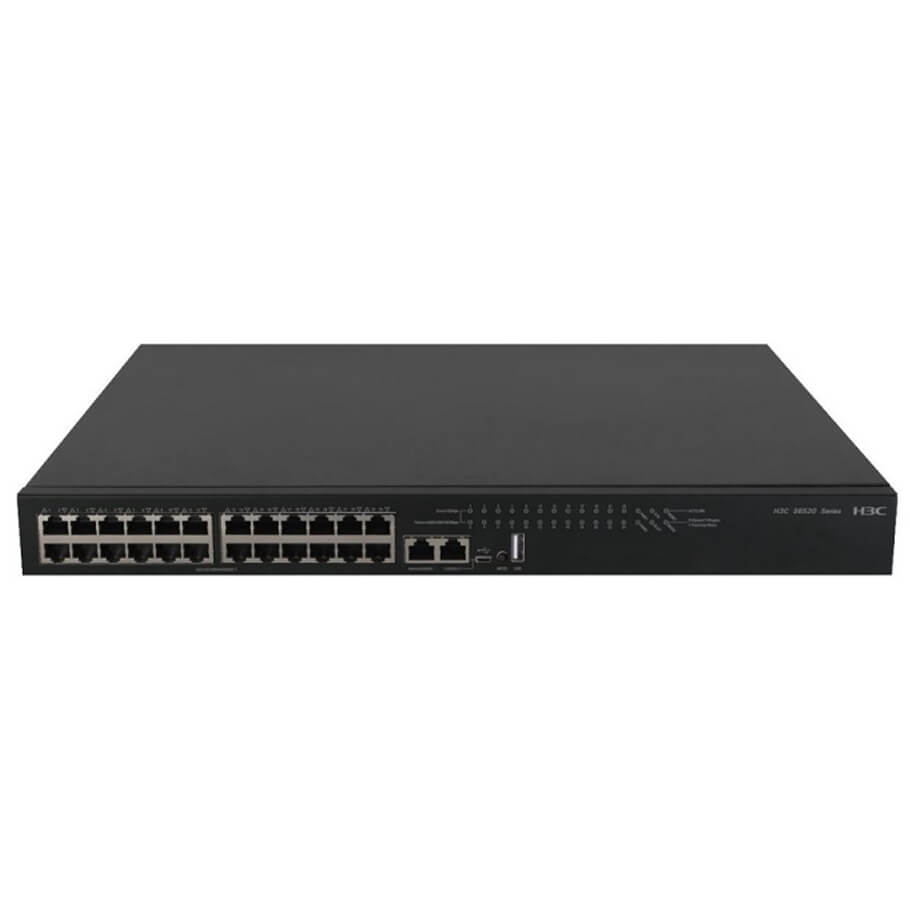

24-Port 1G/2.5G/5GBase-T L3 Ethernet Switch H3C LS-6520X-26MC-SI-GL
- 24 cổng RJ45 100M/1G/2.5G/5G
- Tốc độ chuyển mạch: 400Gbps
- Tốc độ chuyển mạch gói: 240Mpps
- Stacking bandwidth (IRF2): 160Gbps
- Maximum stacking number: 9
- QoS/ACL: CAR, COS, TOS, SP/WRR/SP+WRR, Traffic speed control, 802.1p priority and DSCP priority, Layer 2 to Layer 4 packet filtering, time range, rate litmitation,…
- Tính năng nâng cao và Bảo mật: SDN, VXLAN, EVPN, ISSU, MACsec, AAA authentications, 802.1X, MAC-based authentication, IP/Port/MAC binding, Port isolation, IP source guard,
- MAC: 32,768, VLANs: 4094
- VLAN: L2 switching, L3 routing
- Tính năng Layer 3: DHCP/DHCPv6, IPV4/IPV6 static routing RIP/ RIPng, OSPFV1/V2/V3, BGP, IS-IS, VLAN, IGMP v2/v3, IGMP Snooping v2/v3,...
- Tính năng Ethernet: Traffic control (802.3x), 1G/10G port aggregation, Static aggregation, Dynamic aggregation, Multi-chassis Link Aggregation Group (M-LAG), 802.1p and 802.1Q, STP/RSTP/MSTP/ PVST/PVST+, BPDU Guard, BPDU Drop, BPDU Blocking and Root Guard, G.8032 Ethernet ring protection switching (ERPS),...
- Quản lý và bảo trì: Configuration from CLI, Cloudnet, Web page configuration, Console, Telnet, SNMP, IMC network management system, SmartMC, Loopback detection, Virtual Cable Test, Ping and Tracert,...
Thông số kỹ thuật
| Model | LS-6520X-26MC-SI-GL |
| Port switching capacity | 400Gbps |
| Packet forwarding rate | 240Mpps |
| Box switching capacity | 1.44Tbps |
| CPU | Dual-Core, 1.6GHz |
| Flash/SDRAM | 1GB/2GB |
| Buffer | 3M |
| Dimensions (W×D×H) | 440×360×43.6 mm |
| Weight | ≤ 6.4 kg |
| Service ports | 24×100M/1G/2.5G/5G Base-T |
| Console ports | 1 (rear panel) |
| Management Ethernet ports | 1 (rear panel) |
| USB ports | 1 (rear panel) |
| Expansion slots | 1 |
| Fan Trays | 2 |
| Power Supply slots | 2 |
| Idle power consumption | AC: 32W DC: 31W |
| Max. power consumption | AC: 130W DC: 134W |
| Input voltage range | AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz DC: -48V~-60V |
| Operating temperature | 0ºC to 45ºC |
| Storage temperature | -40℃ to 70℃ |
| MTBF | 83.6 years |
- Bảo hành: 3 năm.
