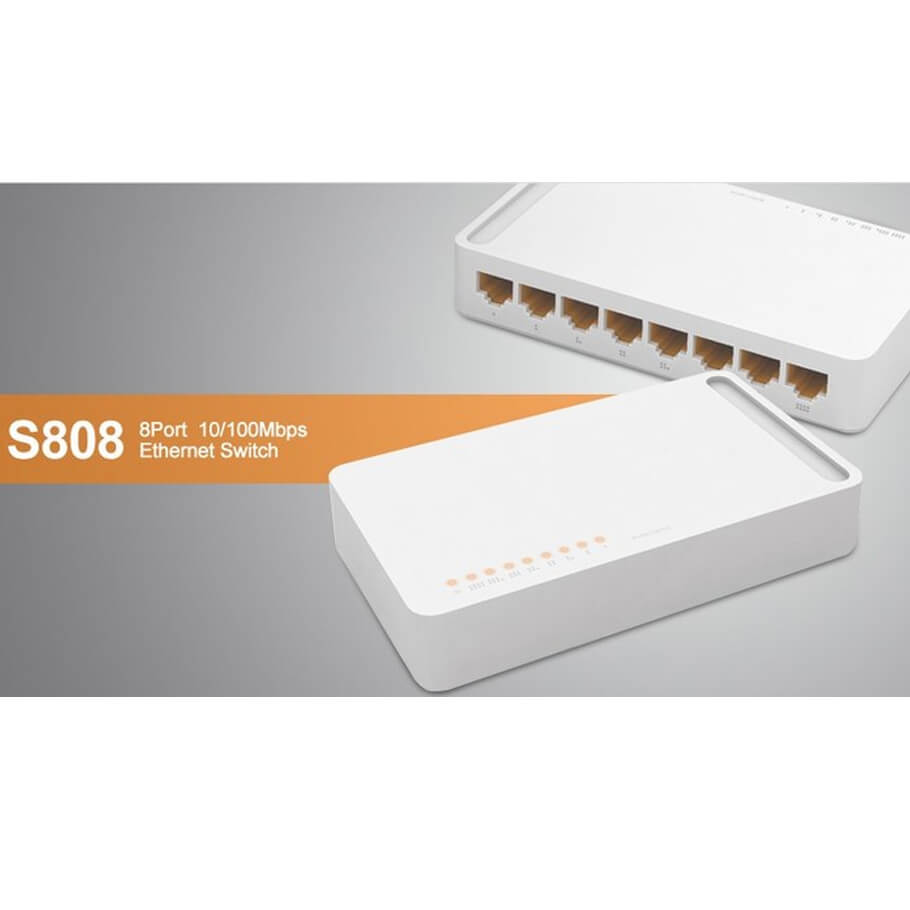

8 ports 10/100Mbps Switch TOTOLINK S808
- 8 ports 10/100Mbps, Auto negotiation (MDI/MDIX)
- Wire-speed performance, desktop size
- MAC address auto-leading and auto AGING
- Store and forward
- Supports IEEE 802.3x flow control for full duplex mode and backpressure for half-duplex mode
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power, link, activity
- Plastic case, desktop or wall-mounting design
- External power adapter supply
|
Model |
S808 - 10/100M Ethernet Switch 8port |
|
Standard |
IEEE802.3, 802.3u, 802.3x |
|
Basic function |
Wire-speed Performance |
|
|
Mac Address Auto-Learning And Auto-Aging |
|
|
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode |
|
MAC Address Table |
1K |
|
Network Media |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
100Base-Tx: UTP category 5, 5e cable (maximum 100m) |
|
|
EIA/TIA-568 1100Ω STP (maximum 100m |
|
LED |
Power, Link/Act |
|
Port |
8port 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
|
Transmission Method |
Store-and-Forward |
|
Operating Temperature |
0 ~ 55 độ C |
|
Storage |
-40°C~70°C |
|
Humidity |
5 ~ 95% non-condensing |
|
Power External DC Power adapter (linear) |
DC9V, 800mA |
- Công nghệ Hàn Quốc, lắp ráp tại Trung Quốc.
- Bảo hành: 24 tháng.
