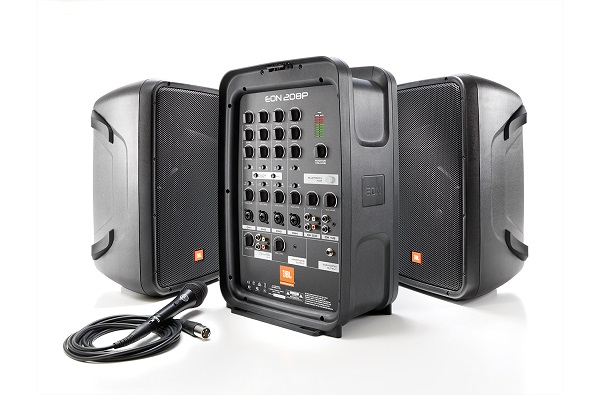

8-inch Packaged PA System With 8-Channel Intergrated Mixer JBL EON208P
- Bring legendary JBL sound quality to your stage with the EON208P all-in-one portable PA system. Featuring a convenient suitcase-style design, the EON208P makes it easy to get great sound for performances, meetings and events. The 8-channel detachable mixer provides professional connections for mics, instruments and line-level sources, while the 8-inch two-way stereo speakers deliver best-in-class audience coverage. Bluetooth connectivity allows you to stream audio from your mobile device. Thanks to 300 watts of power, you’ll have enough volume to be heard loud and clear. Plus, the compact and lightweight form factor makes transportation easy-you can carry the entire system with one hand.
- Control: Flexible input options to attach any signal source.
- Performance: 8-inch JBL woofers deliver legendary sound.
- Portability: Ergonomic design makes the EON208P easy to carry, travel, setup and store.
Specifications
| Model | EON208P |
| SYSTEM Portable 2-way full range loudspeakers with powered mixer |
|
| Maximum SPL Output | 121dB peak |
| Frequency Range(-10 dB) | 60 Hz~20 kHz |
| Frequency Response(+/-3 dB) | 70 Hz~18 kHz |
| AC Input | 100-120 V, 220-240 V 50/60 Hz |
| AMP | |
| AMP design | Class D |
| System power rating | 300 W (2x150 W stereo) |
| Output Connector | 2 x 1/4-inch TS (unbalanced) amplifier outputs |
| MIXER | |
| Input connector | 6 inputs (4 mono MIC/Line, 2 x Stereo) 1-4 are XLR/ 1/4-inch JACK COMBO connectors, XLR is Mic level in, 1/4-inch is line in, 5-6, one pair of 1/4-inch balanced TRS jacks (stereo), and one pair of RCA jacks (stereo), 7-8, one pair of 1/4-inch channels balanced TRS jacks (stereo), and a 3.5 mm stereo jack |
| Phantom power | CH1 and CH2 have phantom power control and share the same selection switch |
| Hi-Z Selection | CH3 has a Hi-Z selection switch used for Guitar signal input Monitor Out, one pair of RCA jacks (stereo) and one pair of 1/4-inch balanced TRS jacks (stereo) Headphone Out, a 3.5 mm stereo jack |
| Output Connectors | Subwoofer Out, a 1/4-inch balanced TRS jack |
| SPEAKER | |
| LF Driver | 1x JBL 203mm (8-inch) woofer |
| HF Driver | 1x 1-inch Neodymuim black Aluminum dome tweeter |
| Coverage Pattern | 100° x 60° |
| Crossover Frequency | 2 kHz |
| Crossover type | 2-way passive network 2nd order filters (12dB cutoff per octave) |
| Enclosure | Polypropylene |
| Suspension/Mounting | 36mm pole socket |
| Handles | One on top |
| Grille | Powder coated ferforated steel |
| ORDER SPECIFICATIONS | |
| Shipping Package (LxWxH) | 30.5-inch x 15.8-inch x 22.7-inch |
| Weight | 50 lbs |
| Unit Weight | 38.2 lbs |
- Bảo hành: 12 tháng.
