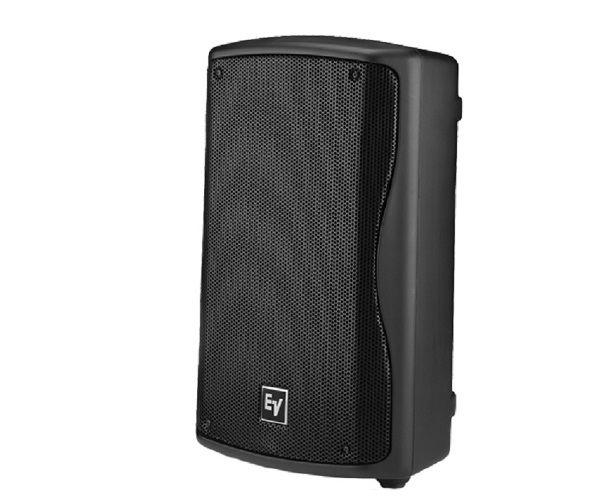

8-inch 2‑way Powered Full‑range Loudspeaker ELECTRO-VOICE ZXA1-90B-230V
- Integrated 800 watt power amplifier.
- Bi-amplified design with transducer protection.
- EV8L 8 inch high-output LF transducer.
- DH2005 1 inch exit true compression driver.
- 90° x 50° coverage pattern.
- Rotatable horn design.
- 126dB maximum SPL.
- Selectable high-pass filter for use with subwoofers.
- Line and microphone inputs.
- Integral monitor angle on enclosure.
- Built-in pole mount.
- Lightweight (< 20 lbs) with integral handle for easy carrying.
Specifications
| Freq. Response (-3dB) | 60Hz-20kHz |
| Freq. Range (-10dB) | 48Hz-20kHz |
| Max. Measured SPL | 126dB |
| Coverage (Horiz. x Vert.) | 90° x 50° |
| Power Rating | 800W |
| LF Transducer | (1) EV-8L, 204mm (8 inch) Woofer |
| HF Transducer | DH-2005, 25mm (1 inch) Exit Compression Driver |
| Crossover Frequency | 1.8kHz |
| Connectors | (1) XLR Mic Input with Gain Control, (1) XLR/TRS Combo Jack, (1) XLR Link Output |
| Enclosure Material | ABS |
| Grille | 18GA Steel with Black Powdercoat |
| Mains Requirements | 100V: 80V-110V, 0.7A⁴, 50-60Hz 120V: 95V-132V, 0.6A⁴, 50-60Hz 230V: 190V-264V, 0.4A⁴, 50-60Hz |
| Dimensions (H x W x D) | 457mm x 282mm x 264mm |
| Weight | 8.6kg |
| Color | Black |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
