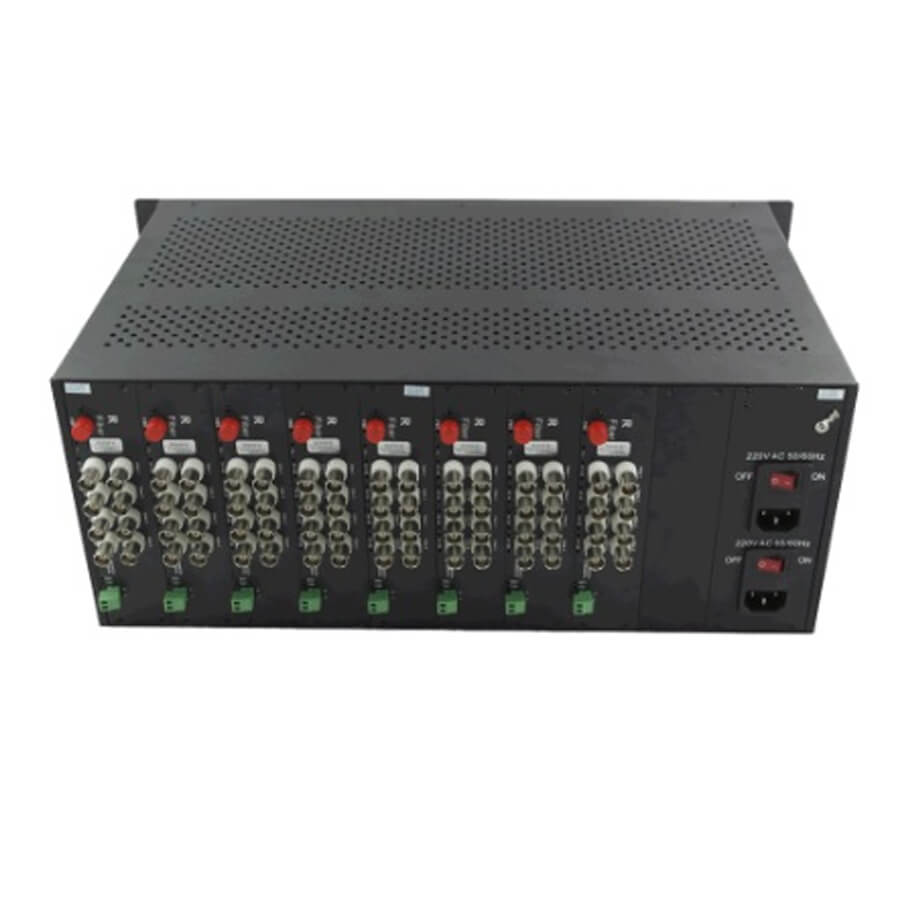

4U Rackmount Chassis for Video Converter BT-4U-D48
- 18 slot, Dual Power DC48V, for converter card.
Features
- Main and vice power equipment ensure system work smoothly.
- Function cards supports hot-plugging and each card realizes its corresponding function independently.
- Double power panel slot supports two power supply units backup for each other.
- It would enhance the reliability of the rack.
- Supports 220V/110V AC switch mode power supply (SMPS) design.
- Power supply and other parameter state indicator LED can monitor the operation condition of system.
- With stable performance, large capacity of power supply, and easy for management and maintenance.
- All of the modules installed in the chassis are hot-swap, which makes it unnecessary to power-down the chassis when replacing modules.
- Support telecommunication operation requirement completely.
Technology Specification
- Structure: 4U Rack.
- Ripple wave: ≤20mv.
- Power input: AC85~265V 50/60HZ or 48V.
- Power output: DC5V.
- Power adapter: dual power supply.
- Power: 95W.
- Operating Temperature: -10~55℃.
- Operating Humidity: 5%~95% .
- Storage Temperature: -40~70℃.
- Storage Humidity: 5%~95% no condensing.
- Dimension: 430mm x 260mm x 180mm for 4U Rack.
