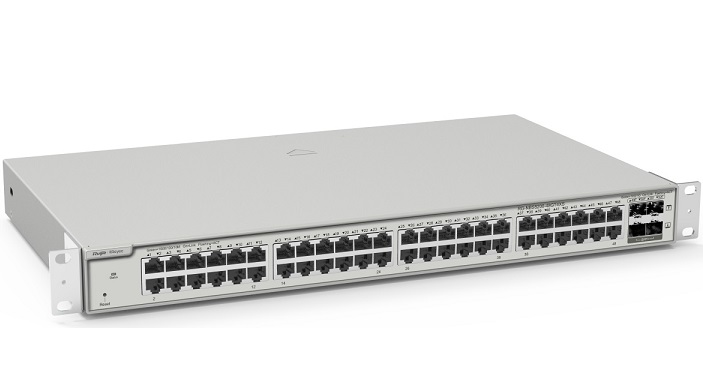

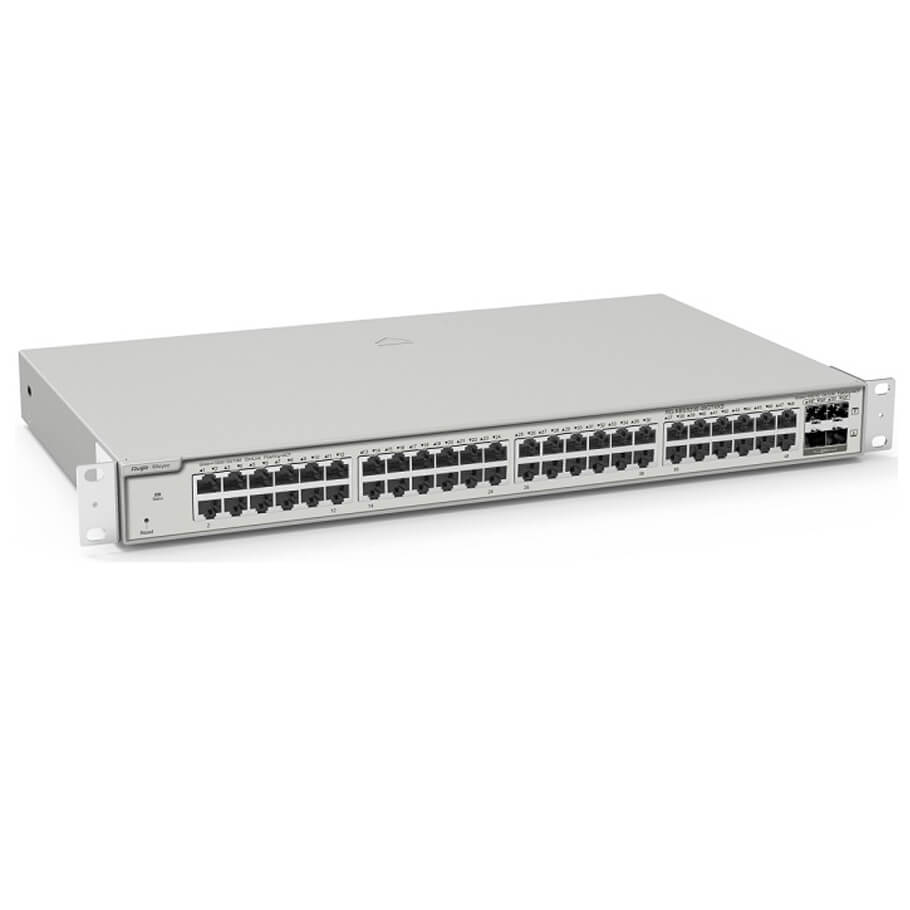

48-port Gigabit Managed Switch RUIJIE RG-NBS5200-48GT4XS
- Layer 2+ Smart Managed Switch 48 Ports.
- 48 Ports 10/100/1000BASE-T.
- 4 Ports SFP+ 10Gbps BASE-X.
- Tốc độ chuyển mạch: 336Gbps, 114Mpps.
- MAC: 16K, VLAN: 4094.
Specifications
| Model | RG-NBS5200-48GT4XS |
| Ports | 48 10/100/1000Base-T ports, 4 SFP+ uplink |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 114Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Layer 3 aggregation ports | 16 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| IP routing | Support static routing |
| ACL | IP standard ACL MAC extended ACL IP extended ACL Port ACL for Layer 2 ports (physical port / AP) |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection Hardware CPP |
| Management | Web management, Ruijie Cloud platform or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Dimensions | 440×267.5×43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ Storage temperature: -40 ℃ ~ 70 ℃ |
| Humidity | Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 90% RH |
- Bảo hành: 3 năm.
