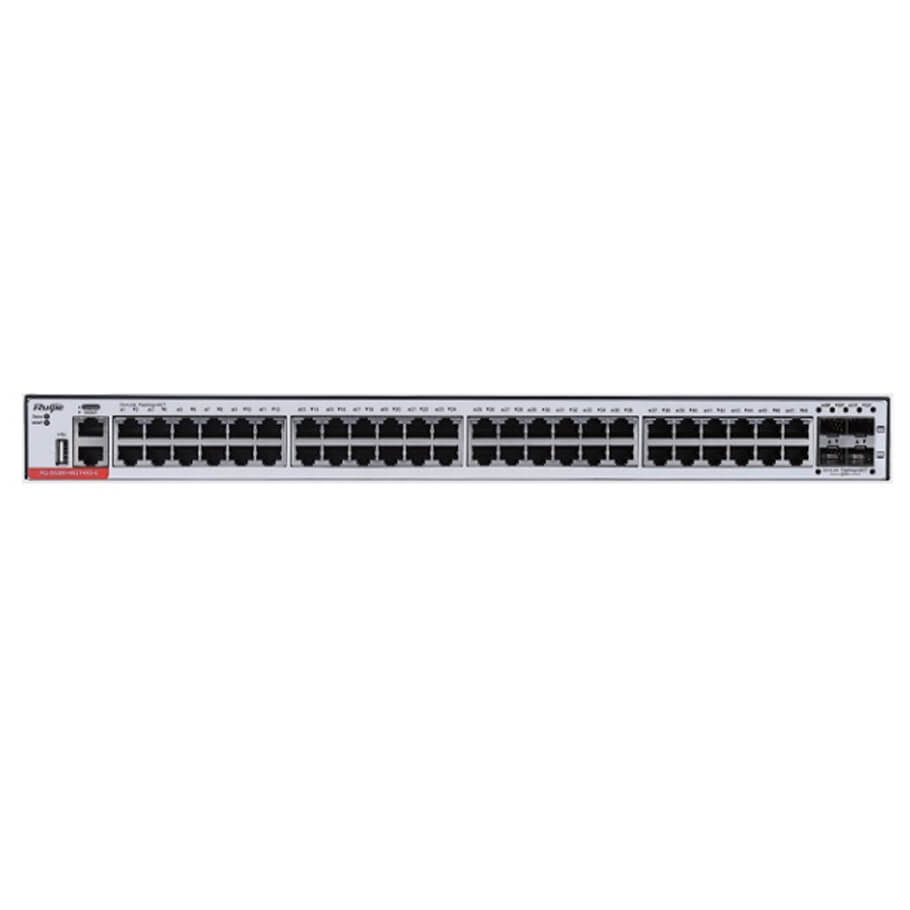

48-Port Gigabit + 4-Port 1G/10G SFP+ Switch RUIJIE RG-S5300-48GT4XS-E
- 48 x 10/100/1000M adaptive electrical ports, 4 x 1G/10G SFP+ ports.
- Switching Capacity: 432 Gbps/4.32 Tbps.
- Packet Forwarding Rate: 130.95 Mpps/166 Mpps.
- MAC Address: 32K.
- ARP Table: 2000.
- Power Consumption: ≤55W.
- Dimensions (W × D × H): 442 × 220 × 43.6 mm.
Specifications
| Basic Features | |
| Fixed Ports | 48 x 10/100/1000M adaptive electrical ports, 4 x 1G/10G SFP+ ports |
| Switching Capacity | 432 Gbps/4.32 Tbps |
| Packet Forwarding Rate | 130.95 Mpps/166 Mpps |
| MAC Address | 32K |
| ARP Table | 2000 |
| Routing Table Size (IPv4/IPv6) | 4000 (IPv4/IPv6) |
| ACL Entries | In: 3,500 Out: 1,500 |
| Physical Features | |
| Dimensions (W × D × H) | 442 mm × 220 mm × 43.6 mm |
| Rack Height | 1RU |
| MTBF (hours) | >200K |
| Power Supply | AC input: Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz |
| Fan | Single fixed power supply. Fan speed regulating and alarm function |
| Power Consumption | ≤55W |
| Temperature | Operating temperature: 0℃ to 45℃ Storage temperature: -40℃ to 70℃ |
| Relative Humidity | Operating humidity: 10% to 90%RH Storage humidity: 5% to 95%RH |
| Operating Altitude | 0m to 5,000m |
| Lightening Protection on Communication Port | 10kV (Common Mode) |
- Bảo hành: 3 năm.
