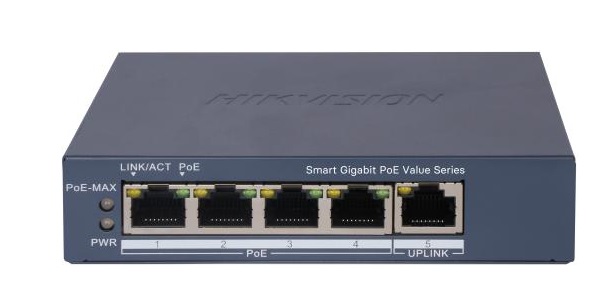

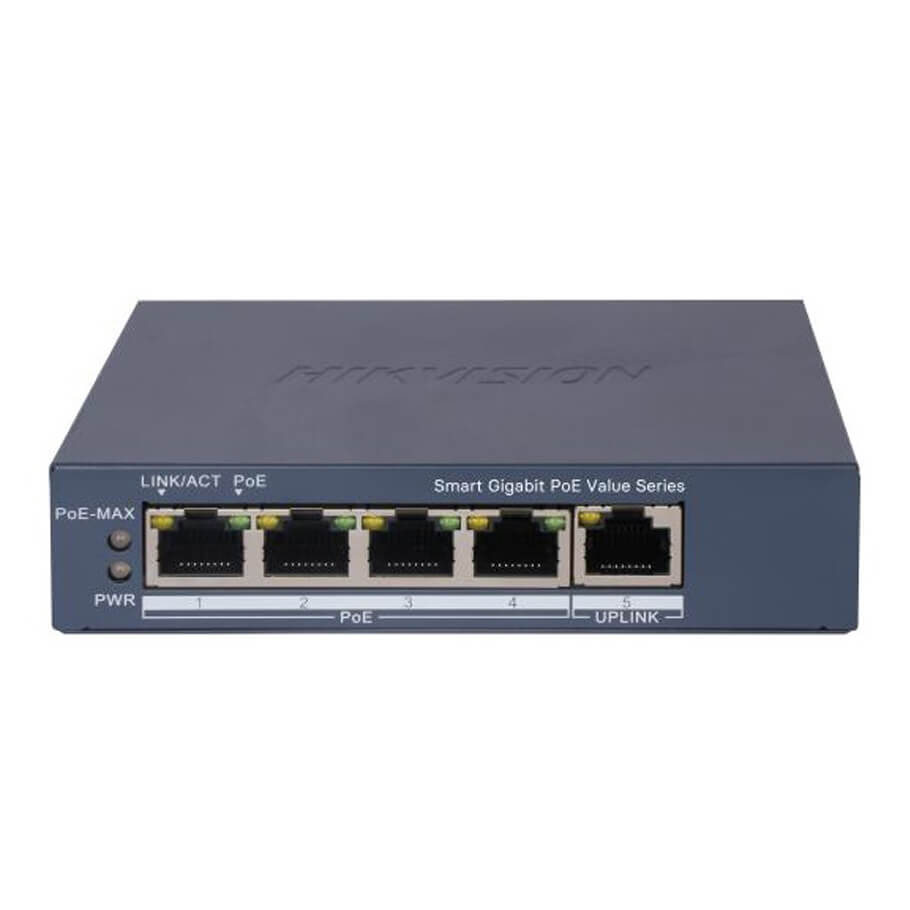

4-Port Gigabit Smart PoE Switch HIKVISION DS-3E1505P-EI/M
- 4 cổng PoE Gigabit, 1 cổng RJ45 Gigabit.
- Tổng công suất PoE: 45W.
- Hỗ trợ VLAN 802.1Q.
- Hỗ trợ tính năng PoE Watchdog để phát hiện và khởi động lại các camera không phản hồi.
- Hỗ trợ STP/RSTP để ngăn chặn vòng lặp mạng.
- Hỗ trợ phát hiện cáp để xác định vị trí sự cố.
- Truyền tải PoE với tầm xa lên đến 300 m.
- Bảo vệ chống sét lên đến 6kV.
Đặc tính kỹ thuật
| Network Parameters | |
| Ports | 4 × Gigabit PoE port, 1 × Gigabit RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| Internal Cache | 1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 45 W |
| Software Function | |
| Long Range | Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond |
| Link Aggregation | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating. |
| General | |
| Shell | Metal material |
| Weight | 0.26 kg |
| Dimensions (W × H × D) | 121.1 mm × 27.6 mm × 83.1 mm |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54 V DC, 0.92 A |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Max. Power Consumption | 50 W |
| Power Consumption in Idle | 1 W |
| Surge Protection | 6 kV |
- Bảo hành: 24 tháng.
