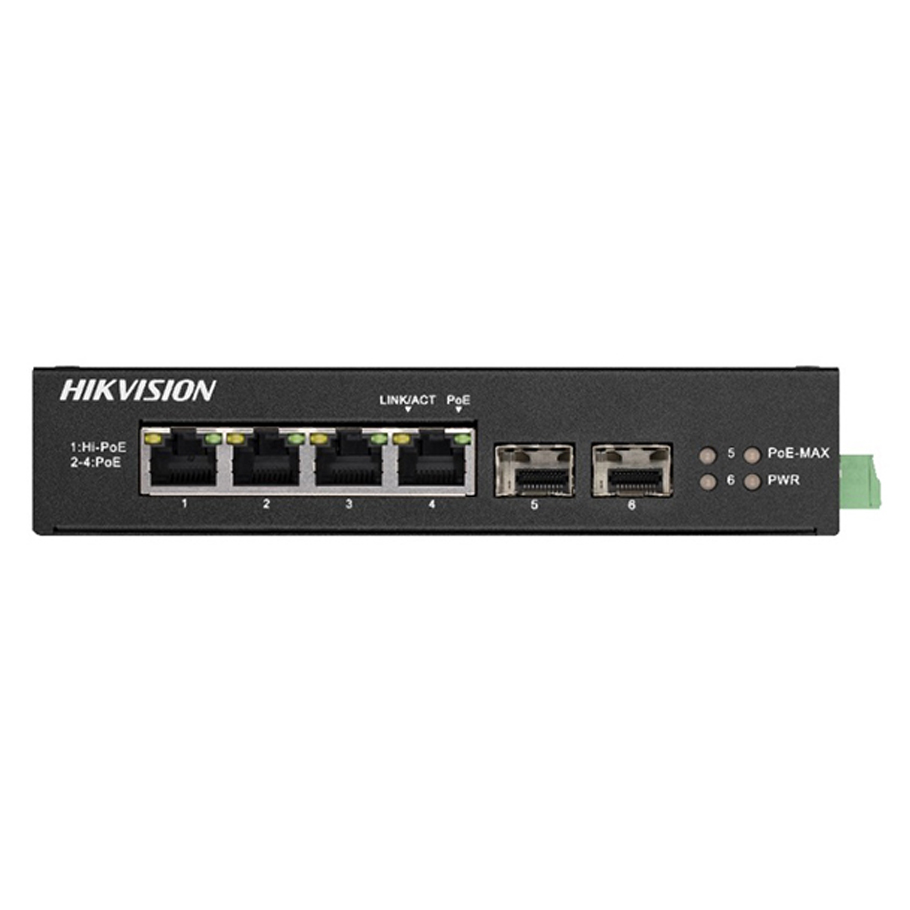

4-Port Gigabit Unmanaged Hi-PoE Switch HIKVISION DS-3T0506HP-E/HS
- DS-3T0506HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload.
- The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.
- 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- PoE output power management.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Wider temperature (-30 to 65 °C) design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Specification
| Model | DS-3T0506HP-E/HS |
| Network parameters | |
| Port number | 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode |
| Ports for long-distance transmission | Ports 3 and 4 |
| MAC address table | 4 K |
| Switching capacity | 12 Gbps |
| Packet forwarding rate | 8.928 Mpps |
| Internal cache | 1.5 Mbits |
| PoE power supply | |
| PoE standard | Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously |
| PoE port | Ports 2 to 4 |
| Hi-PoE port | Port 1 |
| Max. port power | Port 1: 60 W Ports 2 to 4: 30 W |
| PoE power budget | 60 W (0 to 40 °C) |
| Dialing function | |
| Long range | Ports 3 and 4: up to 300 m |
| Port isolation | Ports 1 to 4: port isolation mode to improve network security |
| PoE watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond |
| General | |
| Shell | Metal material, fan-free design |
| Power supply | 48 to 57 VDC, 1.35 A Max |
| Power consumption in idle | < 5 W |
| Max. power consumption | 65 W |
| Power source | 65 W |
| Dimension | 158 × 101.2 × 31.6 mm |
| Weight | 0.38 kg |
- Bảo hành: 24 tháng.
